FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Toyota
>>
2003
>>
Matrix XR 2WD L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Monitors, Trips, Drive Cycles and Readiness Codes
>>

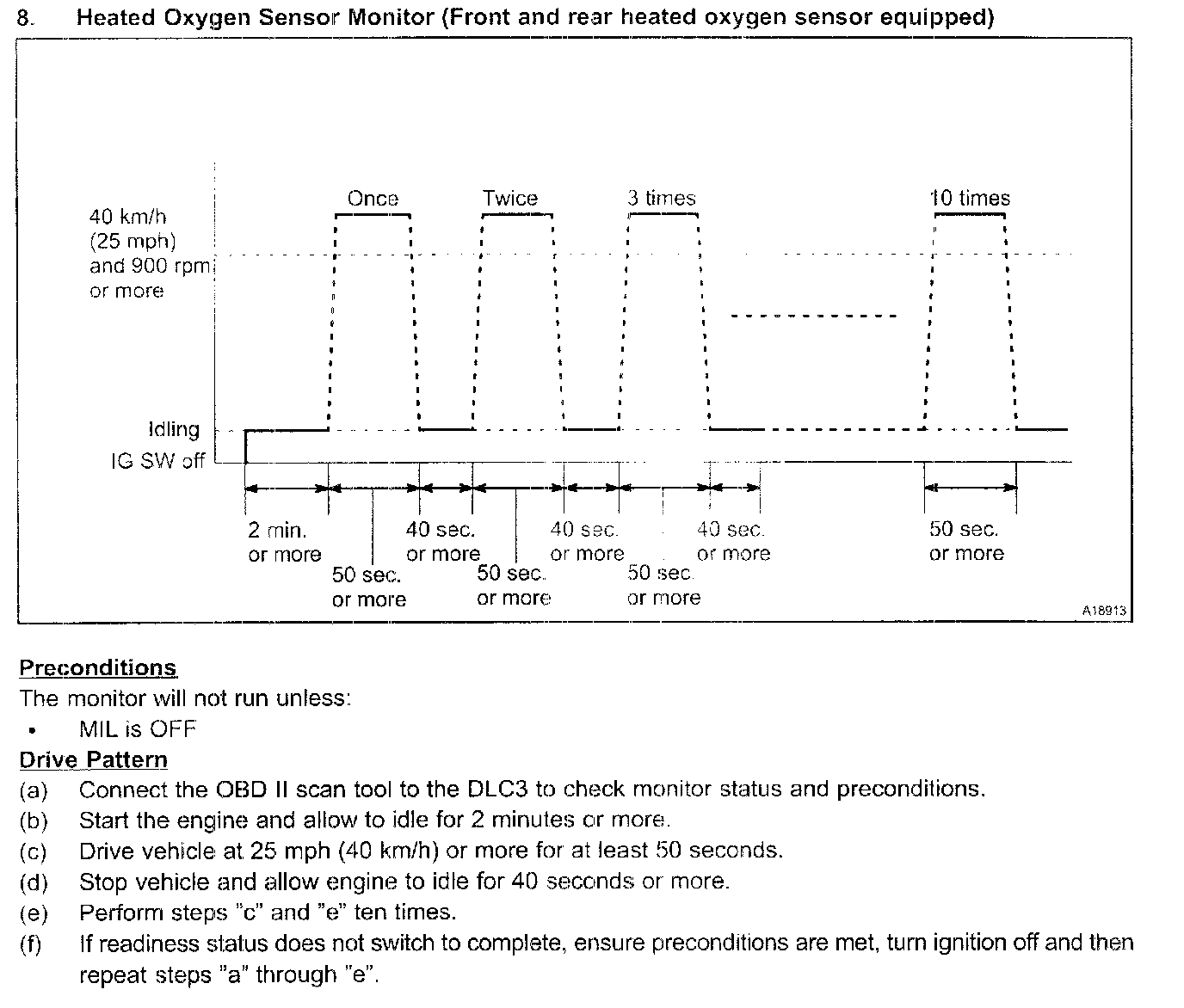

Monitor 8: HO2S Monitor (F/R HO2S if equipped)
Monitor 8: HO2S Monitor (F/R HO2S if equipped)
