Power Point Socket Assy No.2

POWER POINT SOCKET ASSY NO.2

REPLACEMENT

1. REMOVE FLOOR SHIFT SHIFT LEVER KNOB SUB-ASSY (M/T TRANSAXLE)
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CTR




3. REMOVE POWER POINT SOCKET ASSY NO.2

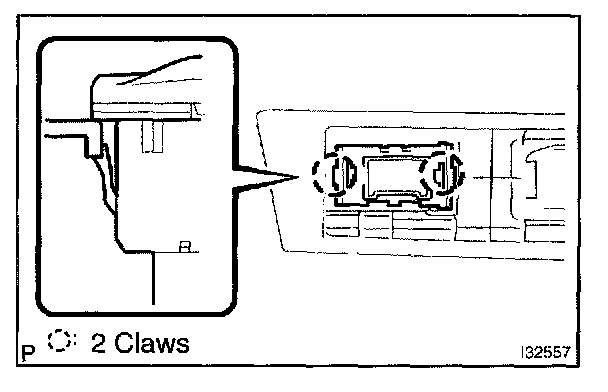

a. Release the 2 fitting claws, remove the power point socket assy No.2.
