Home >> Toyota >> 2003 >> Matrix XR 2WD L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Lighting and Horns >> Backup Lamp >> Testing and Inspection

Backup Lamp: Testing and Inspection

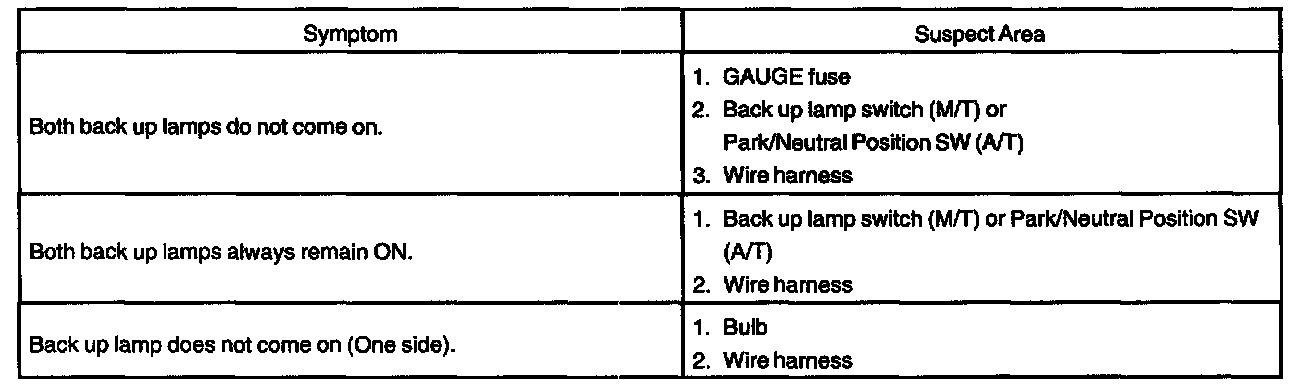

Problem Symptoms Table - Back Up Lamp:
