FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Toyota >> 2003 >> Matrix XR 2WD L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Tools and Equipment >> Manufacturer Tools

Manufacturer Tools

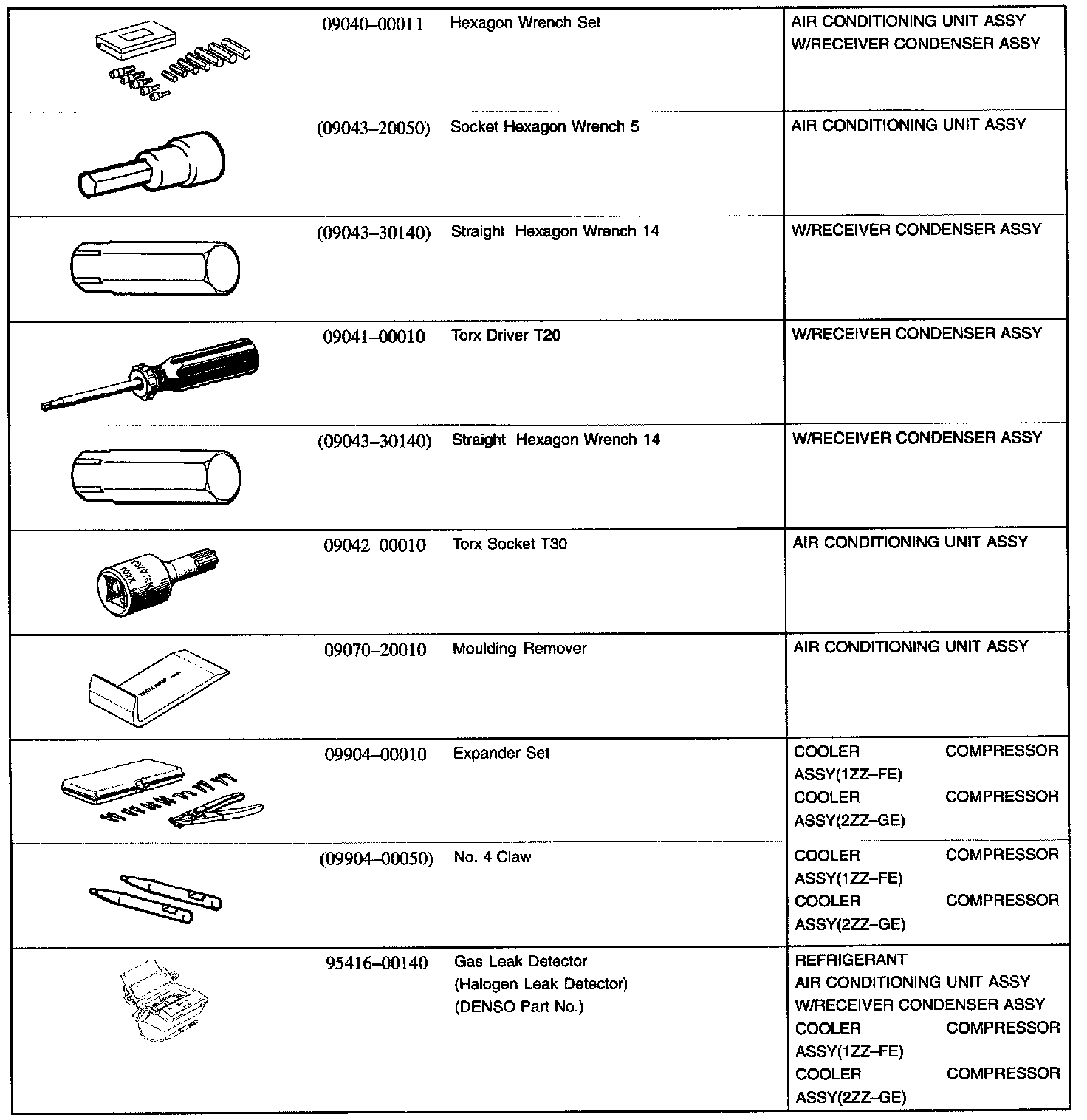

Heating And Air Conditioner - SST Part 1:

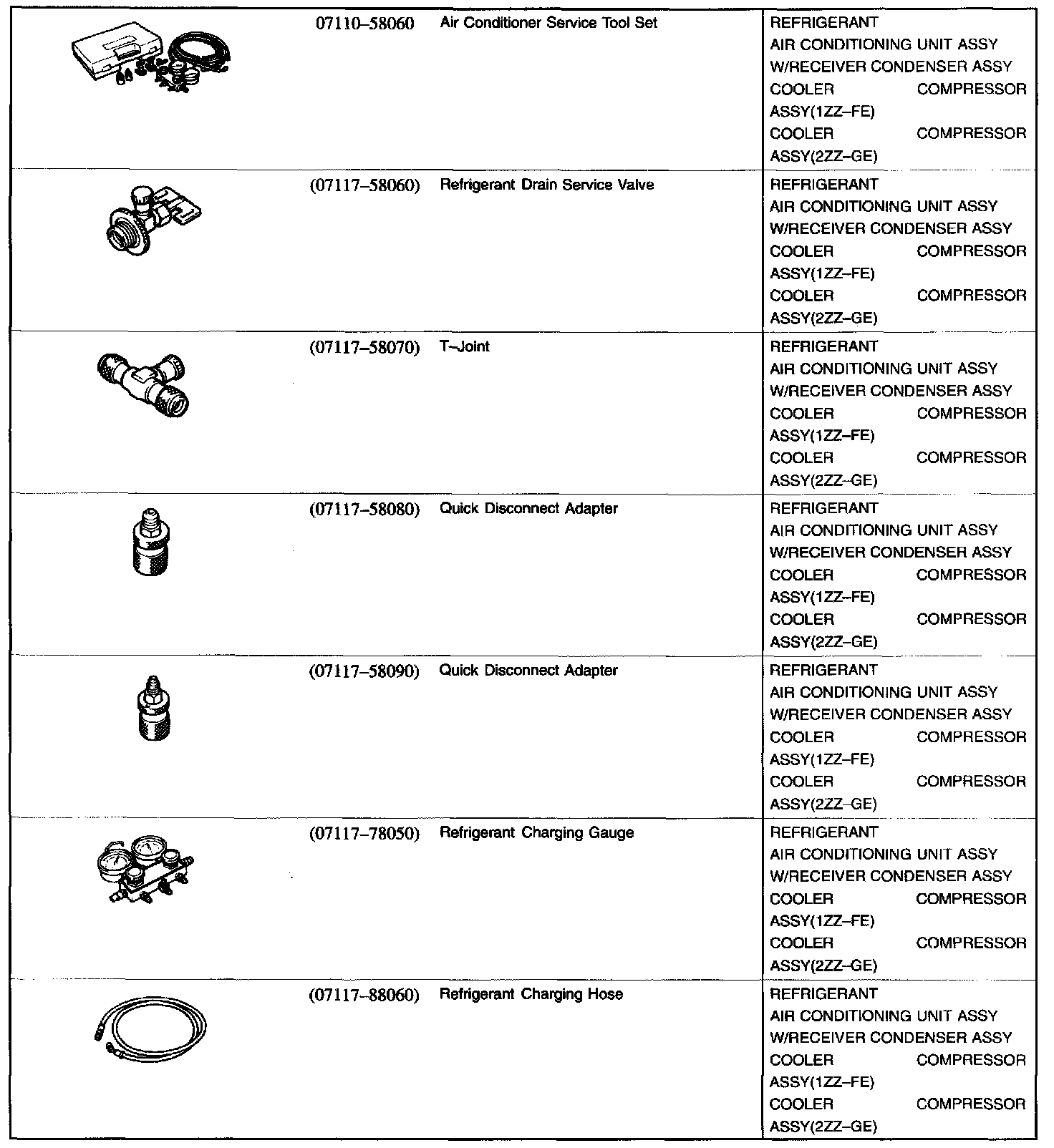

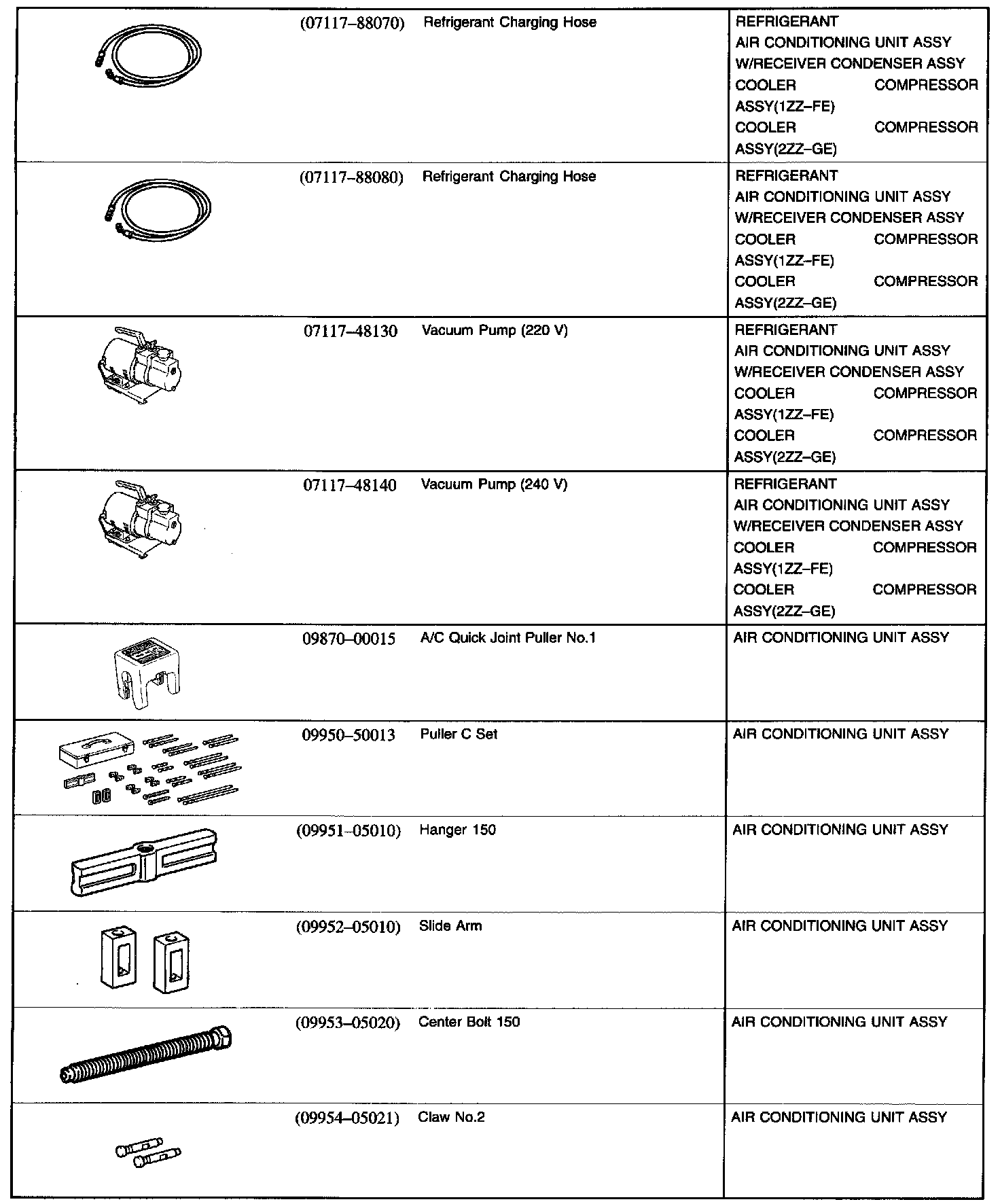

Heating And Air Conditioner - SST Part 2:

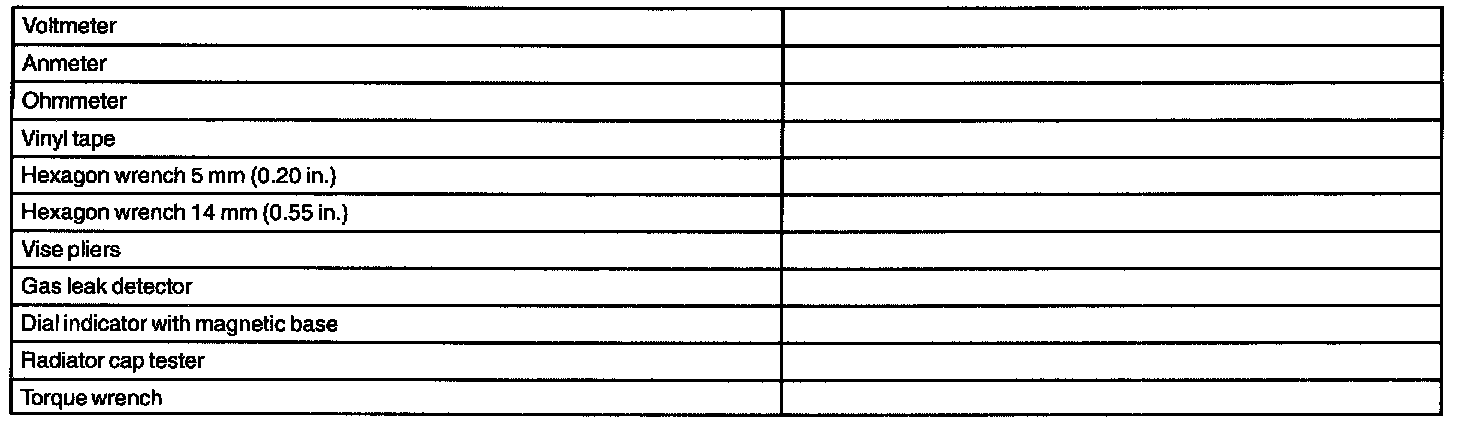

Heating And Air Conditioner - Recommended Tools:



Heating And Air Conditioner - Equipment:



Heating And Air Conditioner - Lubricant:
