Diagnosis Circuit
Diagnosis Circuit
CIRCUIT DESCRIPTION
This circuit sends a signal to the cruise control ECU assy that DTC output is required.

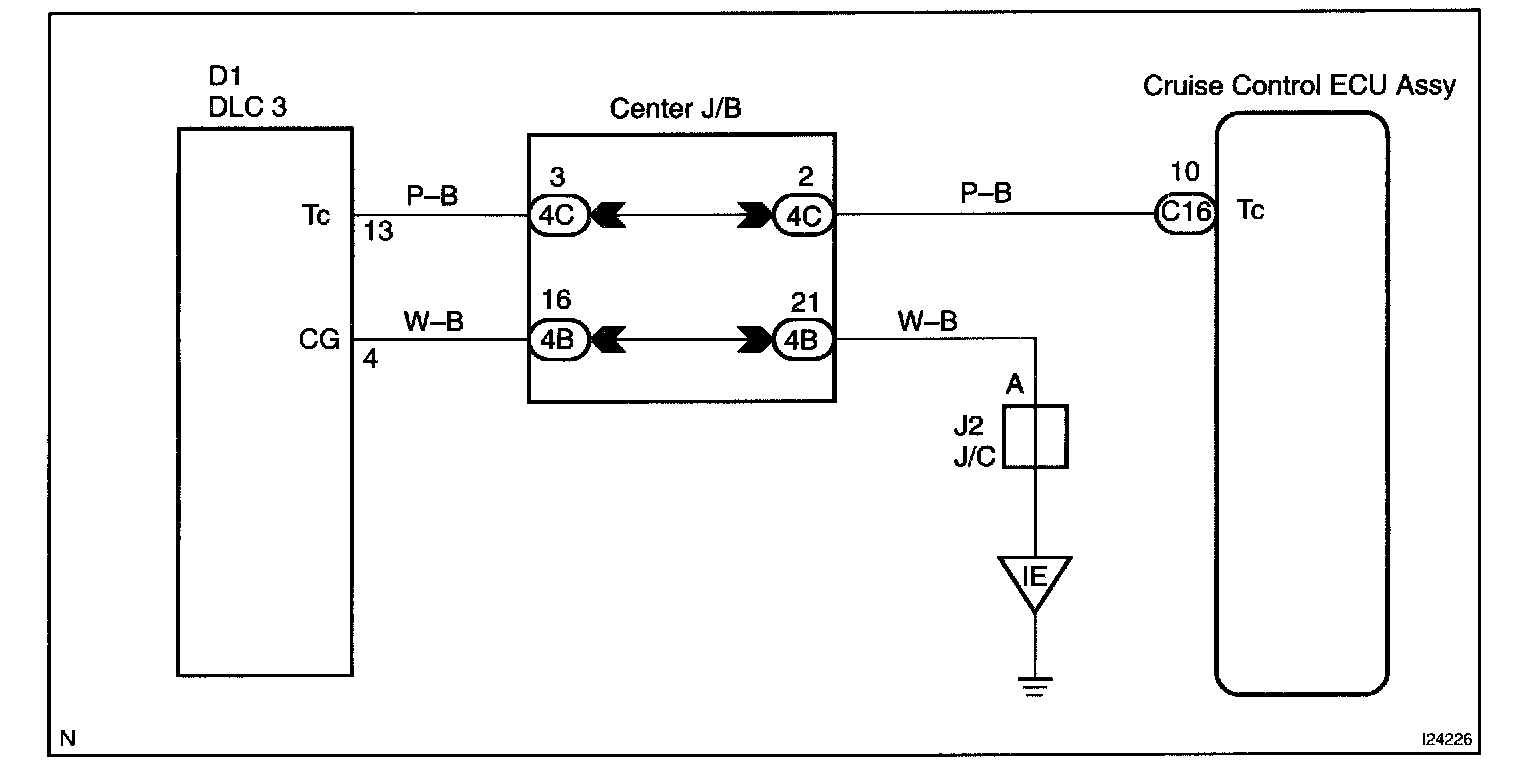

Wiring Diagram:

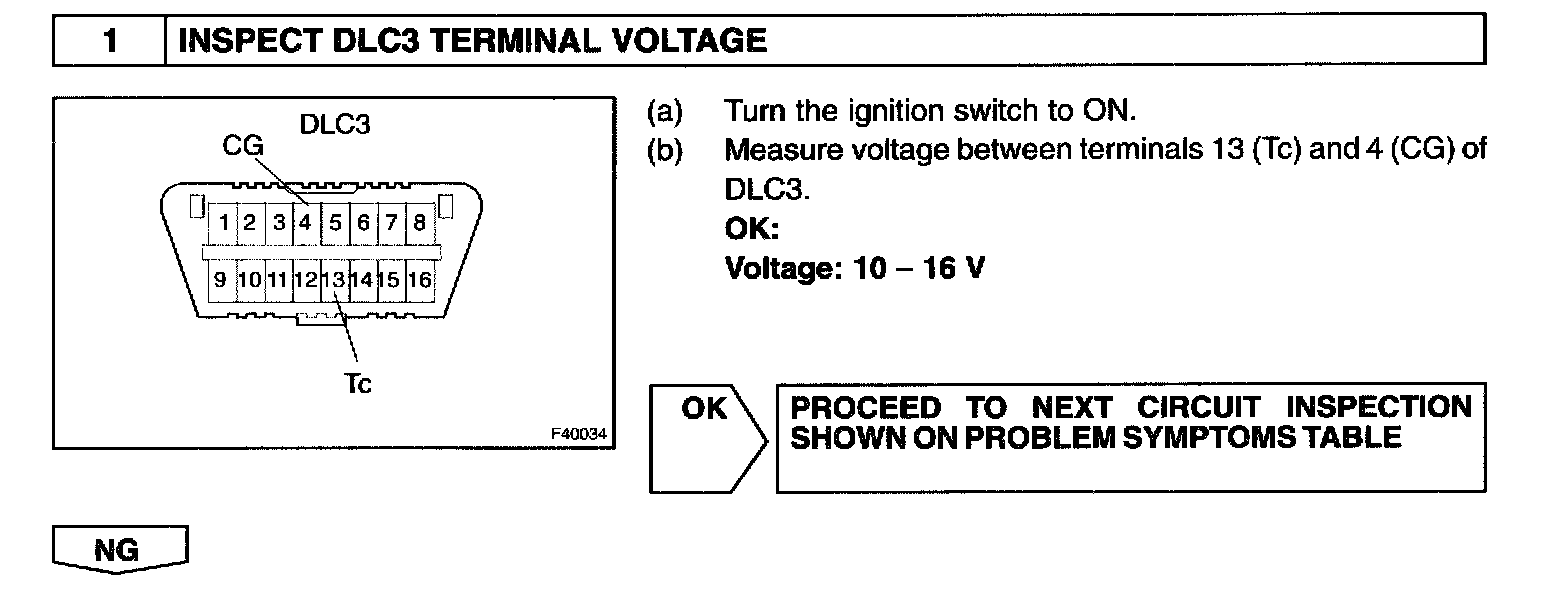

Step 1:
Step 2:
INSPECTION PROCEDURE
