Without Scan Tool

Clear the DTC

In case of not using hand-held tester




1. Using SST, it connects terminal Tc and CG of DLC3.
SST 09843-18040

2. Turn the ignition switch to ON.

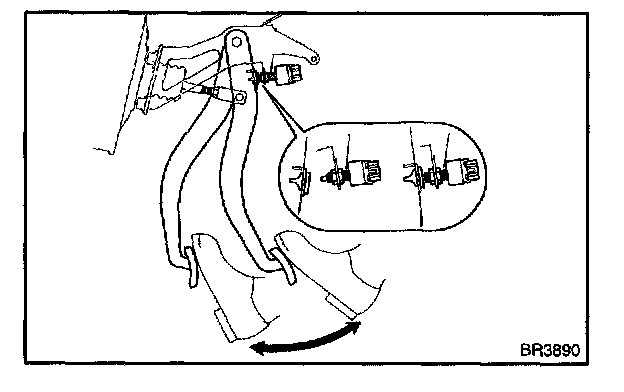

3. Clear the DTC stored in ECU by depressing the brake pedal 8 or more times within 5 seconds.
4. Check that the warning light shows the normal code.
5. Remove the SST from the terminals of DLC3.
SST 09843-18040
