Repair and Diagnosis
>>
Body and Frame
>>
Sound Proofing / Insulation
>>
Locations
>>
Silencer Sheet Installation Areas
Silencer Sheet Installation Areas

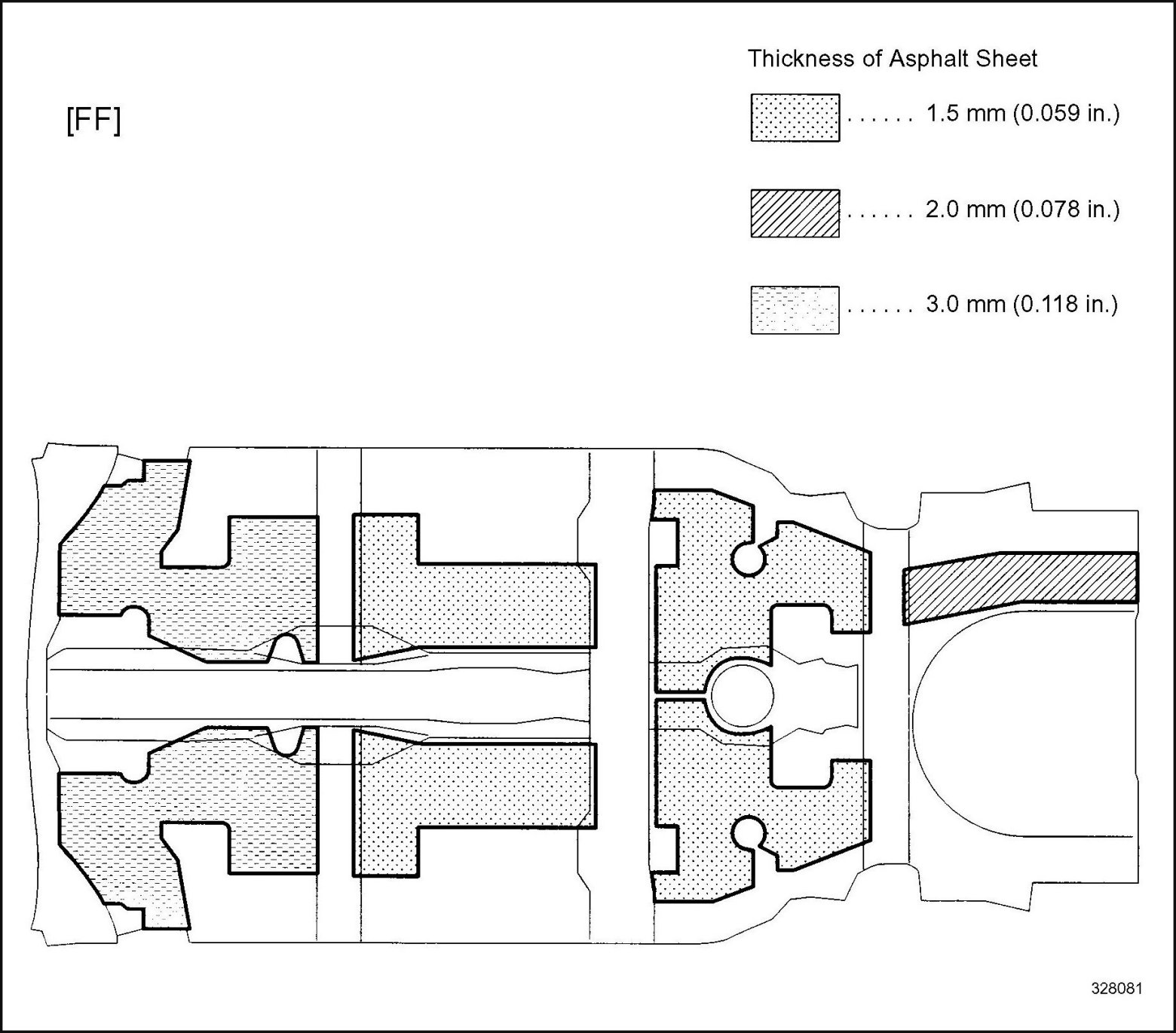

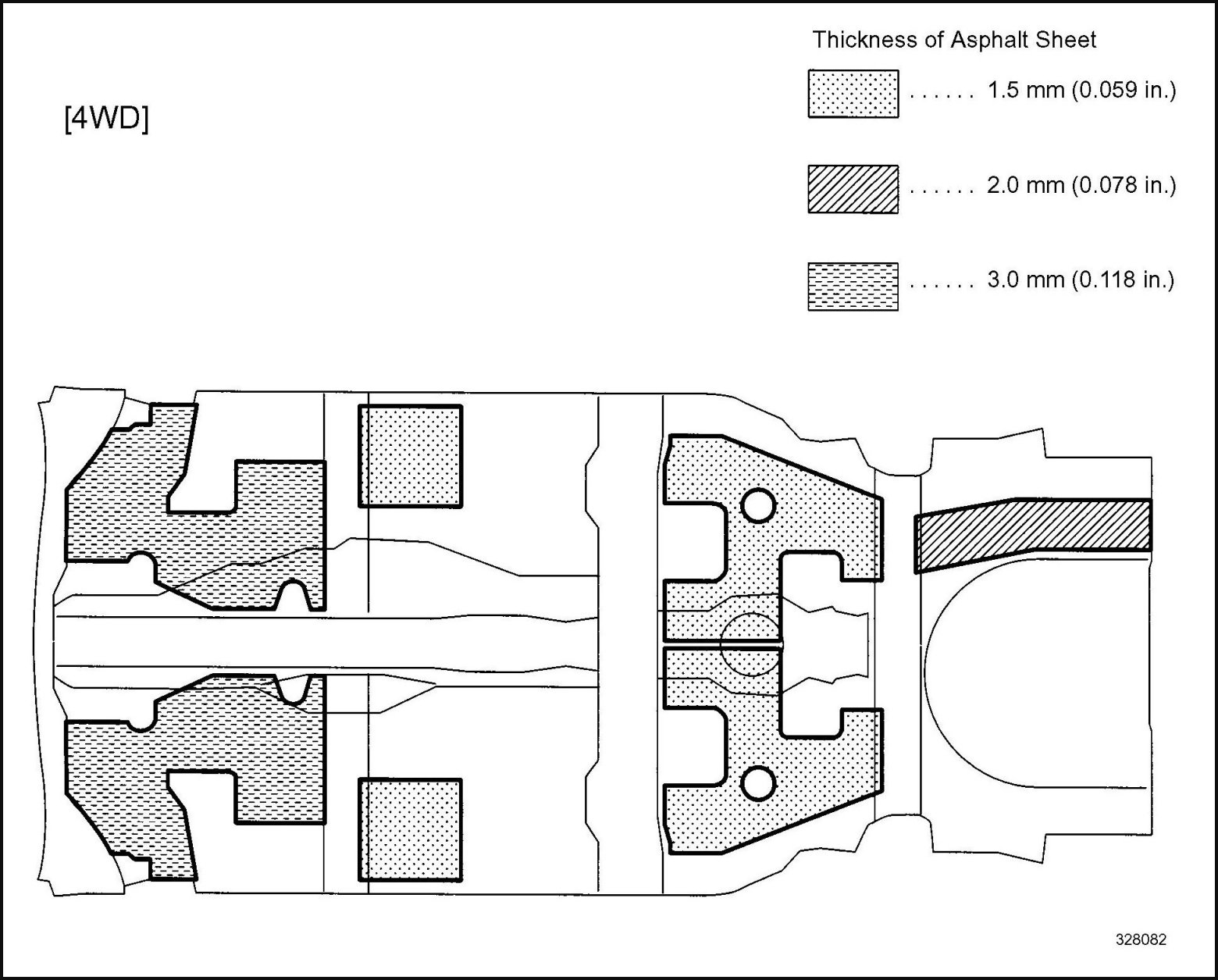

SILENCER SHEET INSTALLATION AREAS
HINT:
The floor silencer in this vehicle is a non-adhesive type.
