Home >> Toyota >> 2003 >> Matrix XR 2WD L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Headliner >> Locations

Headliner: Locations

Rear Headlining Components Part 1:

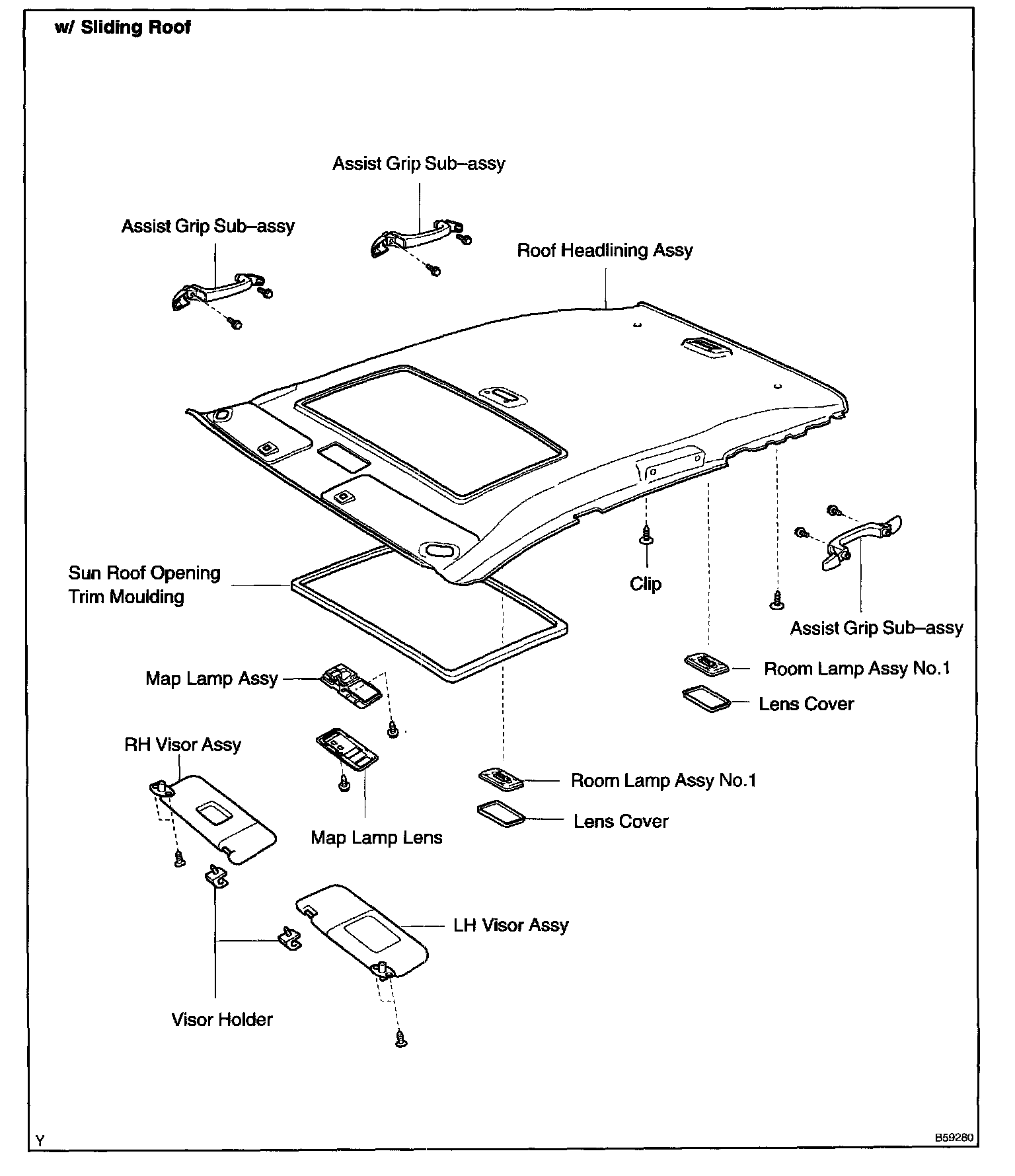

Rear Headlining Components Part 2:

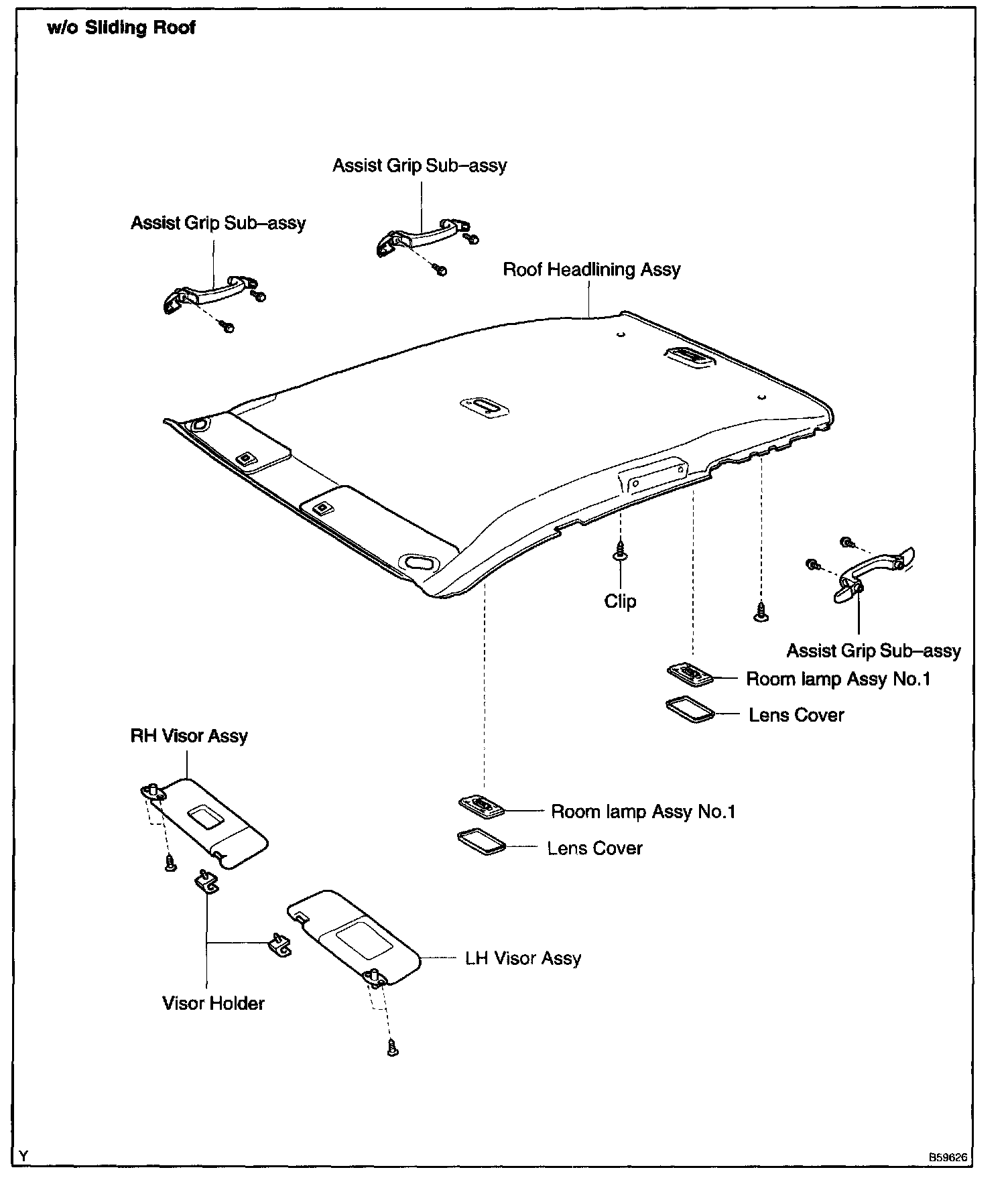

Rear Headlining Components Part 3:
