Home >> Toyota >> 2003 >> Matrix XR 2WD L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> Cassette Tape Cannot Be Inserted or Played

Cassette Tape Cannot Be Inserted or Played

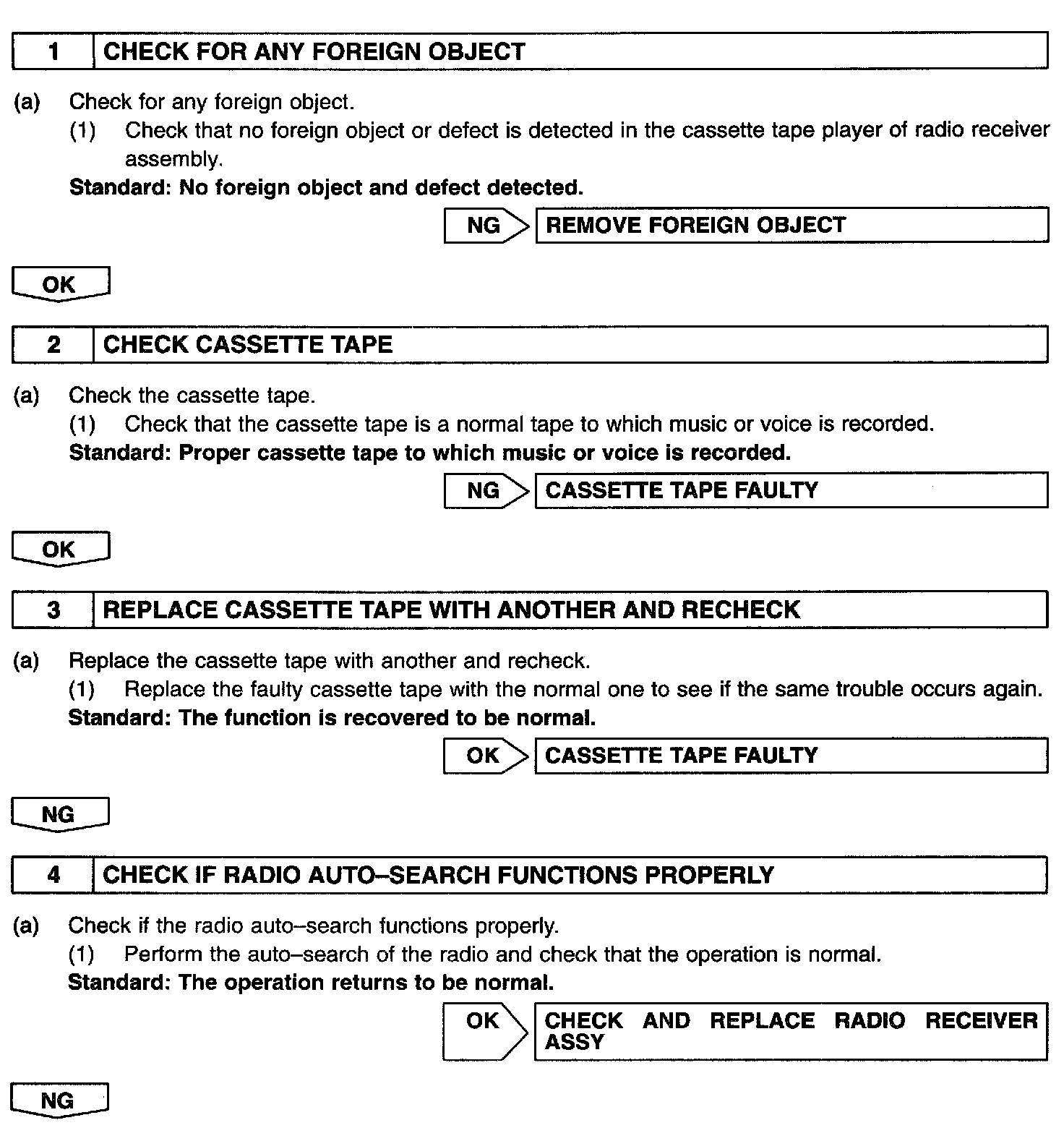

Step 1 - 4:

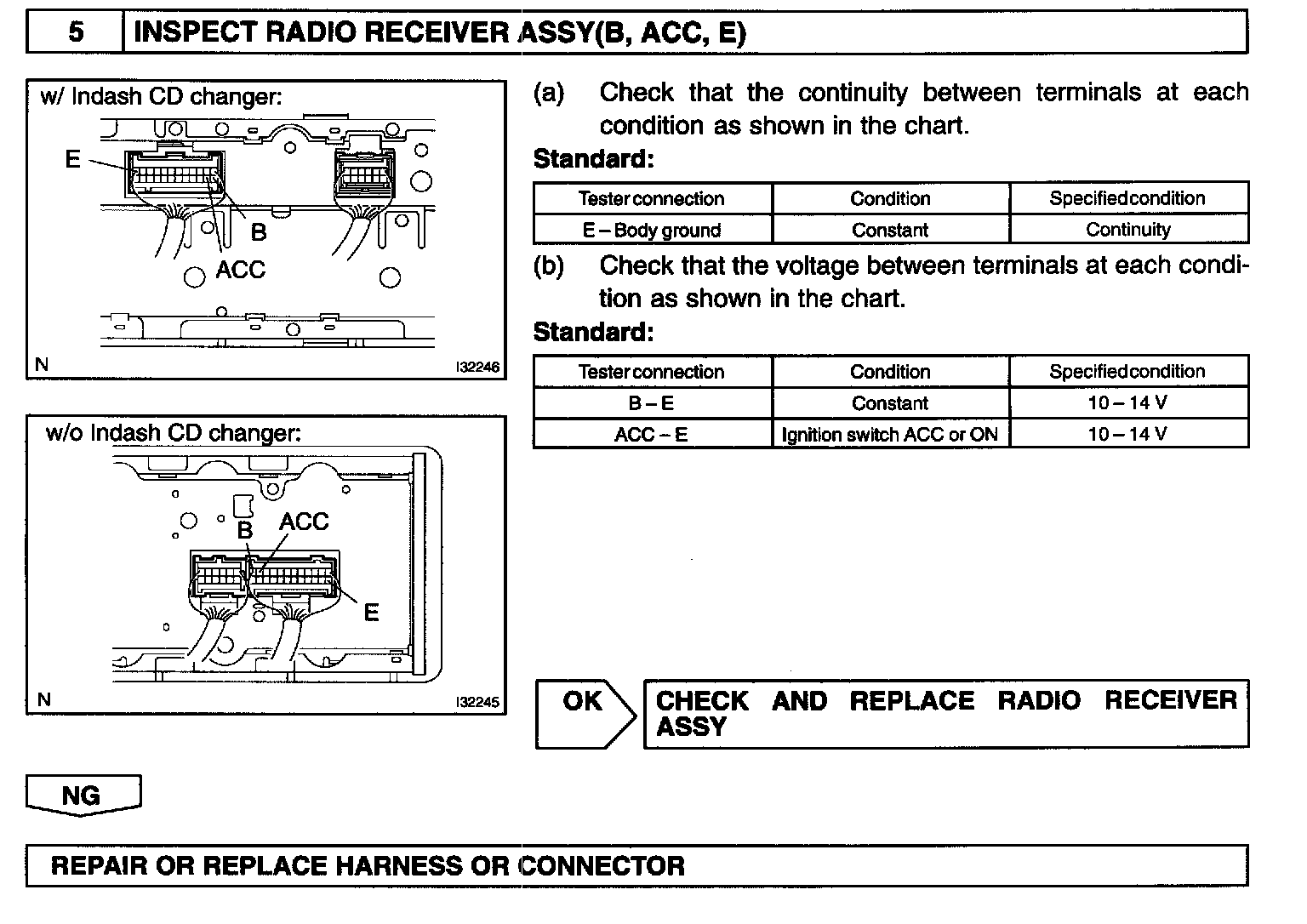

Step 5:




INSPECTION PROCEDURE

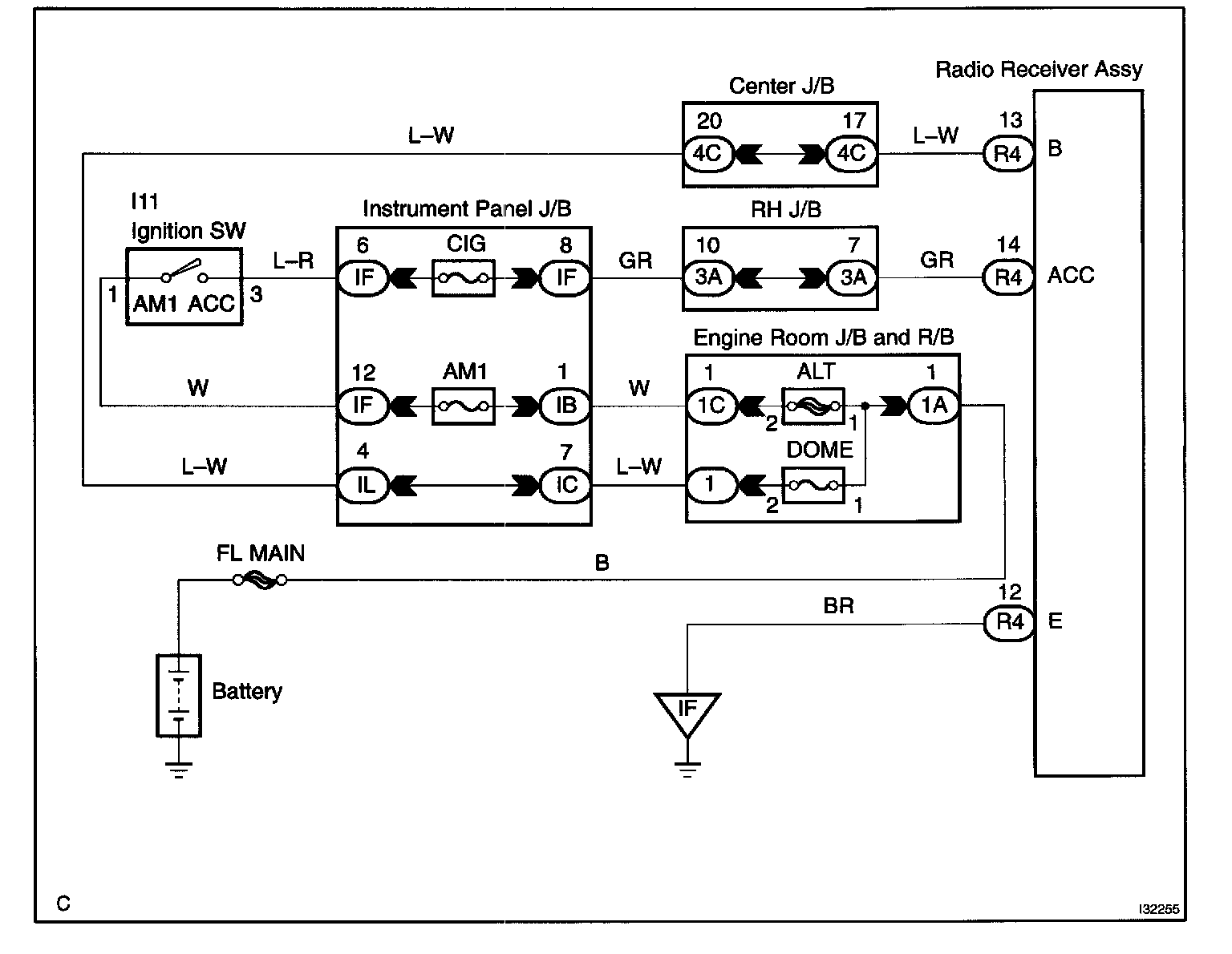

Wiring Diagram:
