The Sound of Only Disc Player Changer Is Not Heard From Speaker
The Sound of Only Disc Player Changer Is Not Heard From Speaker
The Sound of Only Disc Player Changer Is Not Heard From Speaker

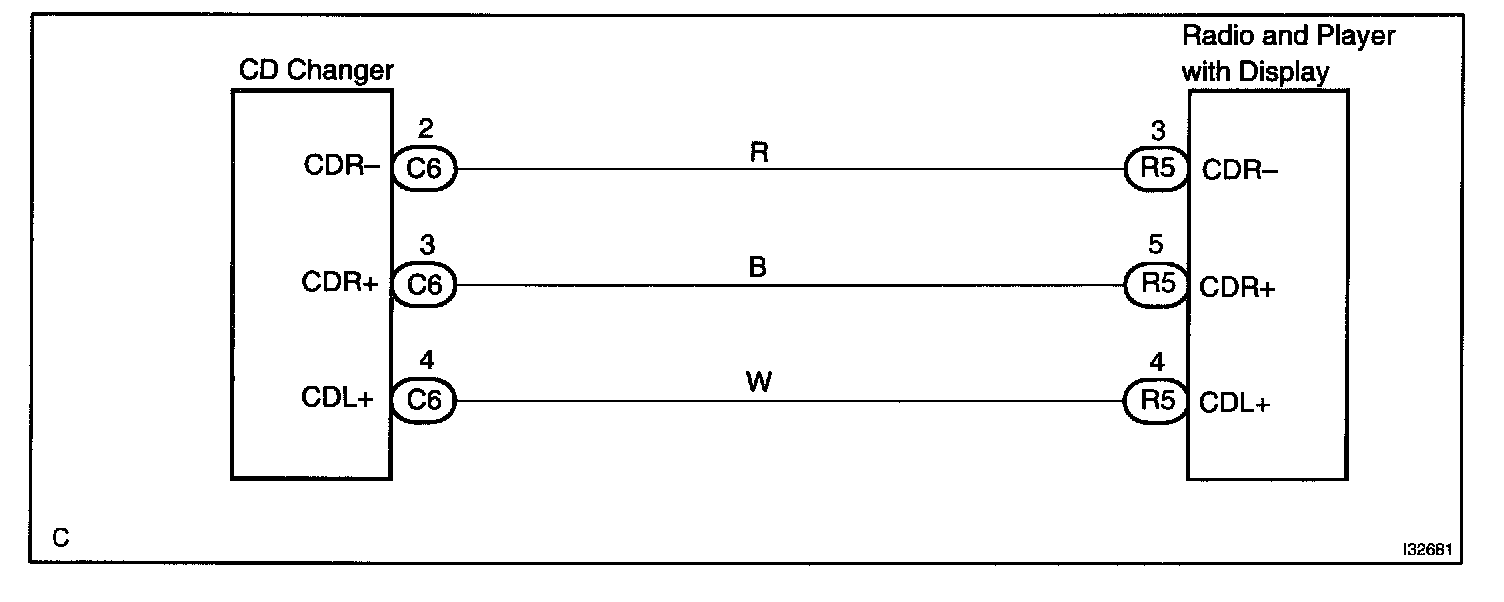

Wiring Diagram:

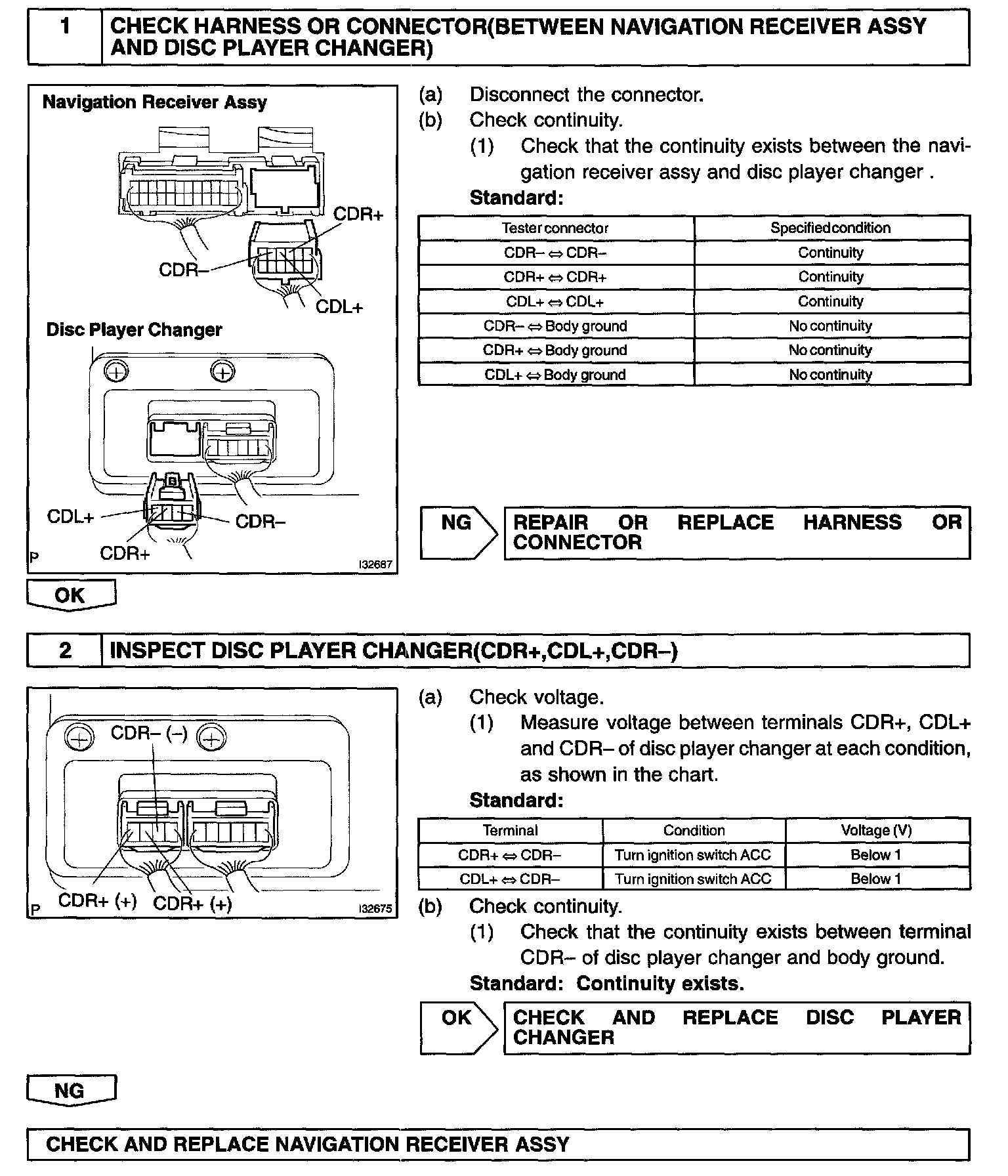

Step 1 - 2:
INSPECTION PROCEDURE
