Home >> Toyota >> 2003 >> Matrix XR 2WD L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> Current Position Screen Is Not Displayed

Current Position Screen Is Not Displayed

Current Position Screen Is Not Displayed (Disc Caution Screen Does Not Change)

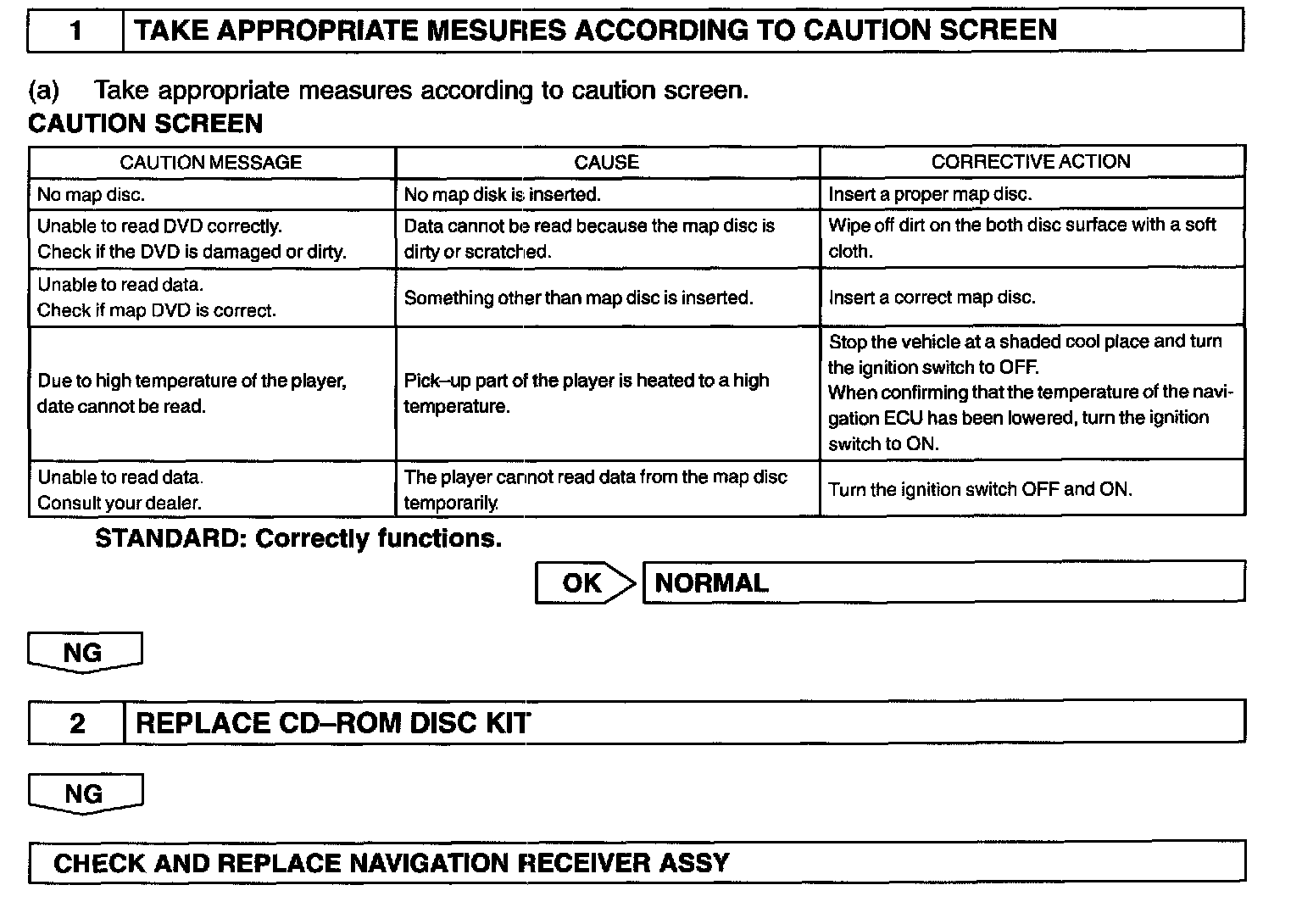

Step 1 - 2:




INSPECTION PROCEDURE
