TVIP ECU Communication Circuit
CIRCUIT DESCRIPTIONThe wireless receiver receives a SET/UNSET signal for the TVIP system and sends the signal to the TVIP ECU via the integration relay.

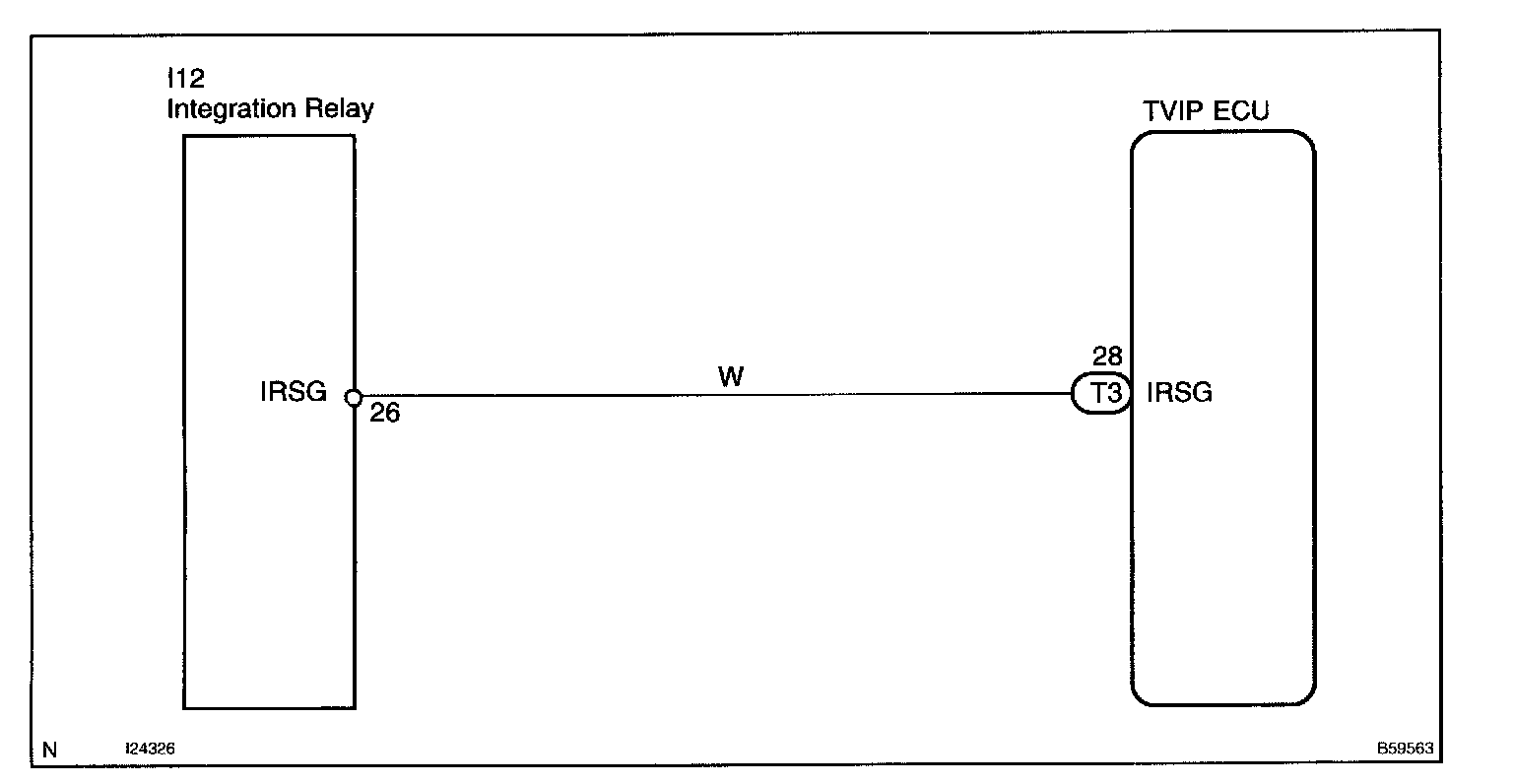

Wiring Diagram:
Step 1:

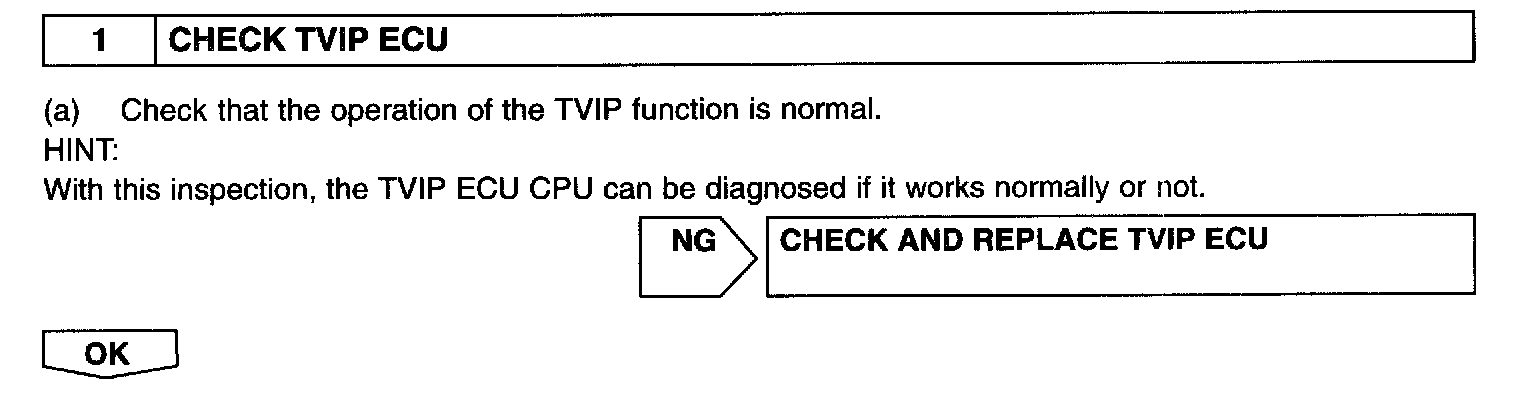

Step 2:
INSPECTION PROCEDURE
The wireless receiver receives a SET/UNSET signal for the TVIP system and sends the signal to the TVIP ECU via the integration relay.
INSPECTION PROCEDURE
