Hazard Warning Switch Circuit

CIRCUIT DESCRIPTION

When the TVIP system is transferred to the alarm sounding state from the armed state, the signal flasher assembly (relay for hazard warning lights) will be switched ON and the hazard warning lights will start blinking.

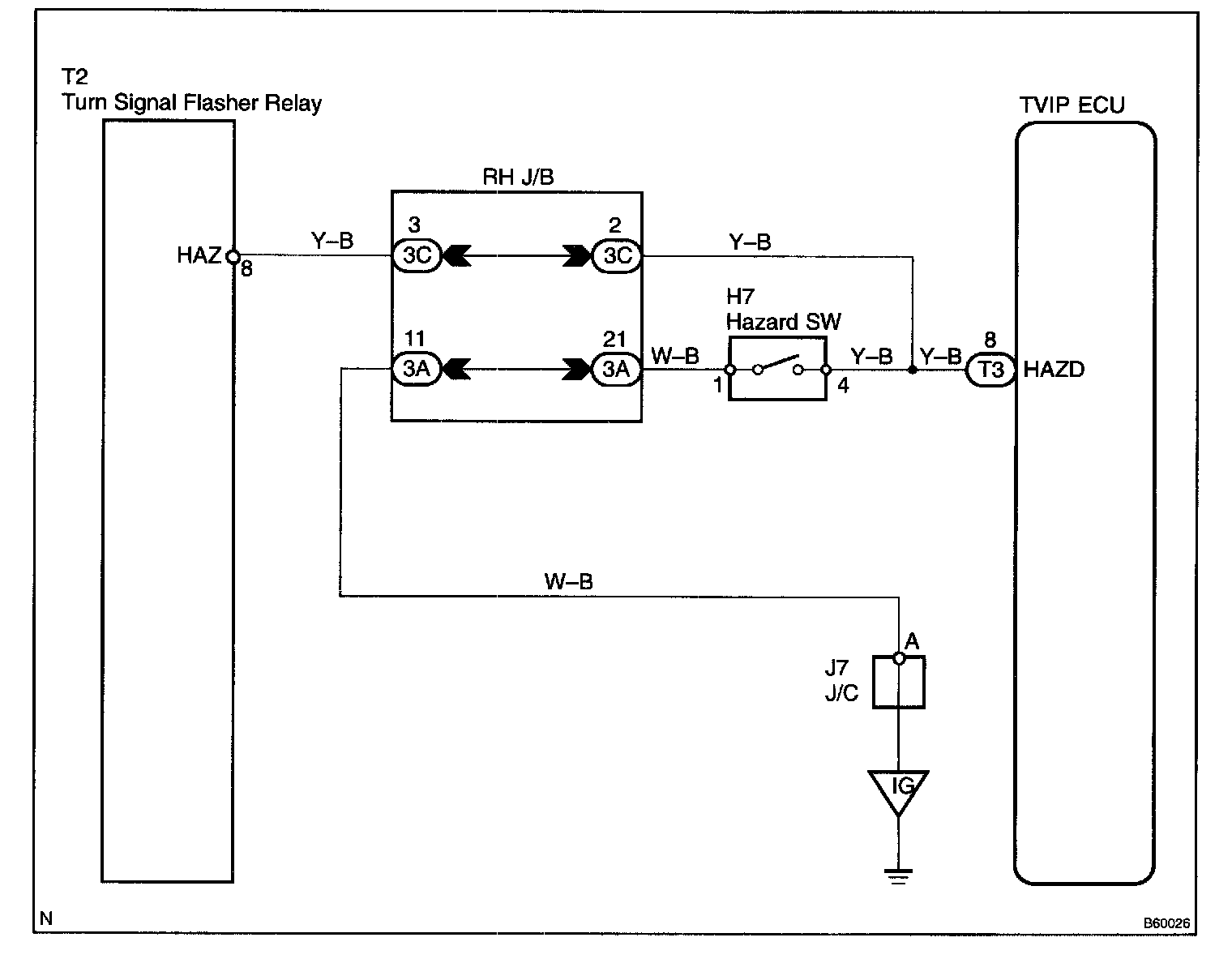

Wiring Diagram:

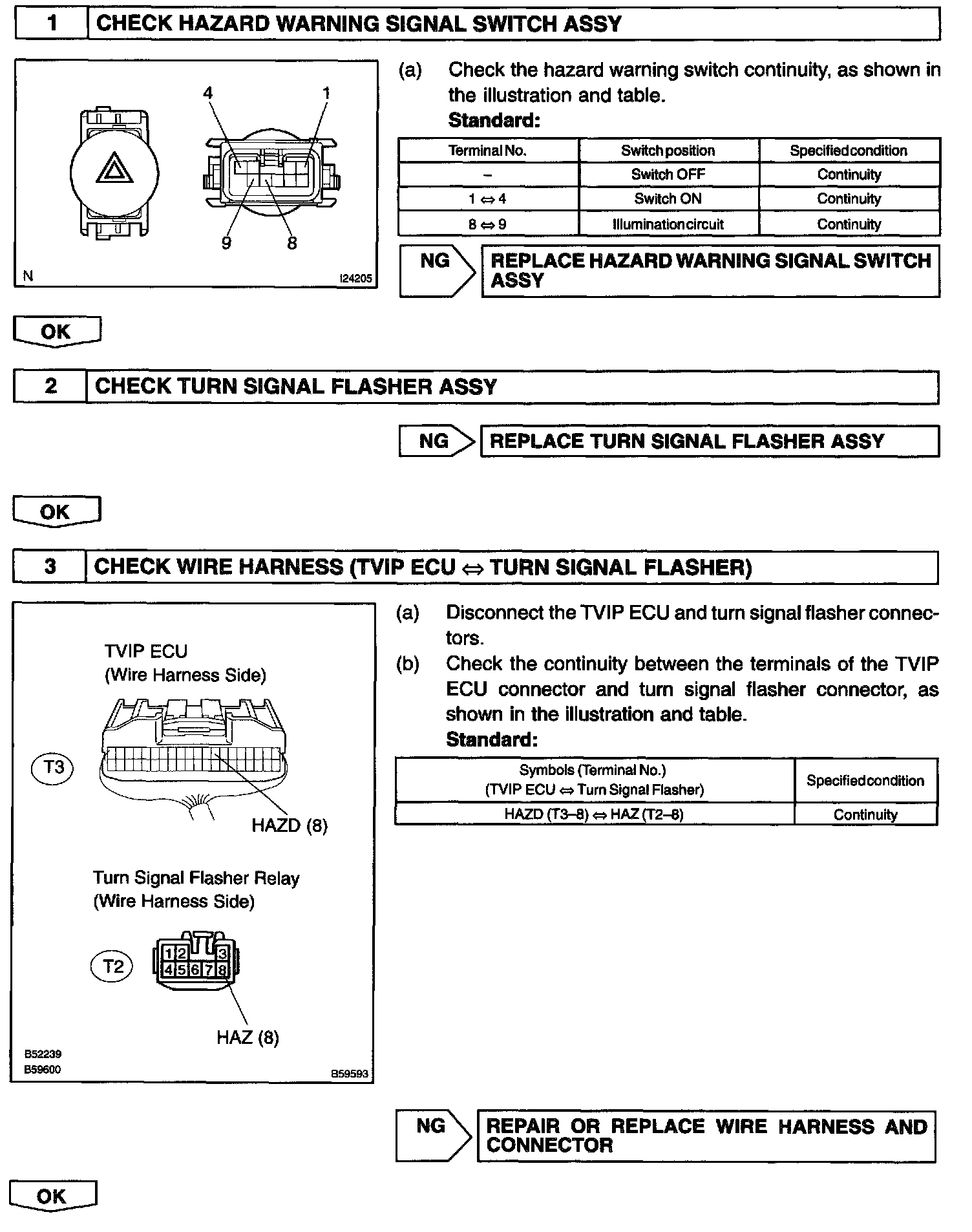

Step 1 - 3:

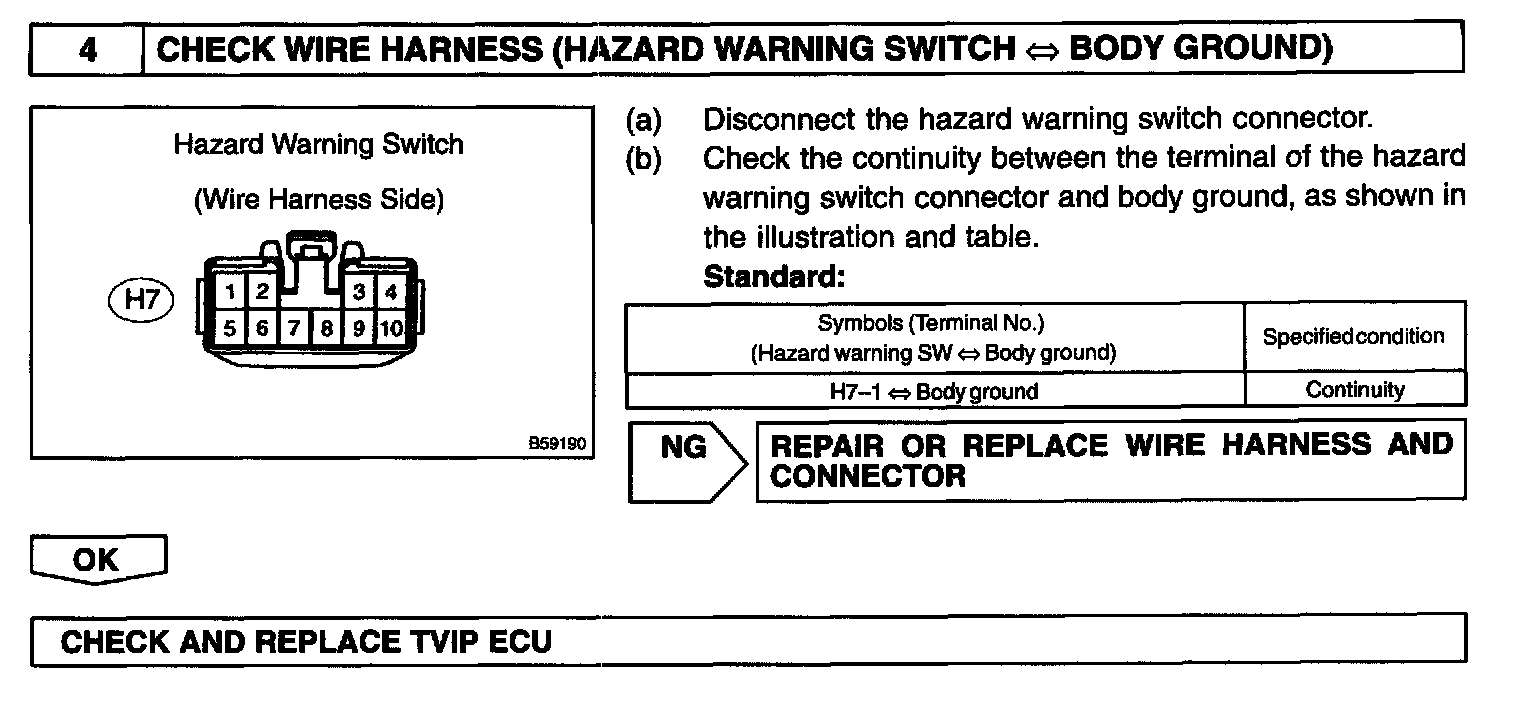

Step 4:

INSPECTION PROCEDURE
