Door Key Lock and Unlock Switch Circuit

CIRCUIT DESCRIPTION

The door key lock and unlock switch is built in the door lock motor.

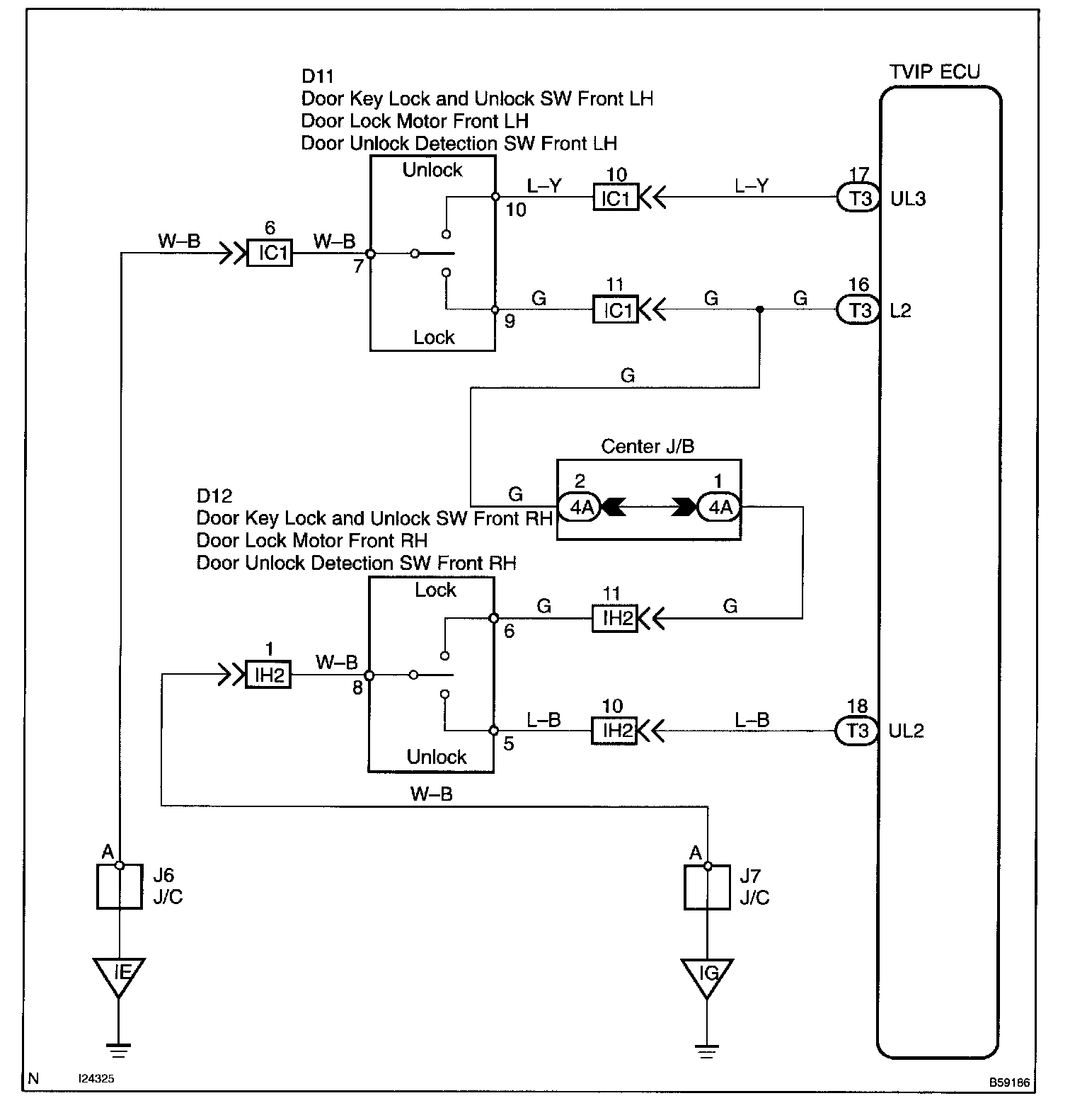

Wiring Diagram:

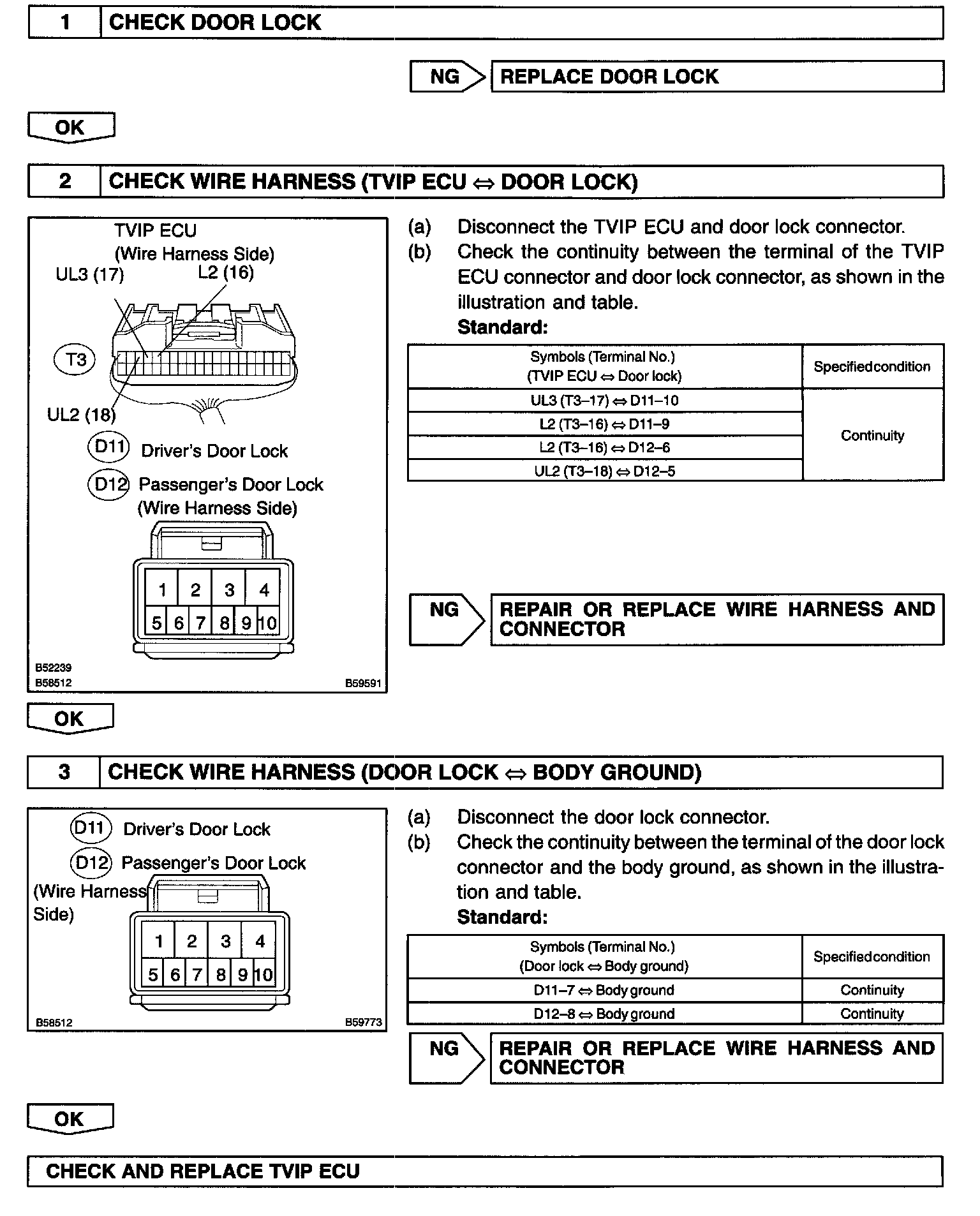

Step 1 - 3:




INSPECTION PROCEDURE
