Navigation Antenna Cord Sub-Assy

NAVIGATION ANTENNA CORD SUB-ASSY

REPLACEMENT

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER
2. REMOVE NAVIGATION RECEIVER ASSEMBLY W/BRACKET

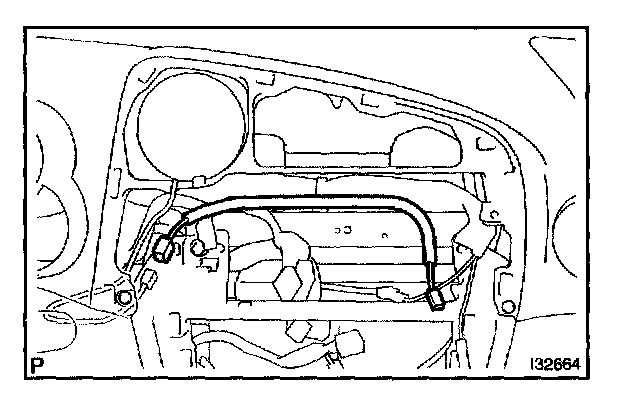

3. REMOVE NAVIGATION ANTENNA CORD SUB-ASSY
a. Disconnect the connecter, remove the navigation antenna cord sub-assy.
