Navigation Antenna Assy

NAVIGATION ANTENNA ASSY

REPLACEMENT

1. REMOVE INSTRUMENT PANEL SUB-ASSY UPPER

HINT: Refer to the instructions for removal of the instrument panel sub-assy upper.




2. REMOVE NAVIGATION ANTENNA ASSY
a. Disconnect the connector, remove the navigation antenna cord sub-assy.

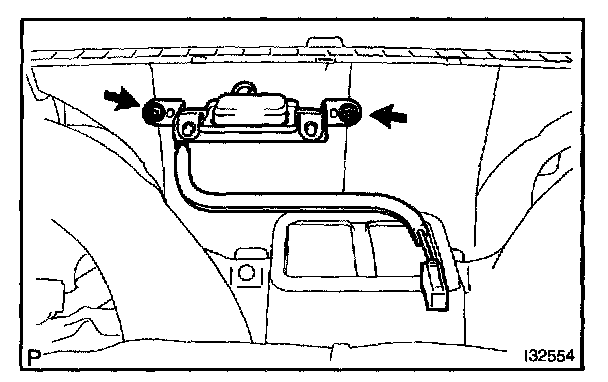

b. Remove the 2 screws and navigation antenna assy from the defroster nozzle assy.

3. INSTALL INSTRUMENT PANEL SUB-ASSY UPPER
