Antenna Mast: Service and Repair
ROOF ANTENNA POLE SUB-ASSY
REPLACEMENT
1.
REMOVE ROOF ANTENNA POLE SUB-ASSY
a.

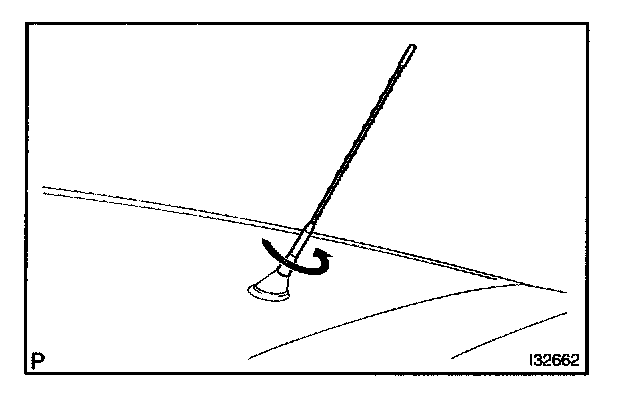

Remove the antenna pole sub-assy by turning it in the arrow direction in the illustration.
