Home >> Toyota >> 2003 >> Avalon V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Tools and Equipment

Steering: Tools and Equipment

Part 1 Of 4:




Part 2 Of 4:




Part 3 Of 4:




Part 4 Of 4:

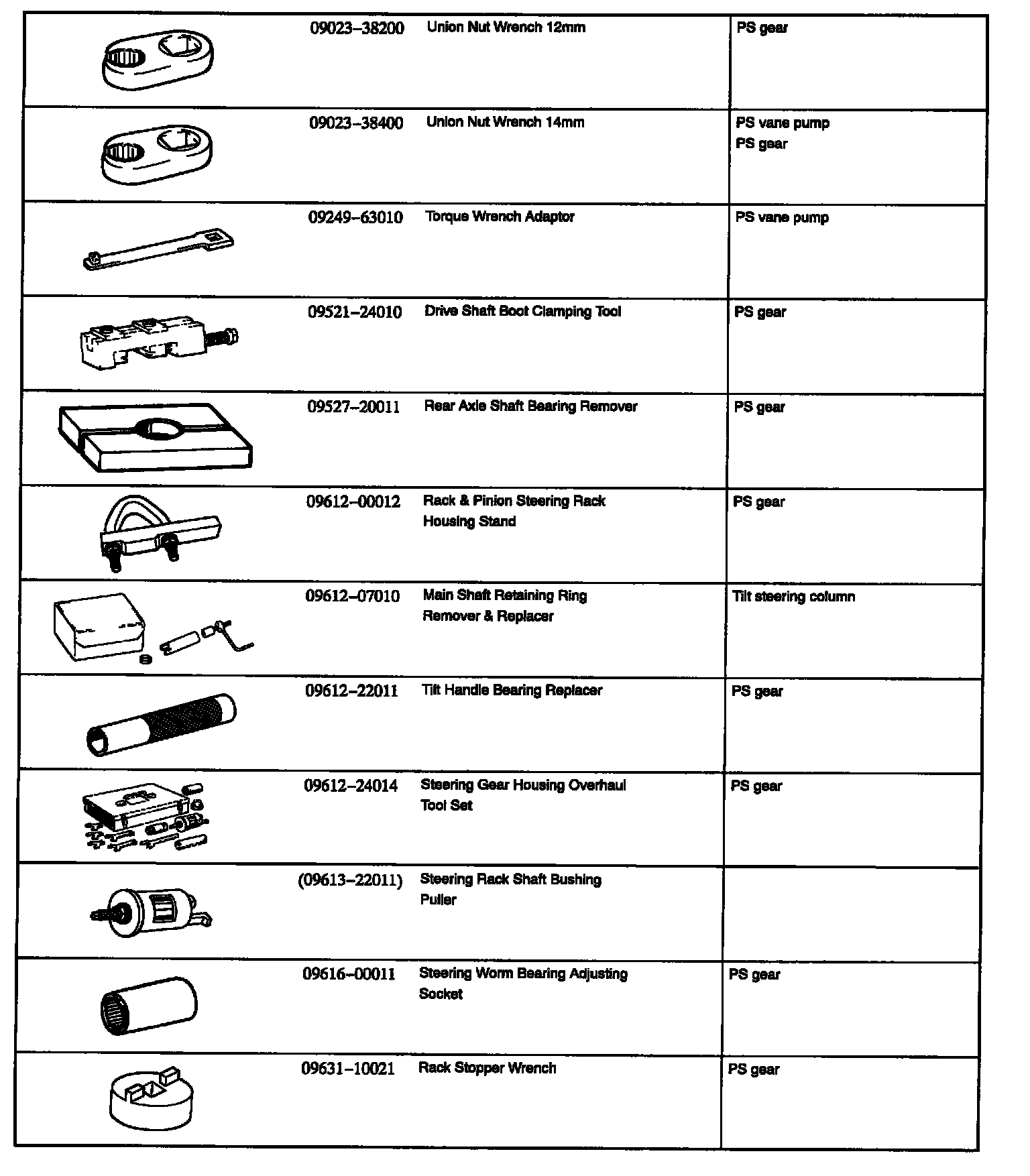

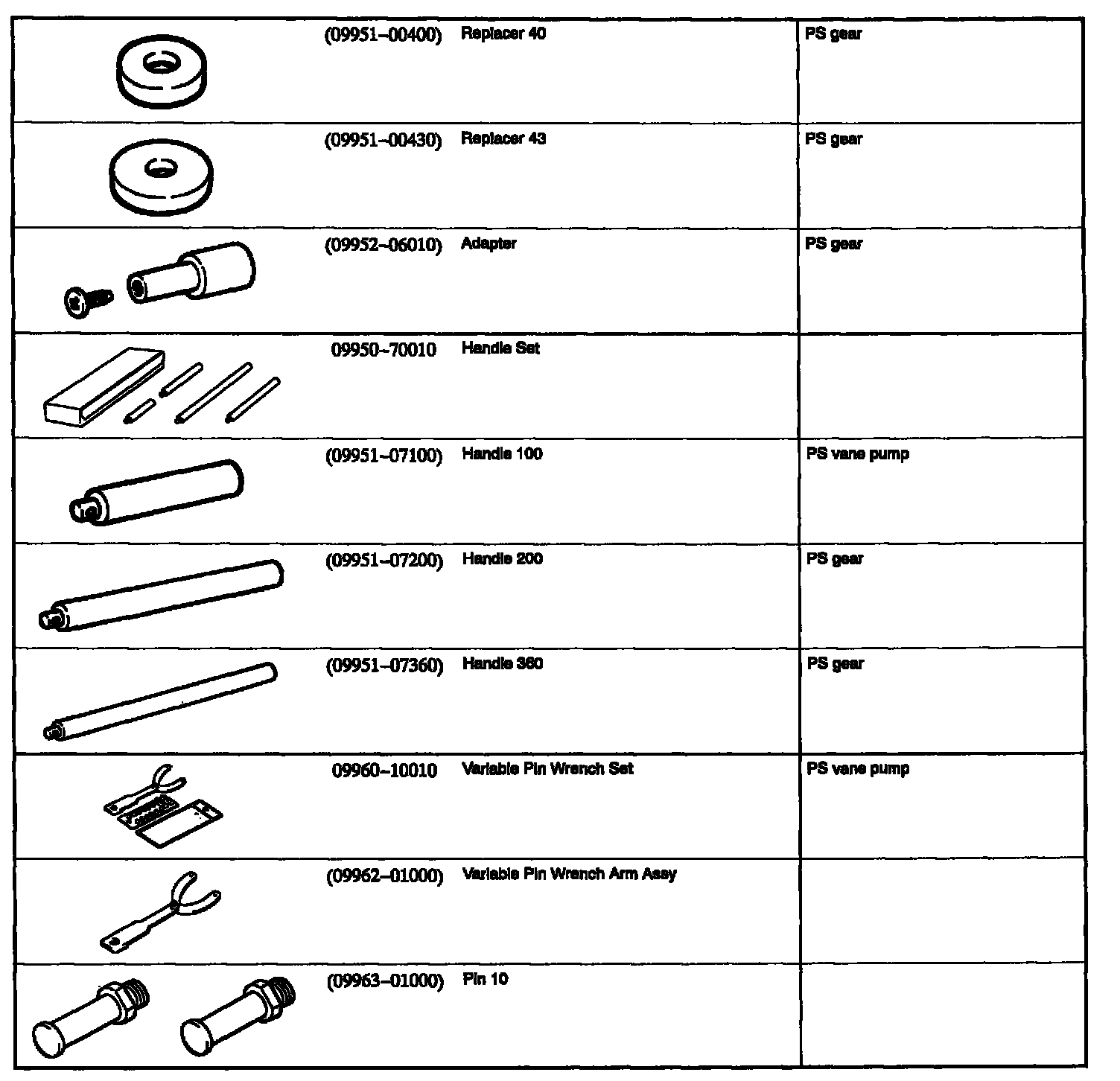

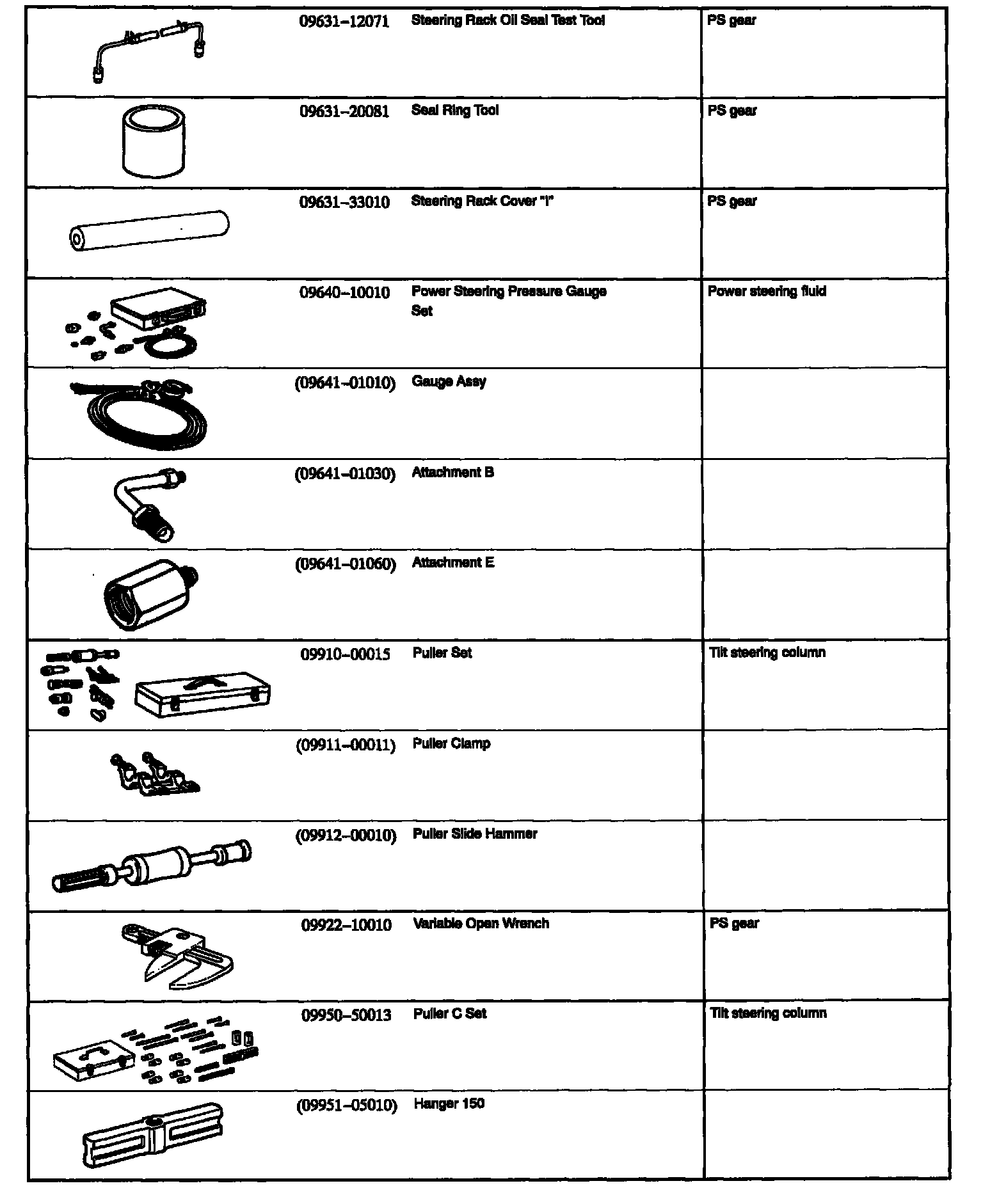

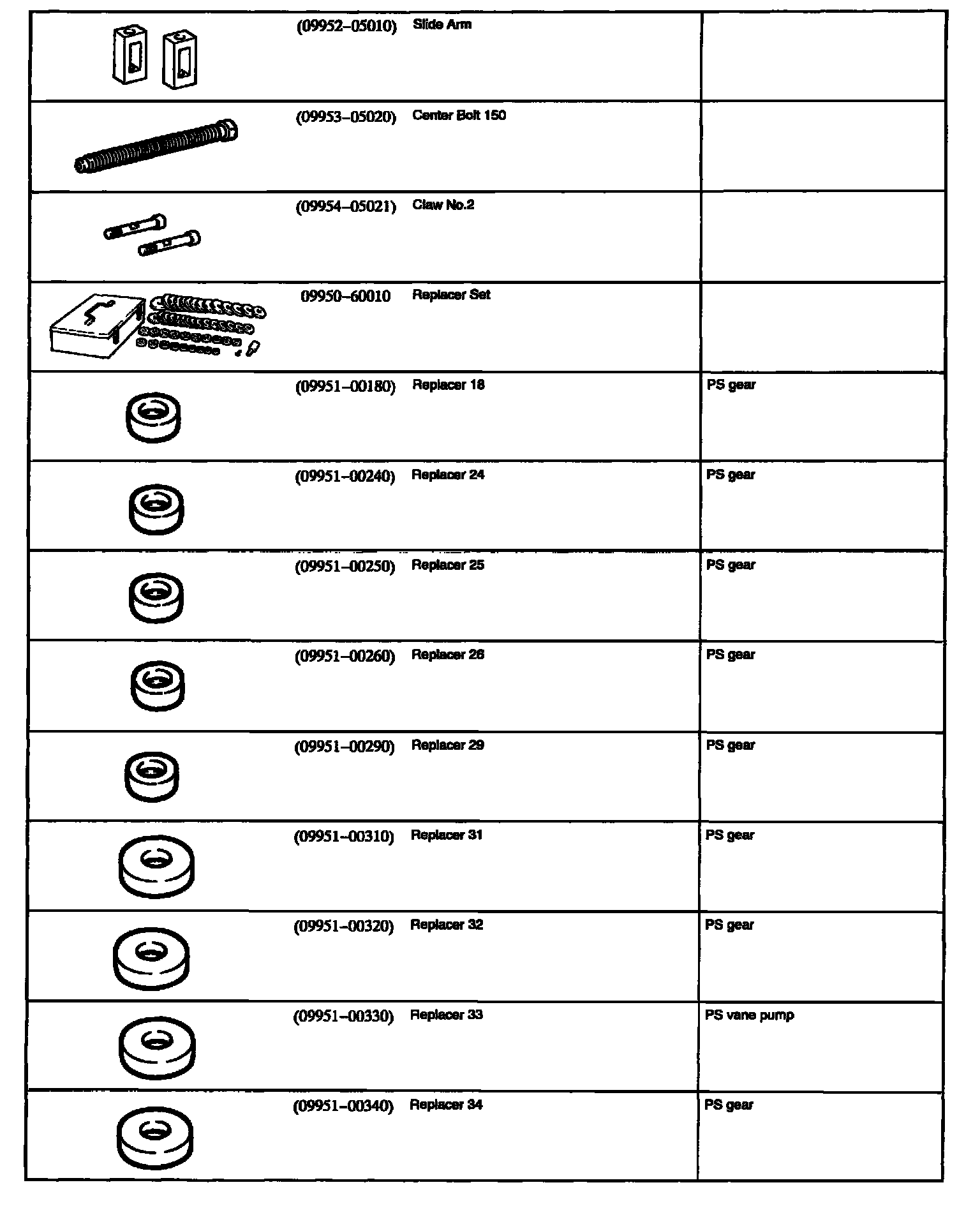

SST (Special Service Tools)

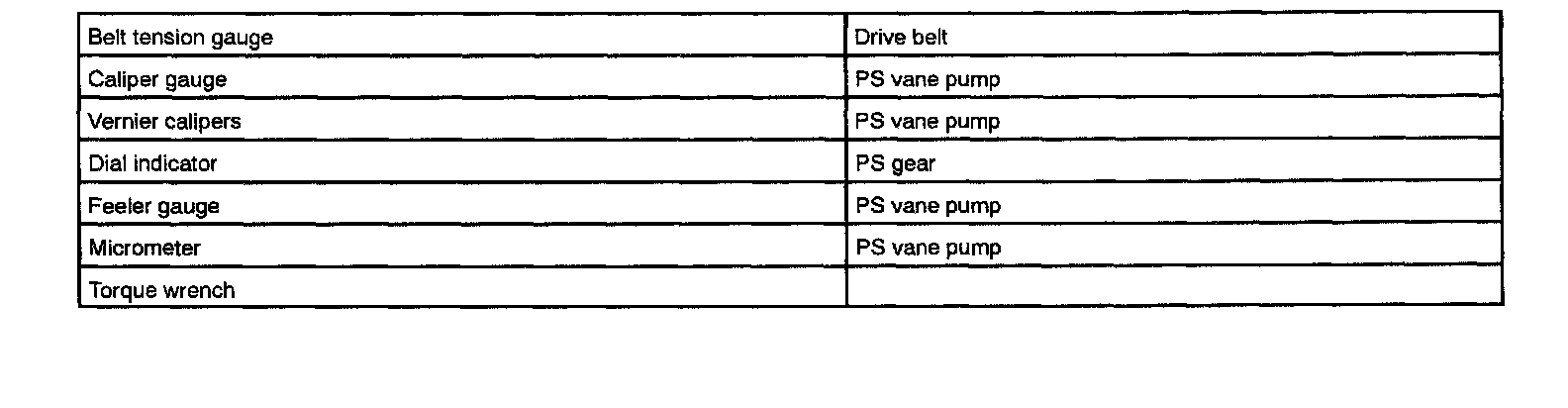

RECOMMENDED TOOLS

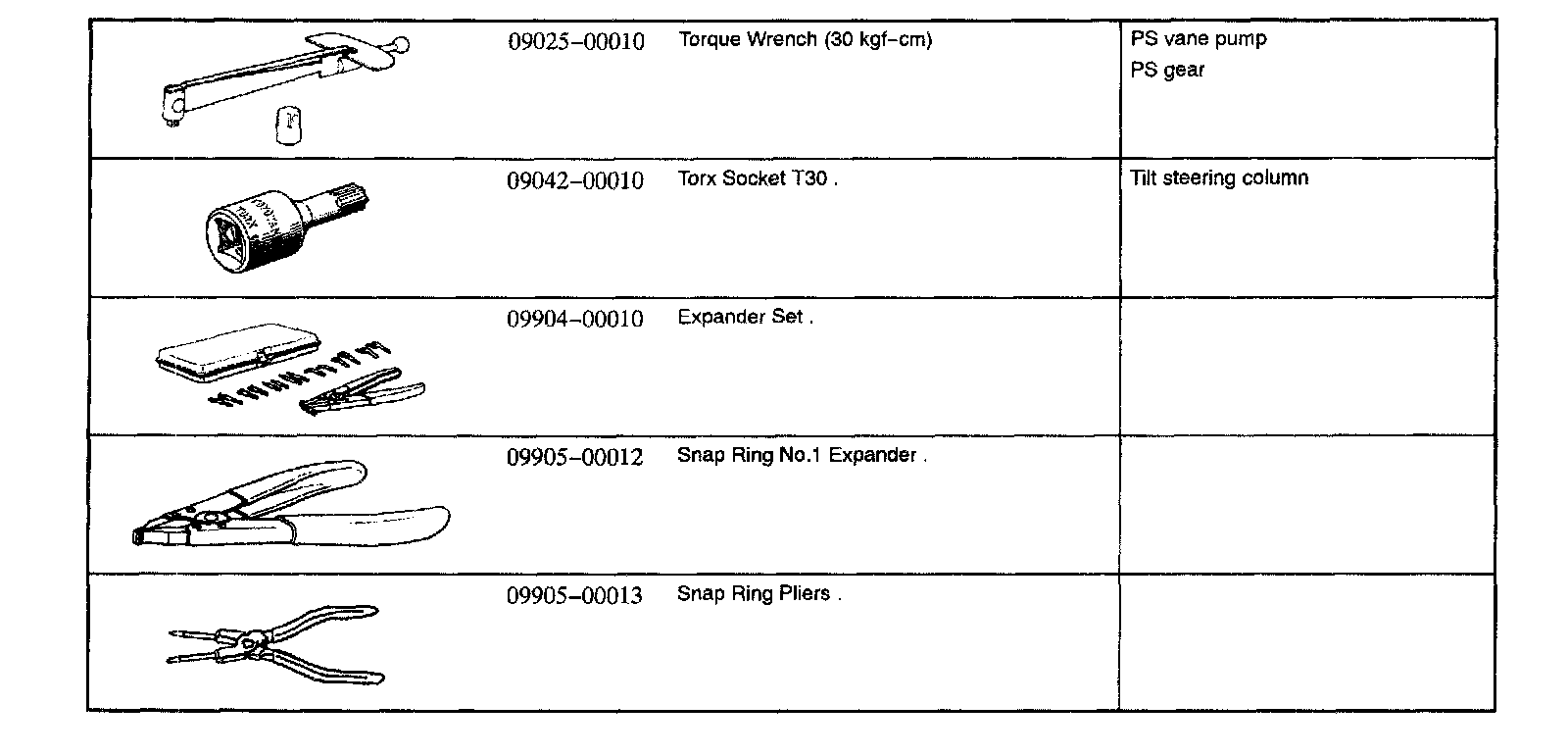

EQUIPMENT

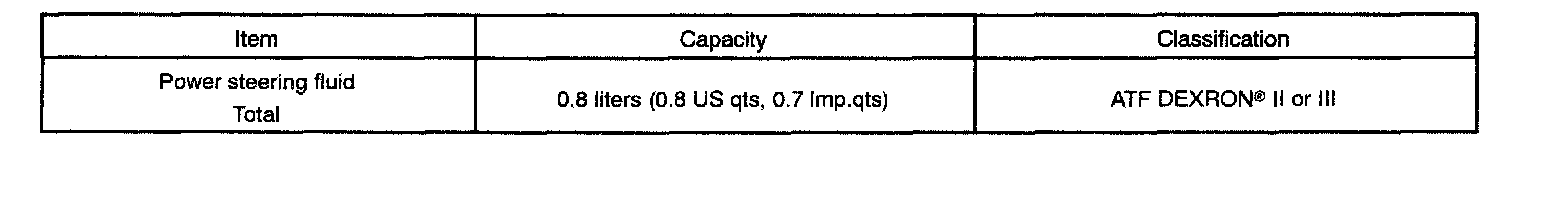

LUBRICANT

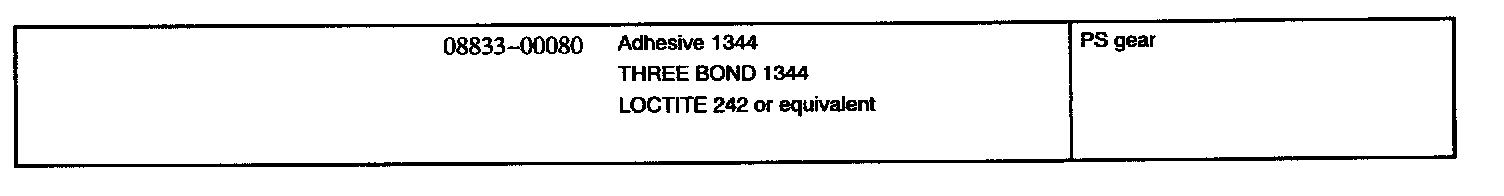

SSM (Special Service Materials)
