Variable Induction Control Valve

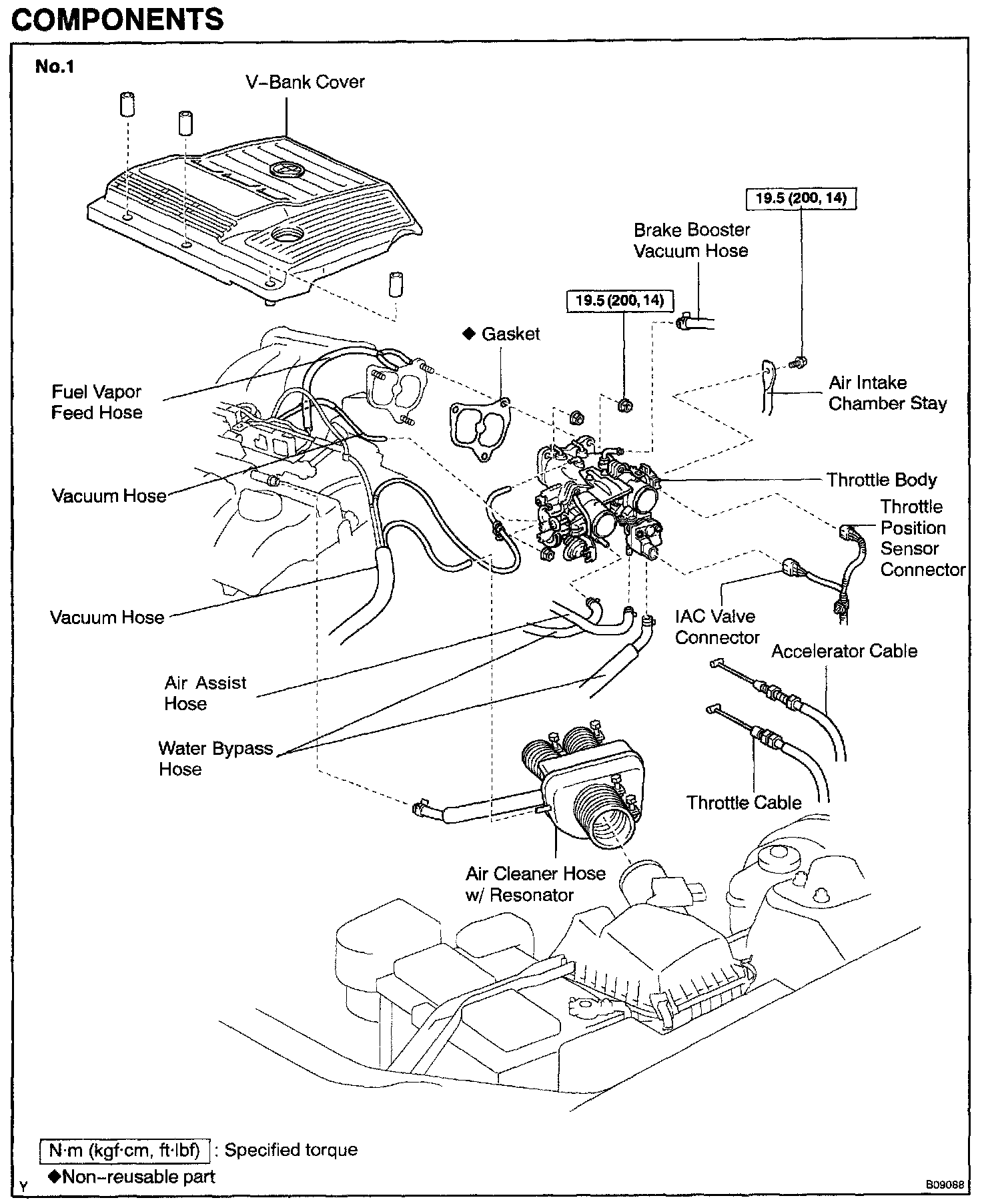

Acoustic Control Induction System (ACIS):

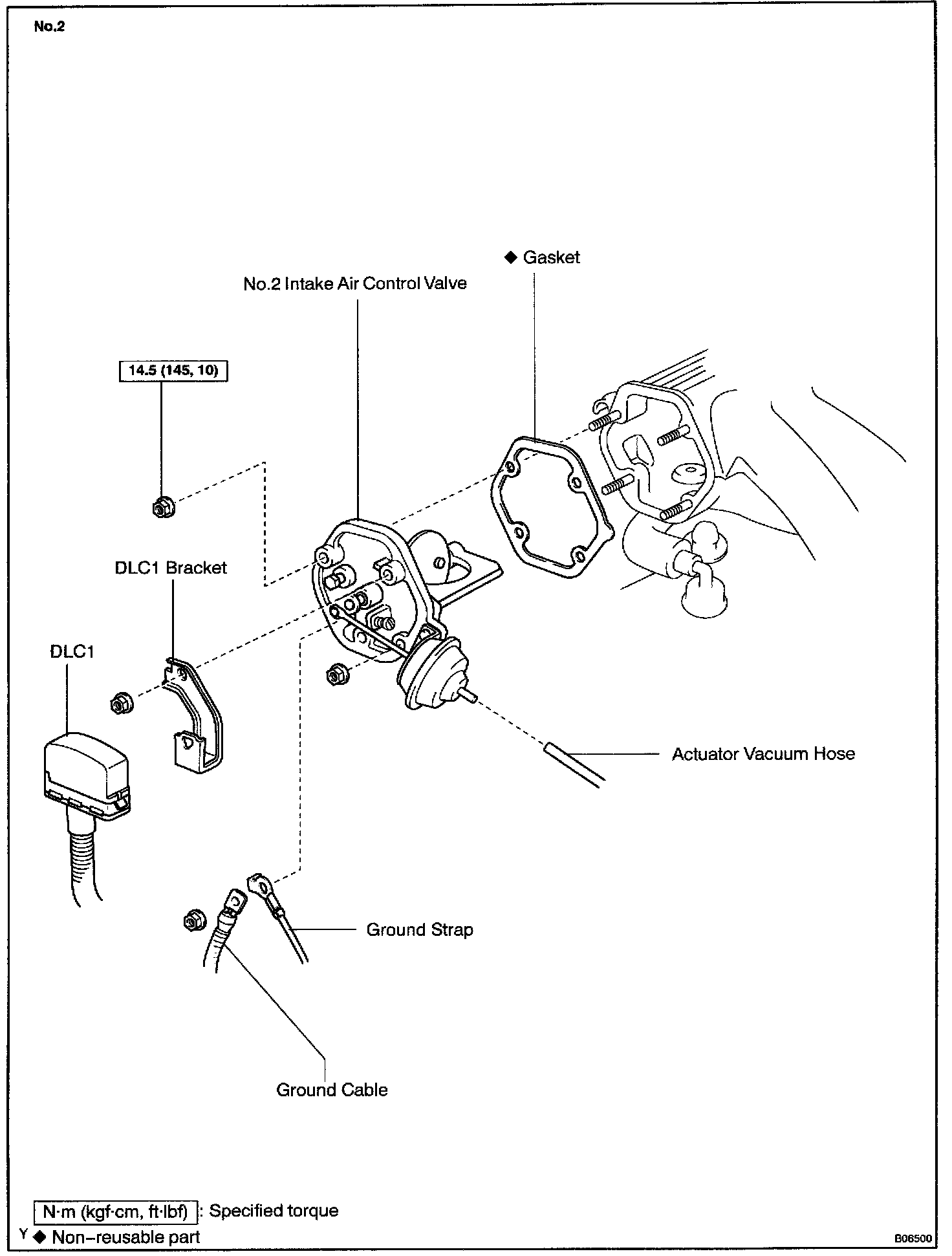

Acoustic Control Induction System (ACIS) Part 2:



Acoustic Control Induction System (ACIS) Part 3:
