Instrument Panel, Gauges and Warning Indicators

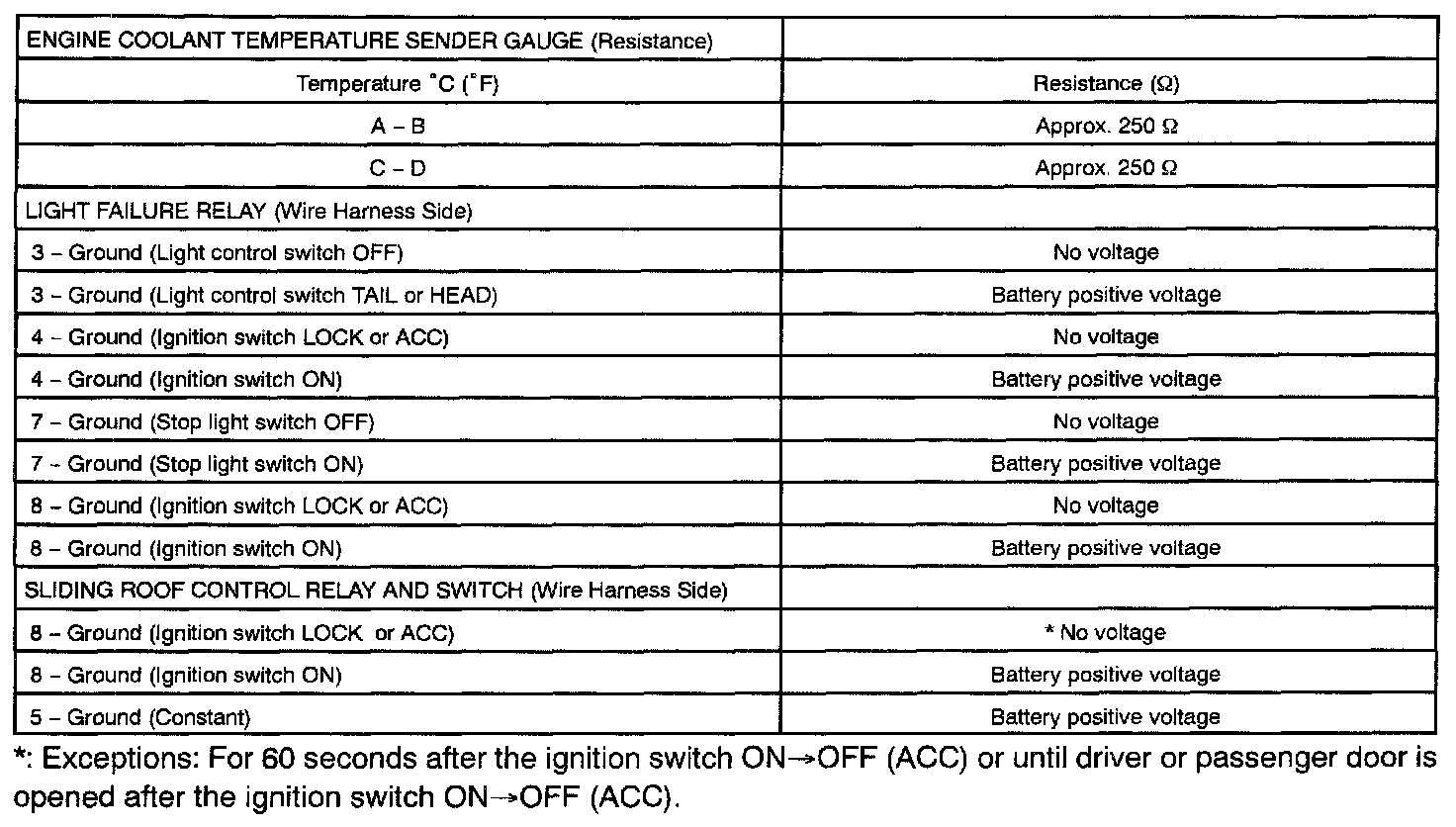

Body - Service Data Part 1:

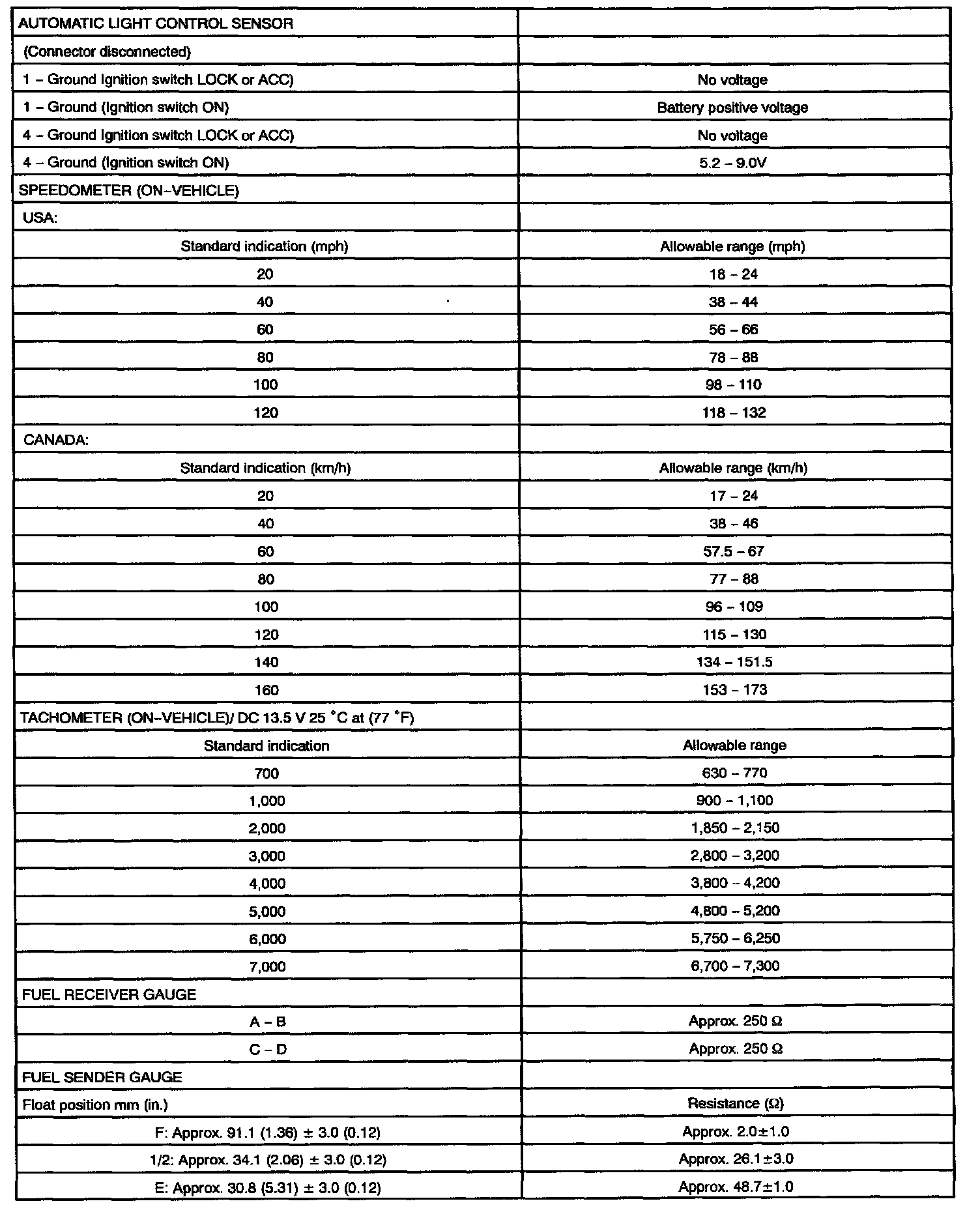

Body - Service Data Part 2:
