Monitor 6: EVAP Monitor (Vacuum and Lev II)

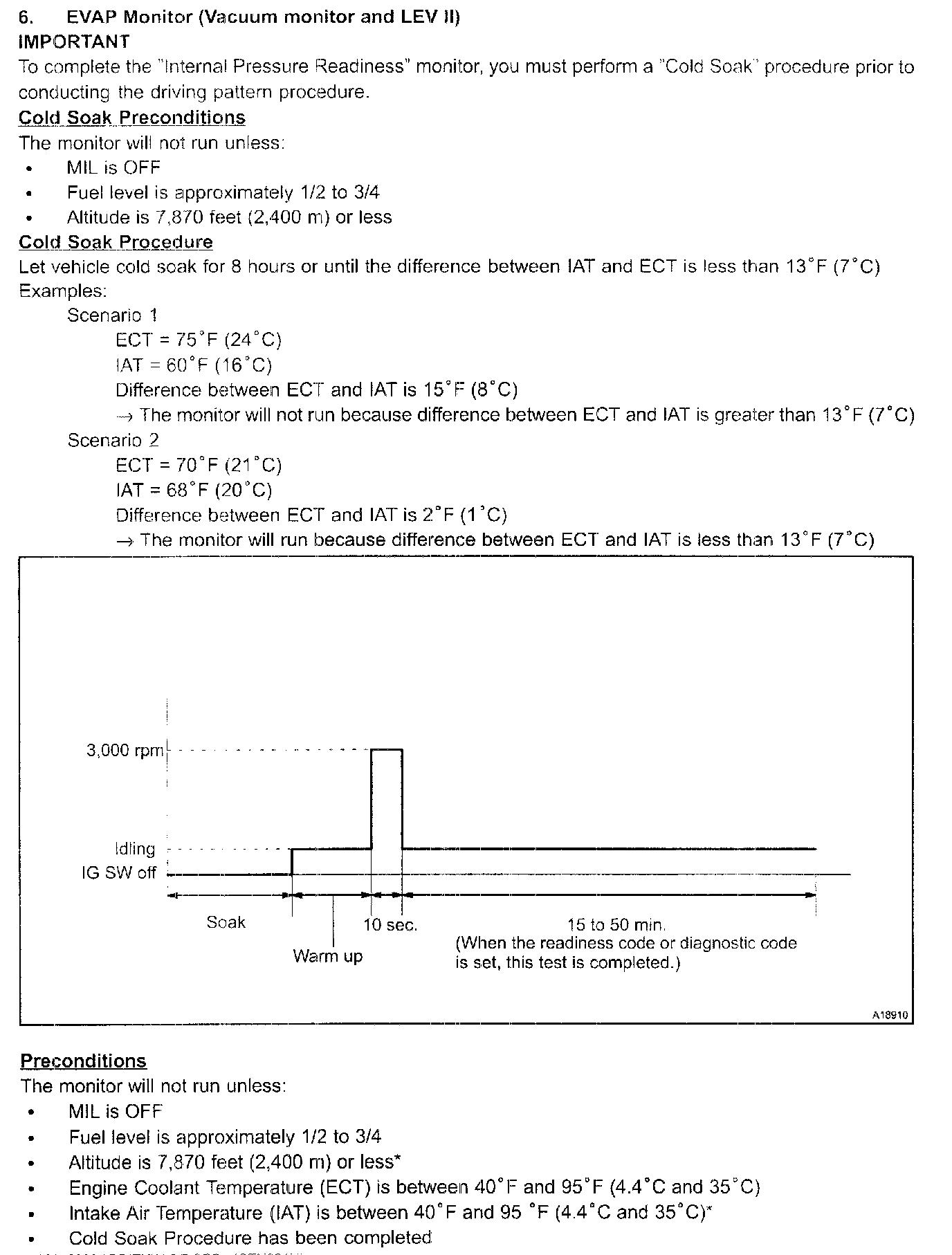

Monitor 6: EVAP Monitor (Vacuum and Lev II)

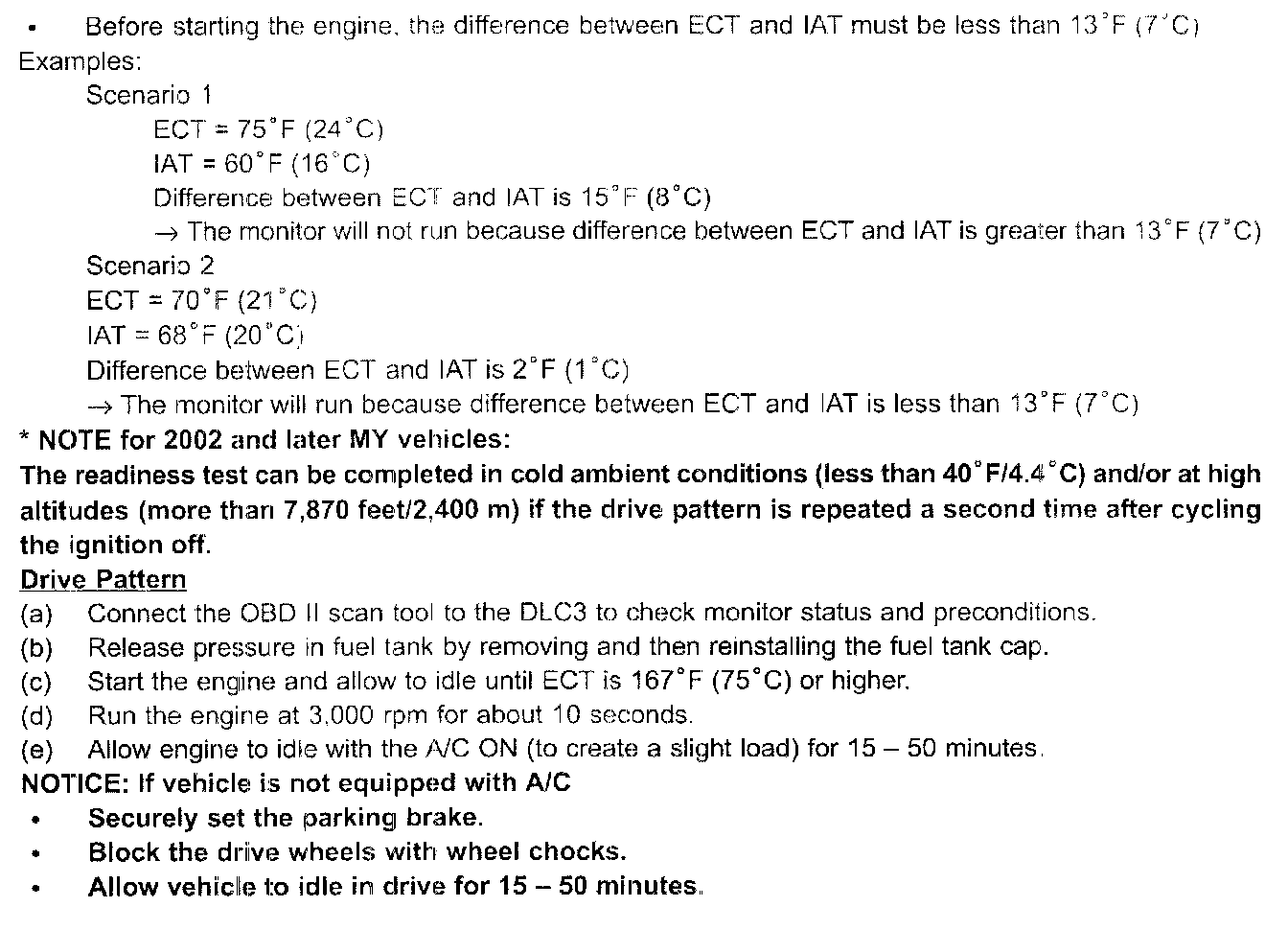

1 of 2:
2 of 2:
