Toyota
>>
2003
>>
Avalon V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>

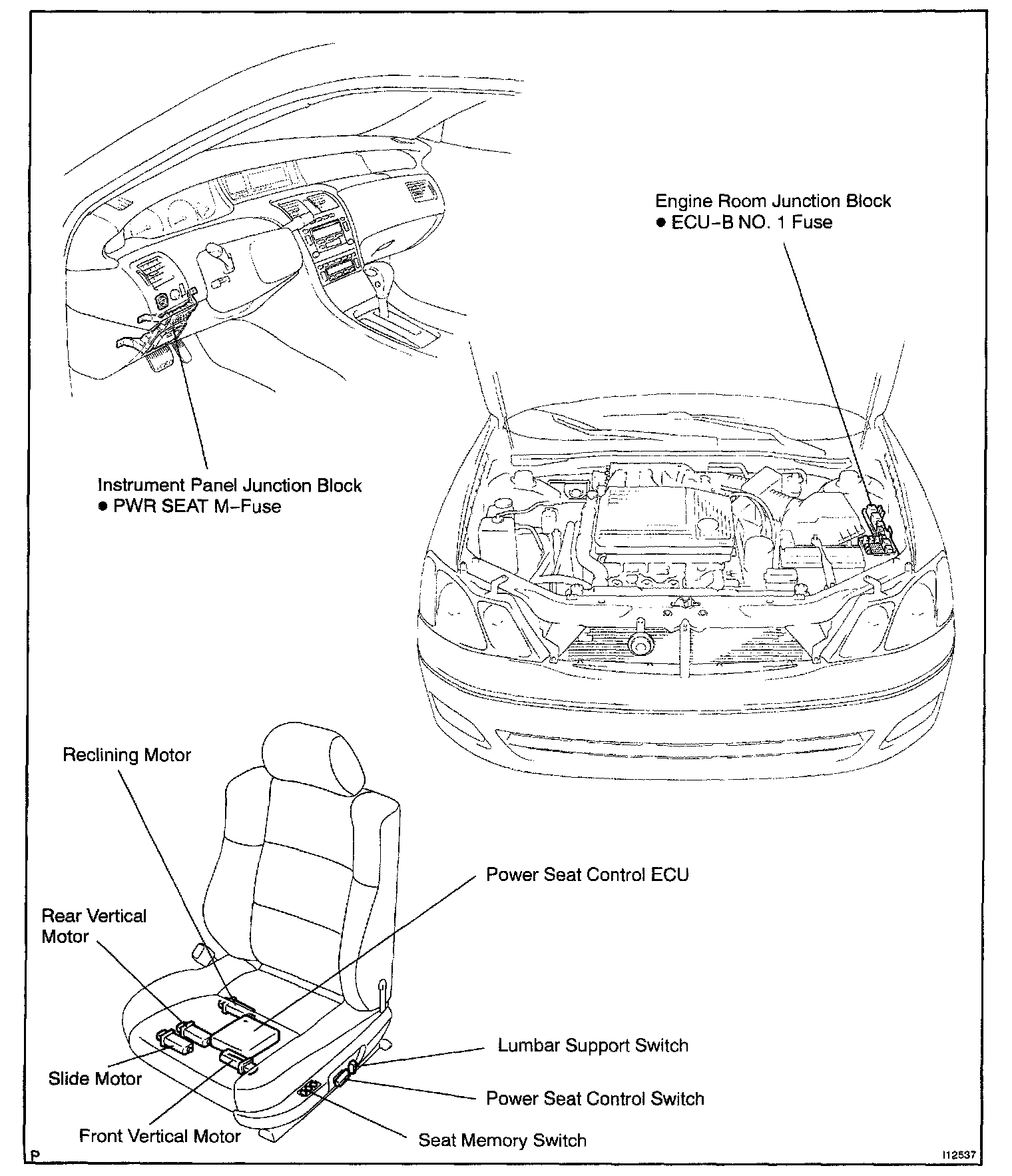

Position of Parts In Seat
Position of Parts In Seat
Bu - Se:
Bu - Se:
Power Seat Control System (w/ Driving Position Memory):
