Fuse Block: Locations
Engine Room R/B:

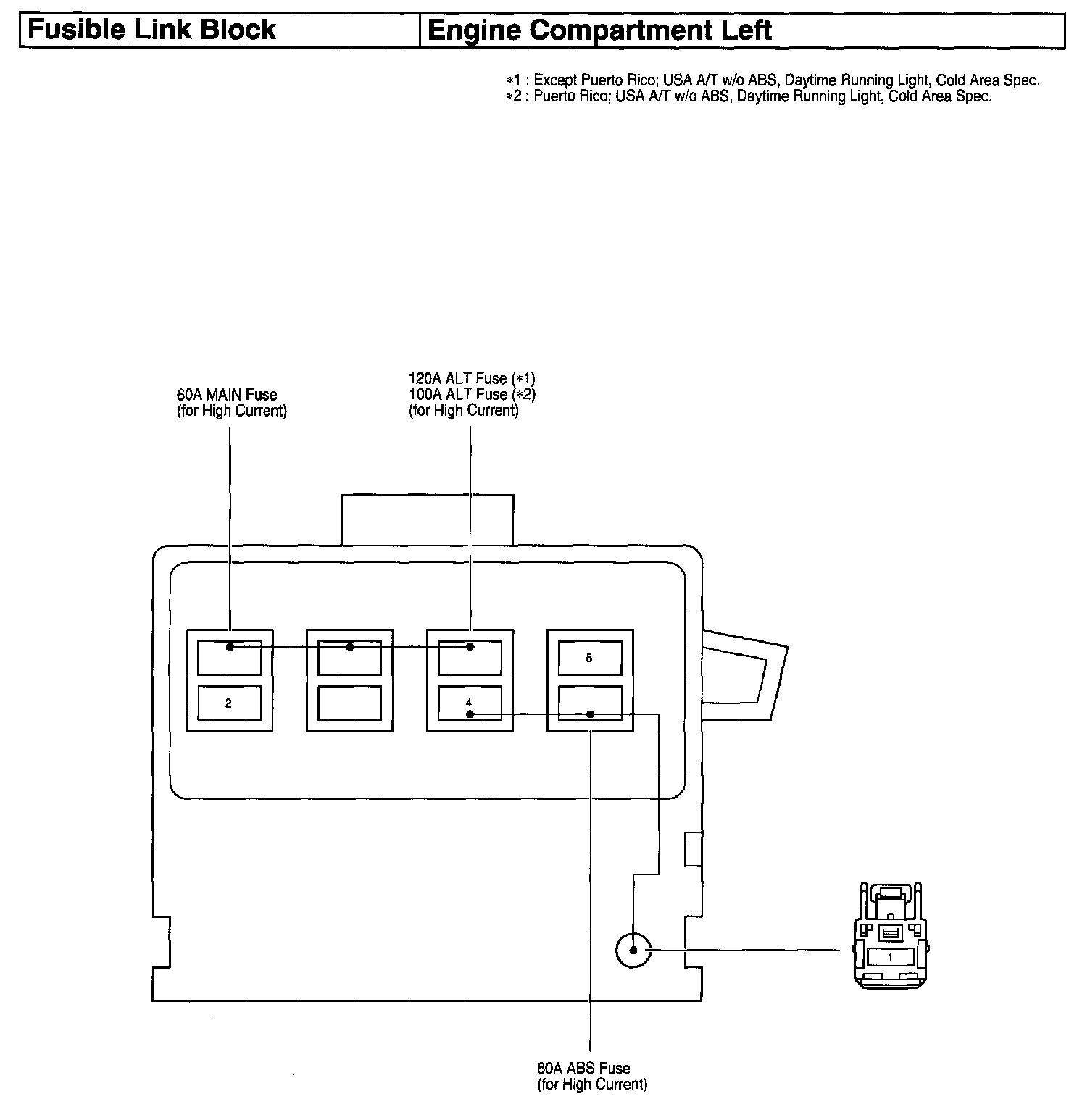

Fusible Link Box:

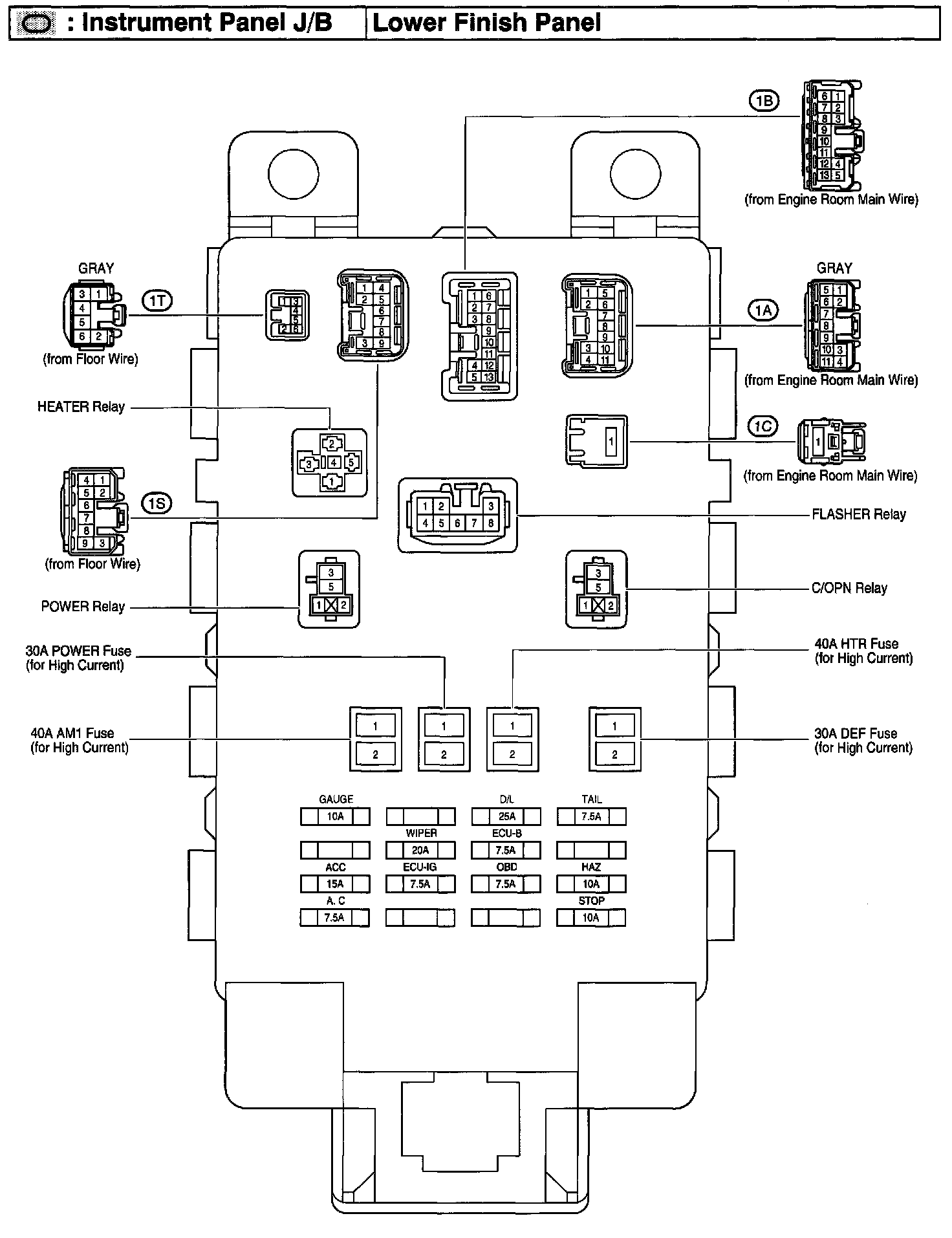

Instrumental Panel J/B Part 1:
Details

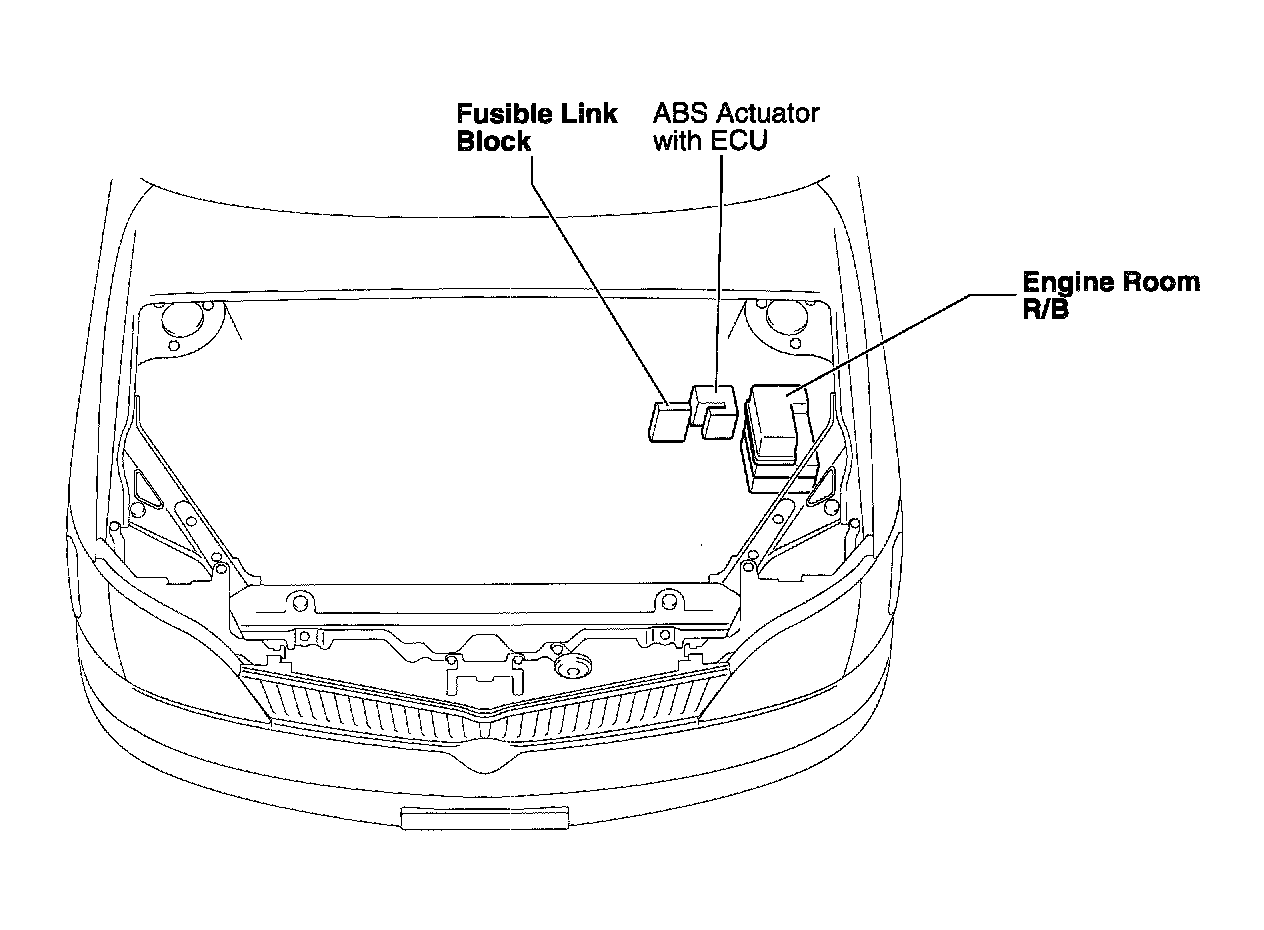

Engine Compartment:
Instrumental Panel:
Locations
