Home >> Toyota >> 2002 >> Echo L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> System Diagram

System Diagram

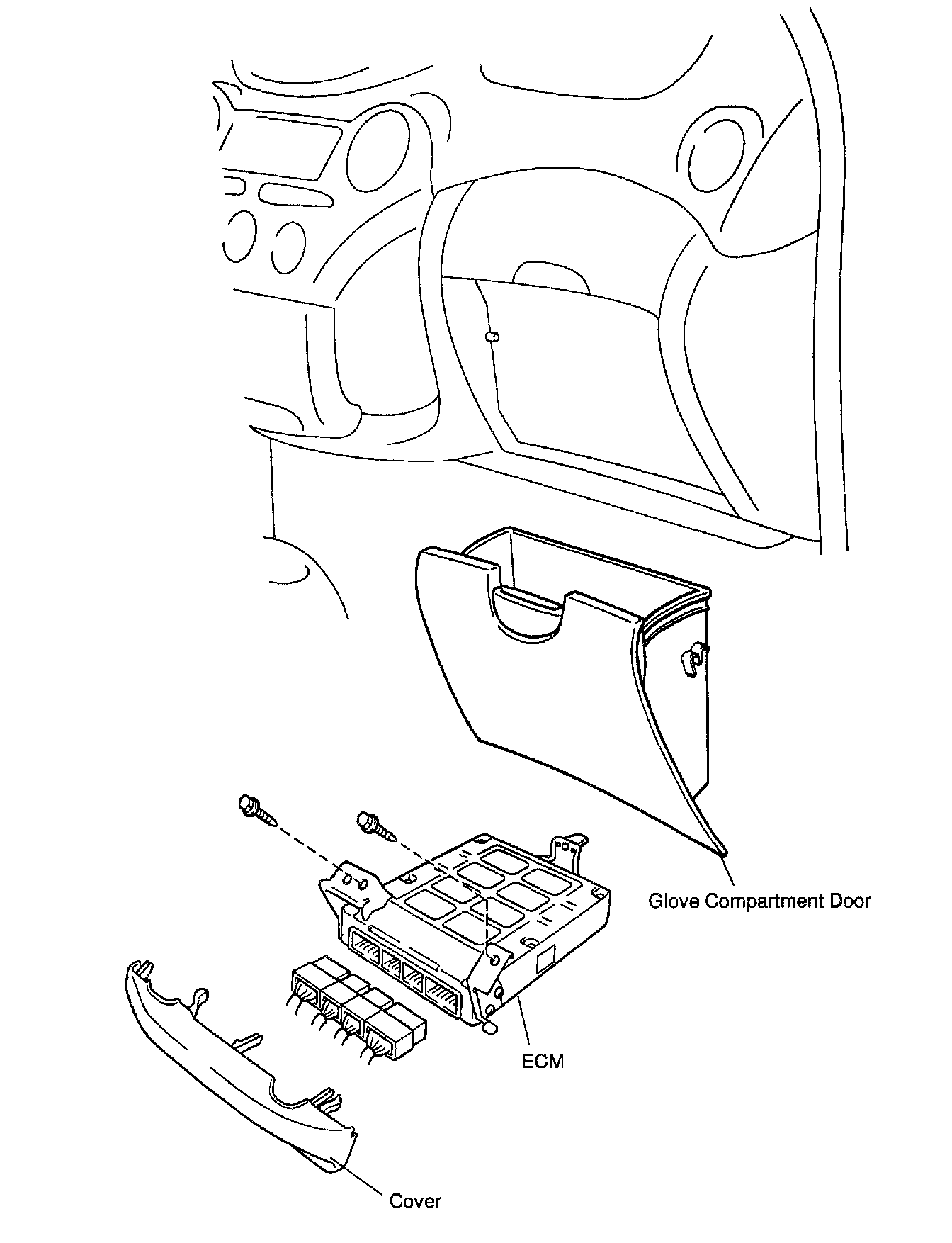

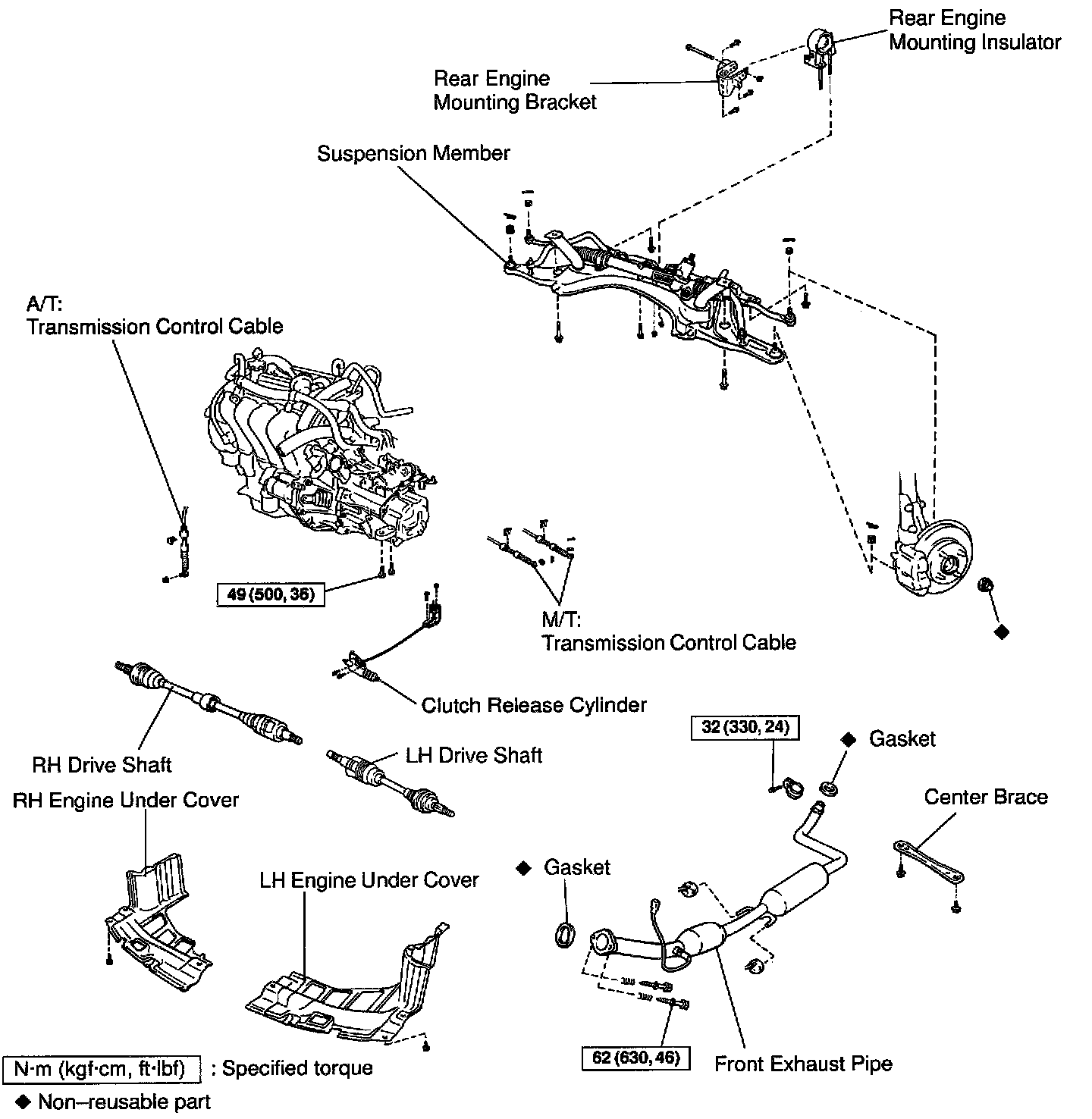

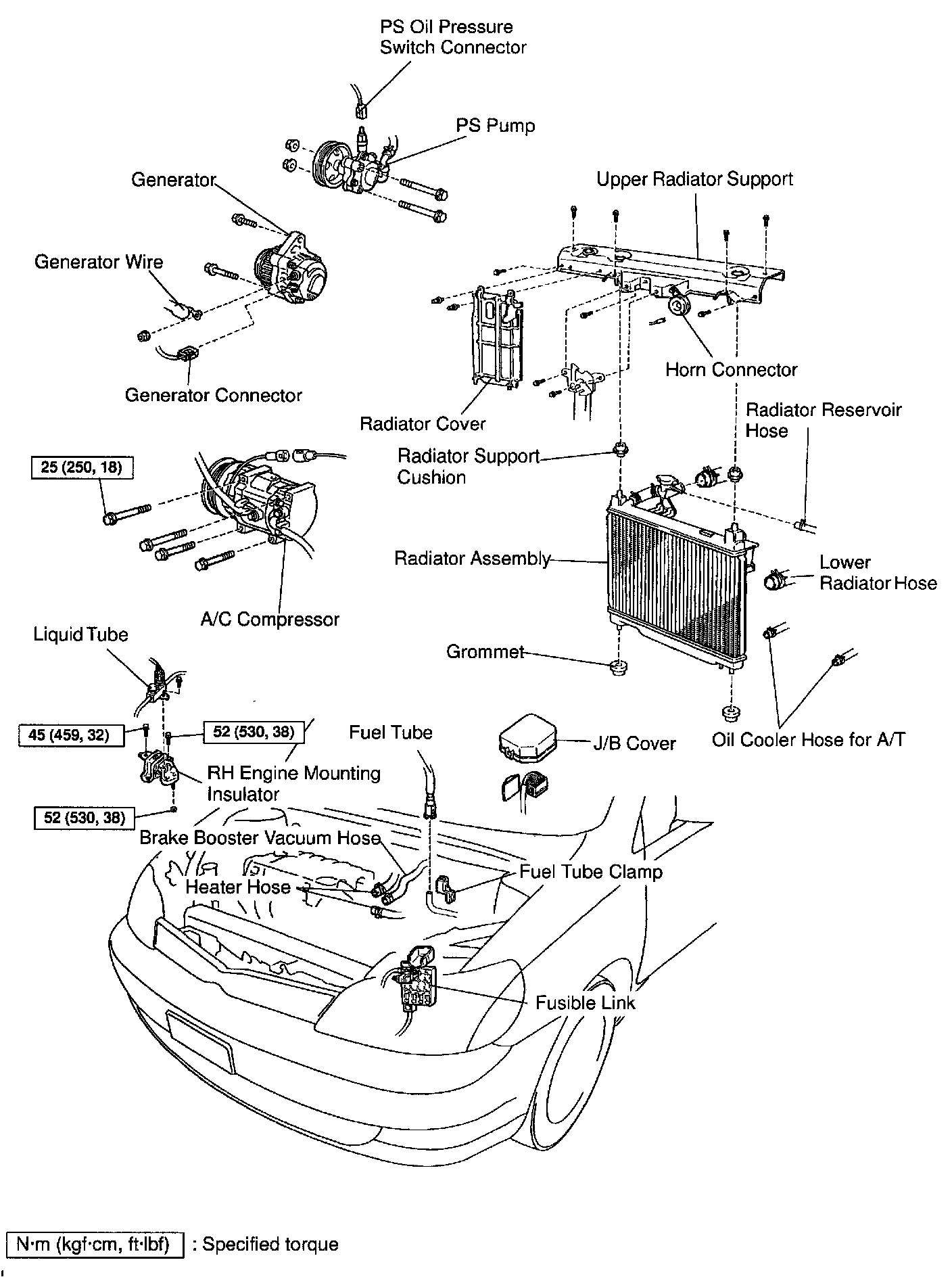

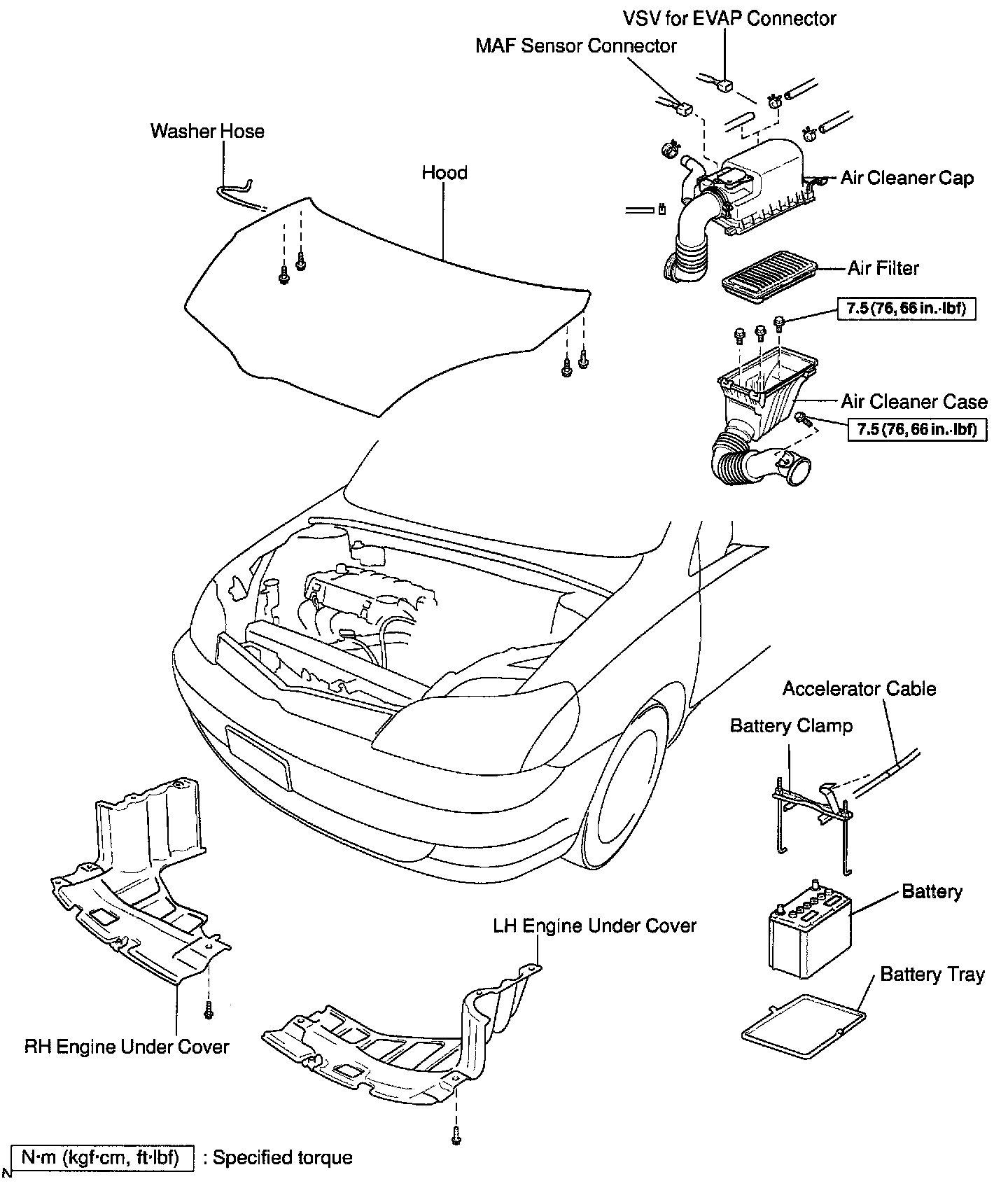

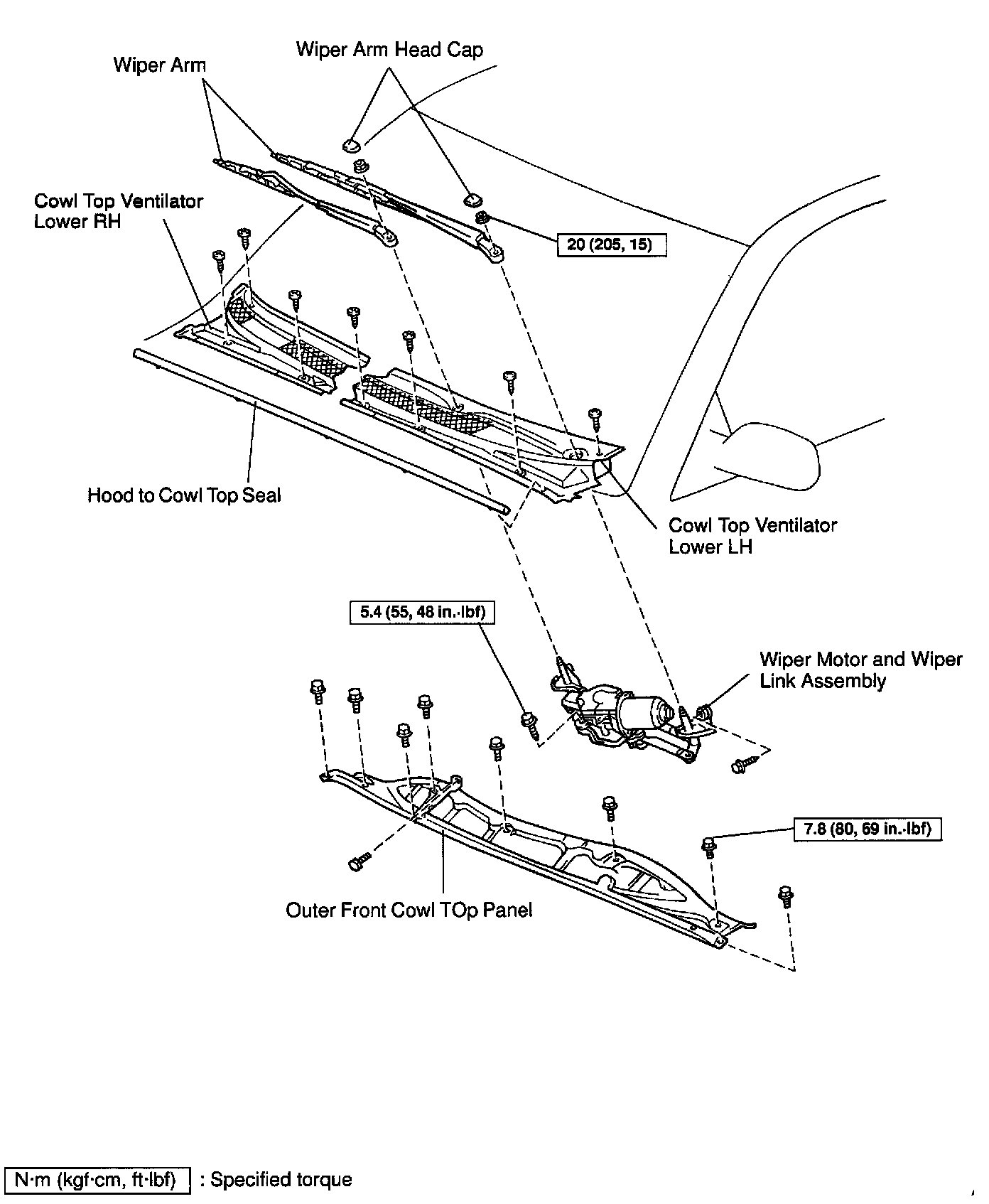

ENGINE UNIT REPLACEMENT W/ RELATED COMPONENTS

Part 1 Of 5:





Part 1 of 5





Part 2 of 5

Part 3 Of 5:





Part 3 of 5

Part 4 Of 5:





Part 4 of 5

Part 5 Of 5:





Part 5 of 5
