Body
Body

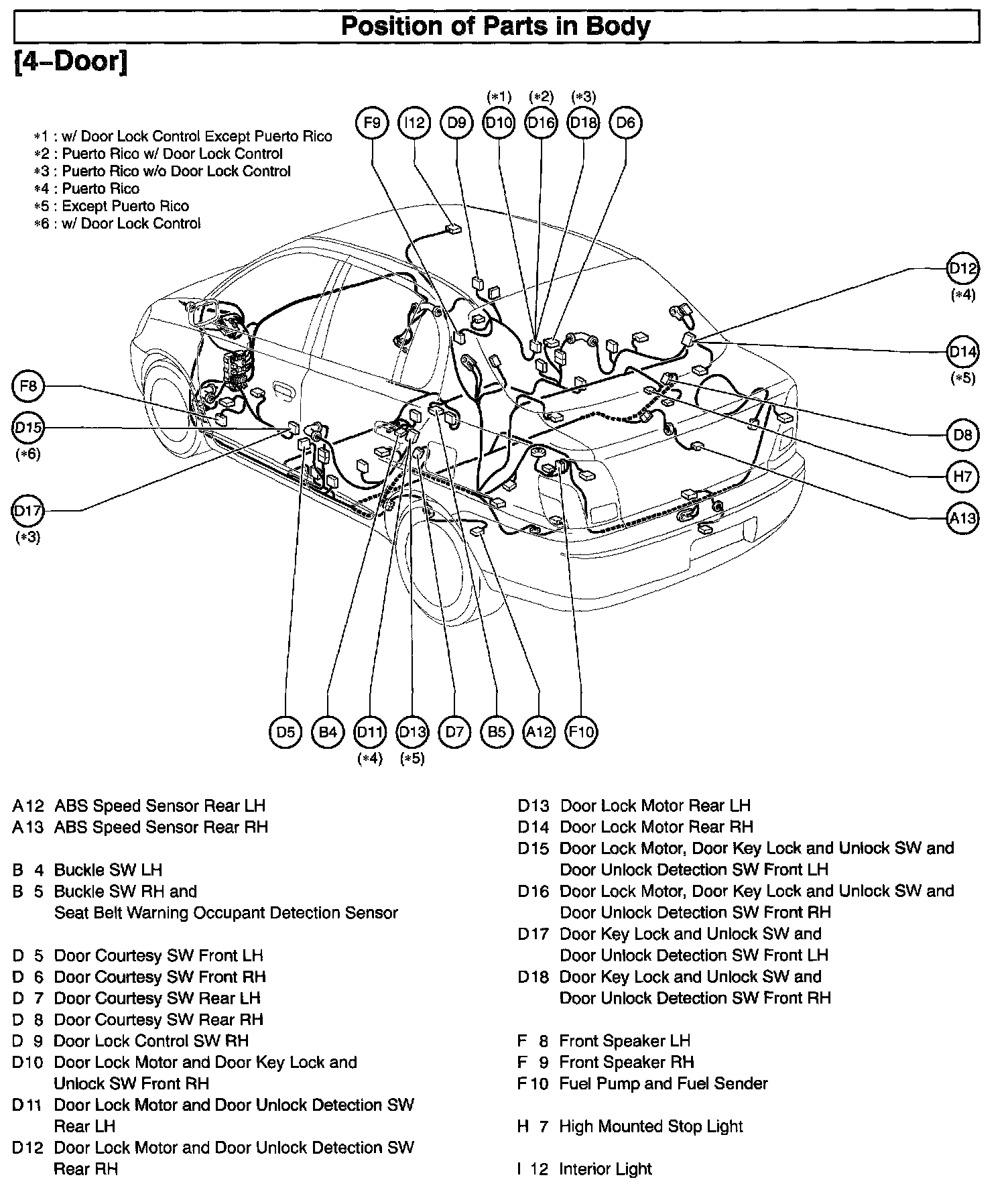

Position Of Parts In Body - 4-Door Part 1:

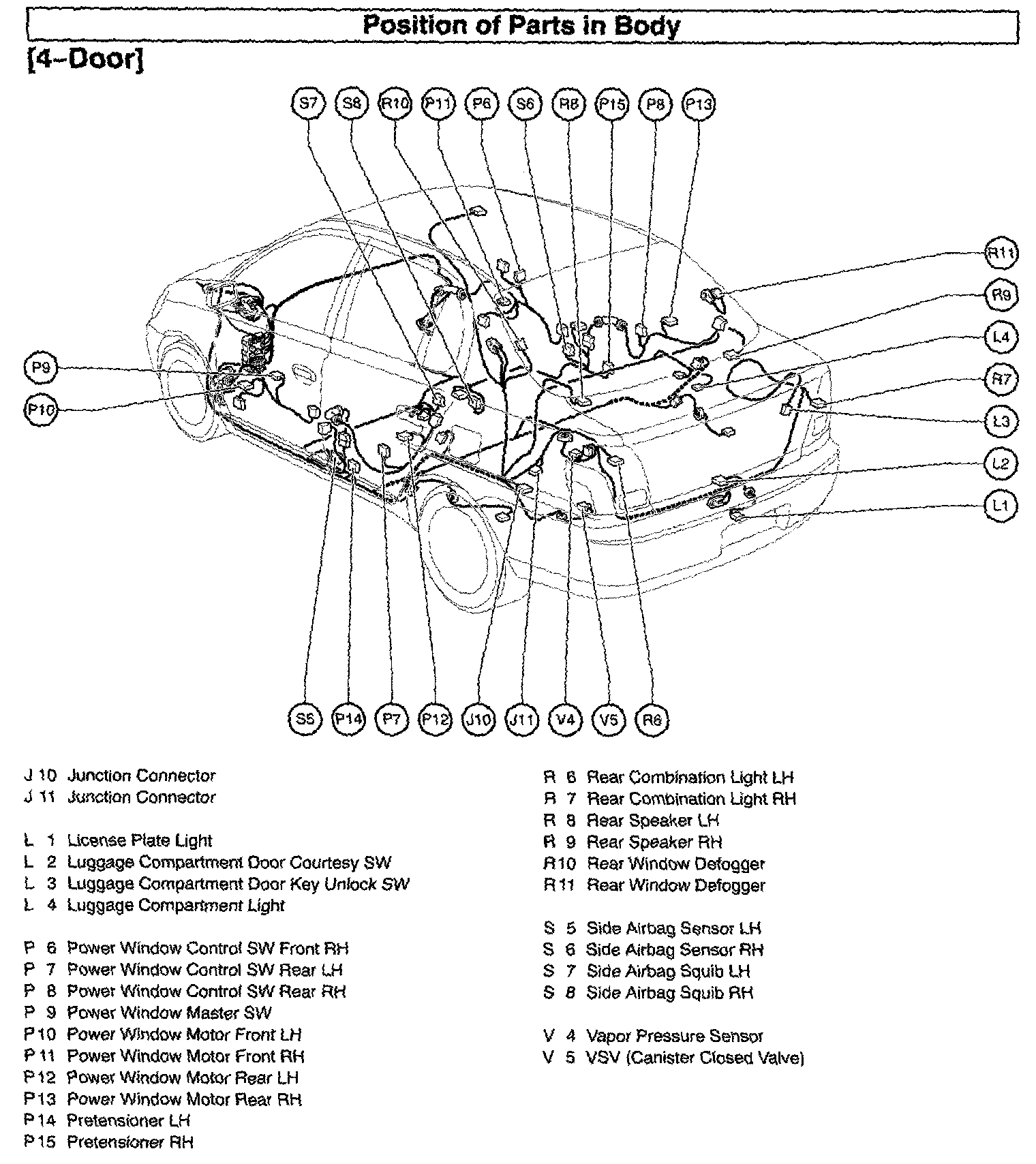

Position Of Parts In Body - 4-Door Part 2:

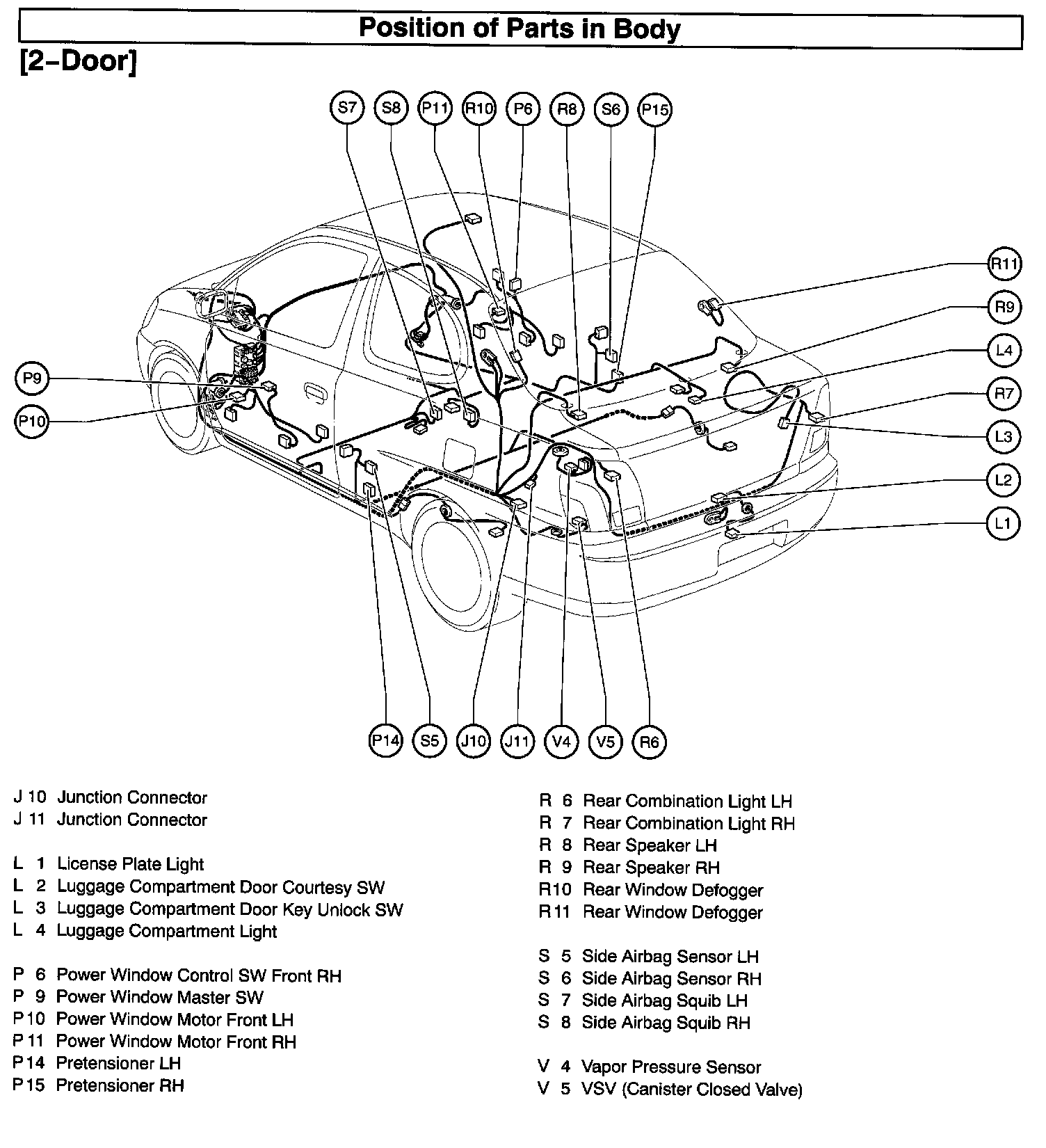

Position Of Parts In Body - 2-Door Part 1:

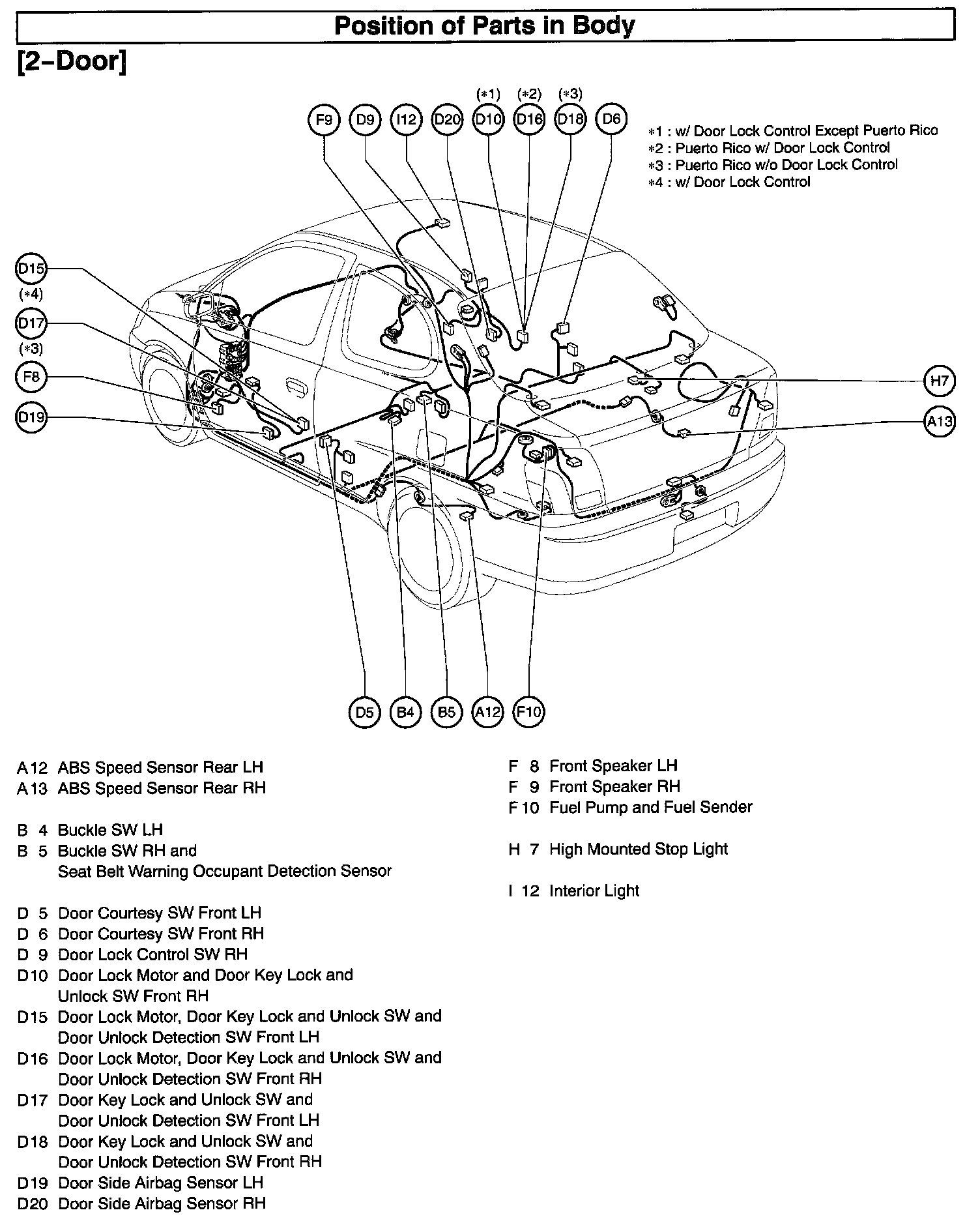

Position Of Parts In Body - 2-Door Part 2:
