Water Pump Torque


Torque Specifications

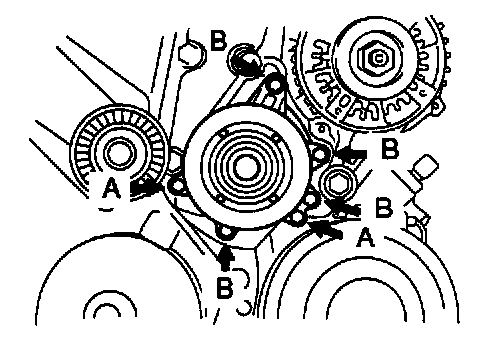

Water Pump W/ Bolts
Bolt A (30 mm) 9 Nm (80 in.lb)
Bolt B (35 mm) 11 Nm (8 ft.lb)
