System Specifications

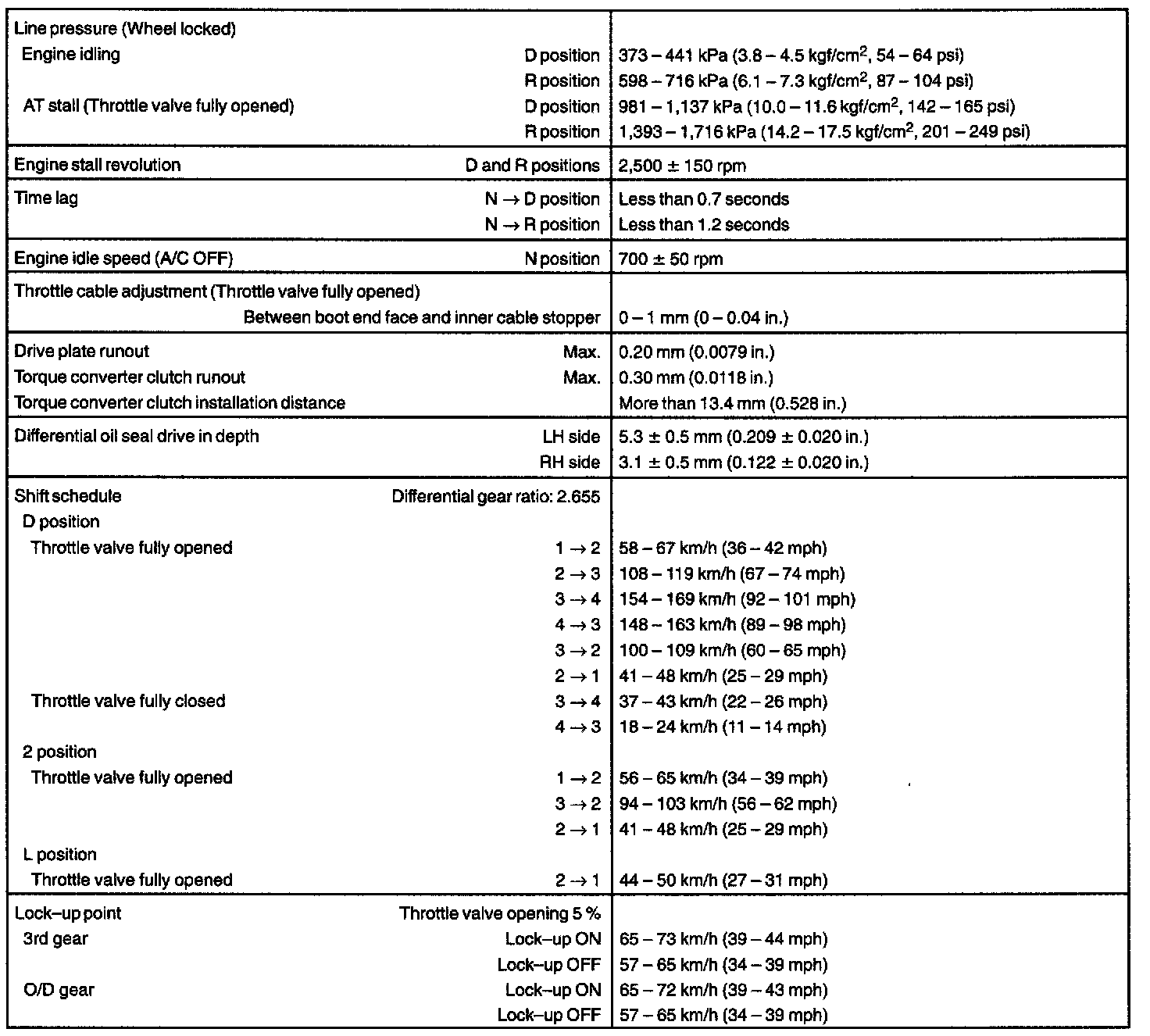

AUTOMATIC TRANSAXLE (A131L) SERVICE DATA:

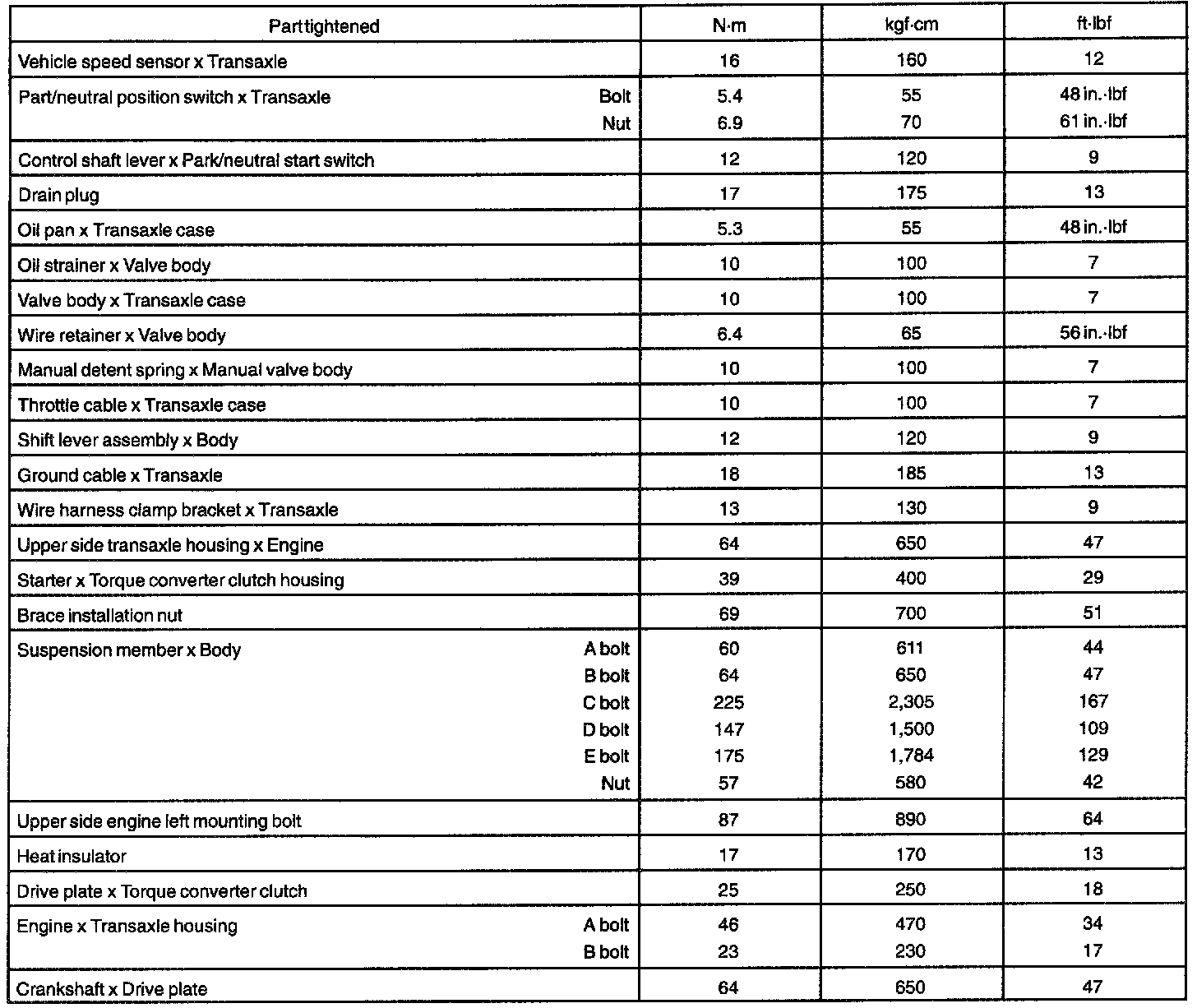

TORQUE SPECIFICATION:





AUTOMATIC TRANSAXLE (A131L)

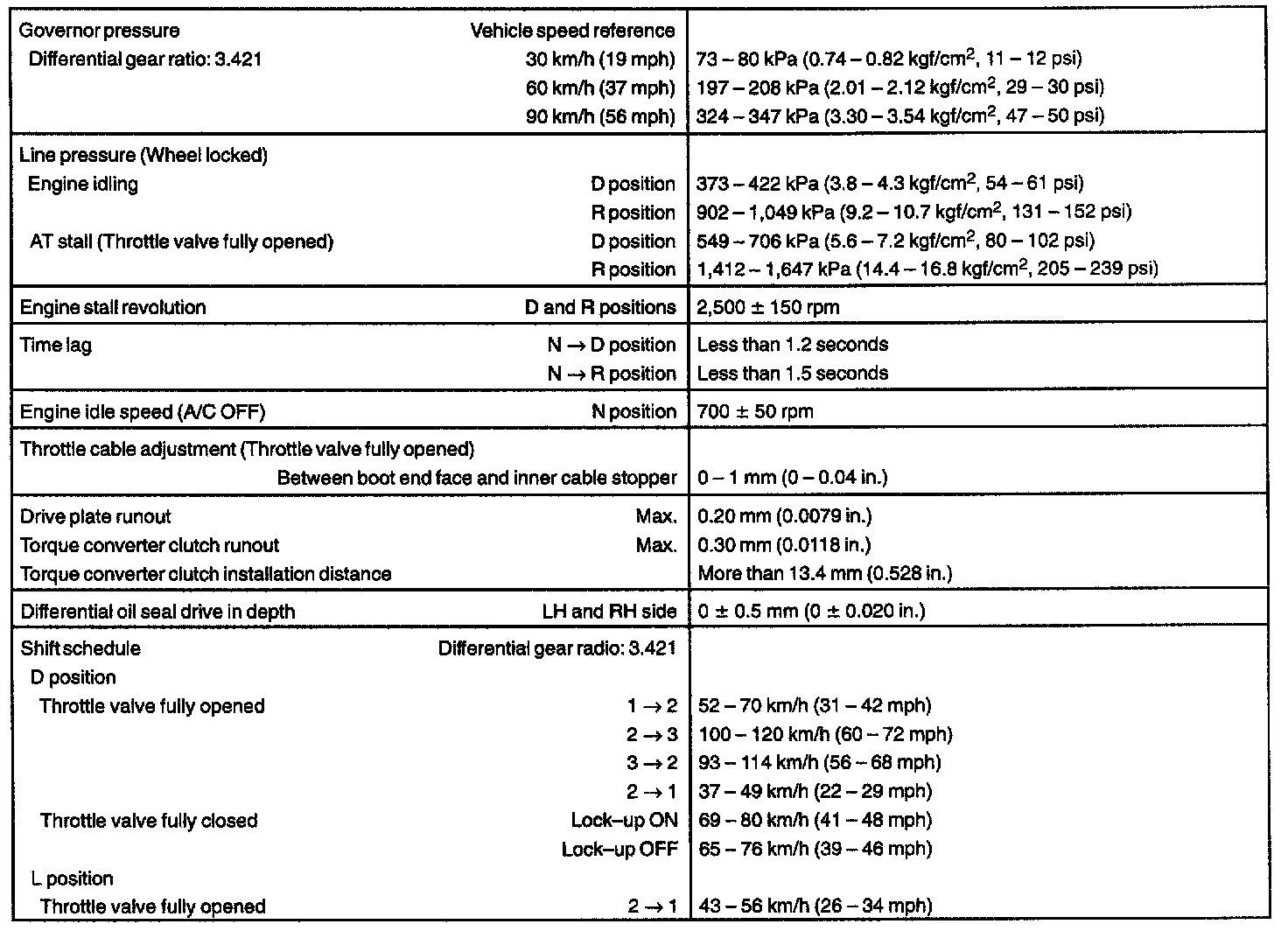

AUTOMATIC TRANSAXLE (A245E) SERVICE DATA:

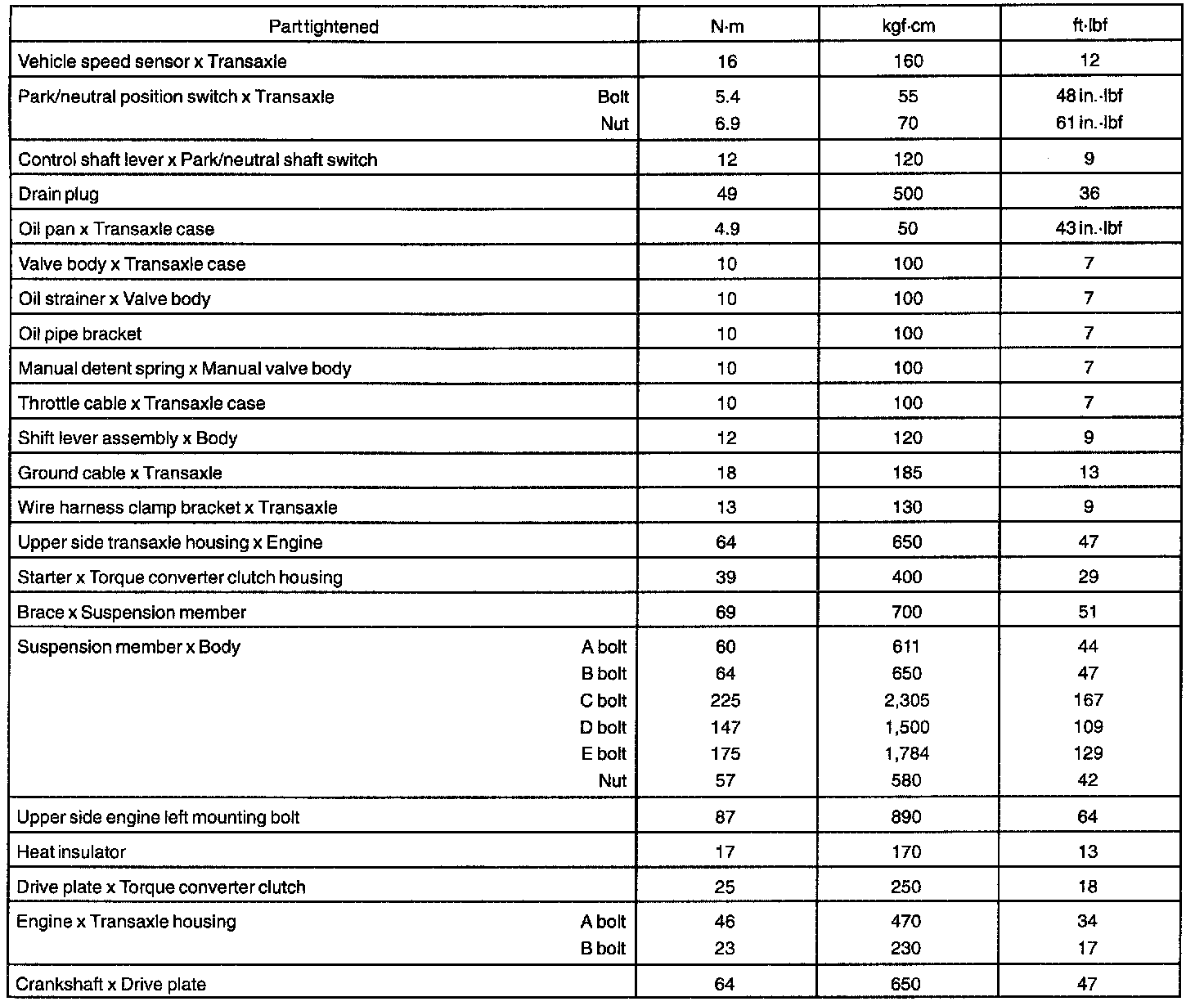

TORQUE SPECIFICATION:





AUTOMATIC TRANSAXLE (A245E)
