Home
>>
Toyota
>>
2002
>>
Corolla LE Sedan L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Locations
>>

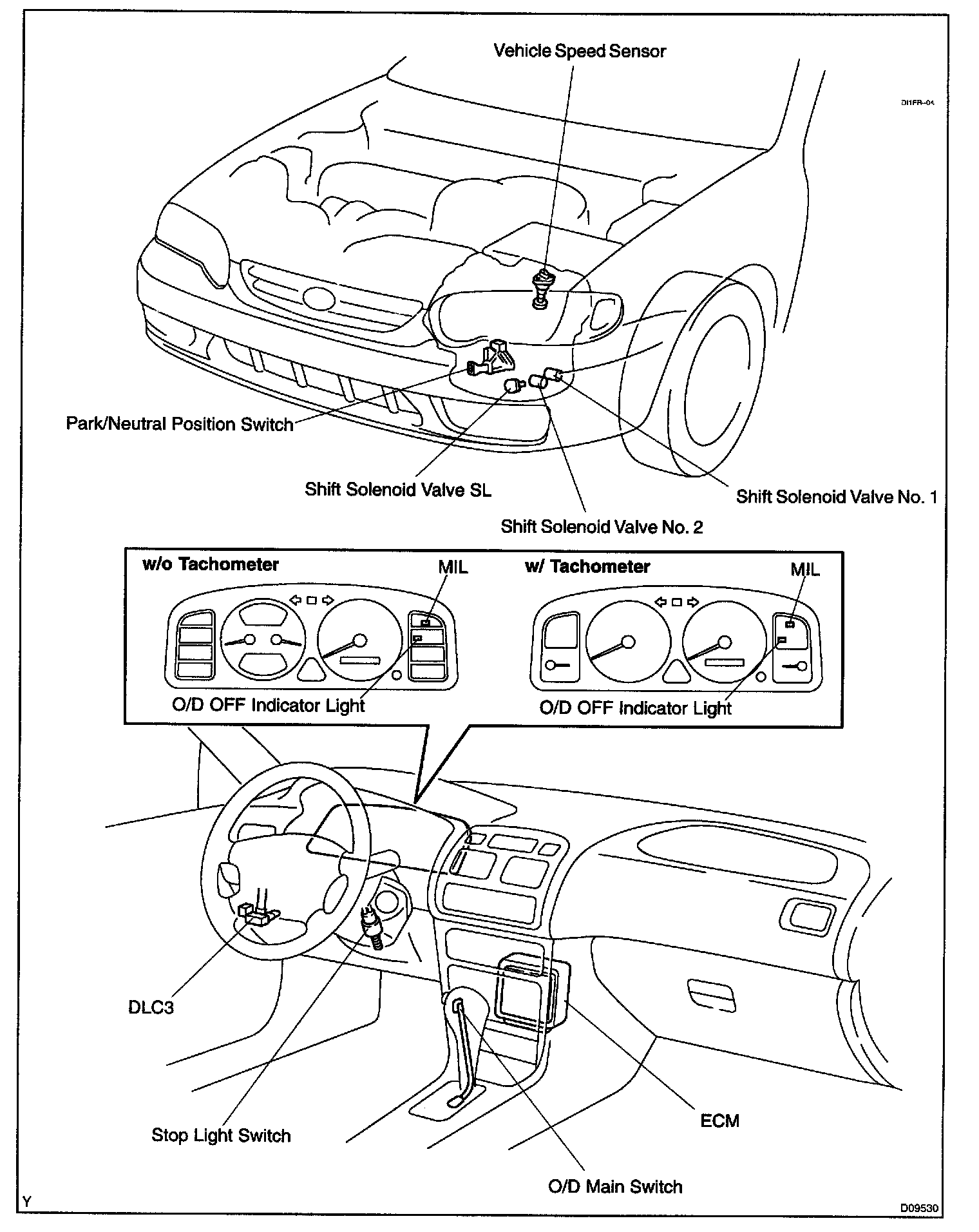

Component Locations
Component Locations
Automatic Transaxle:
