Camshaft Position Sensor: Service and Repair
CAMSHAFT POSITION SENSORREMOVAL

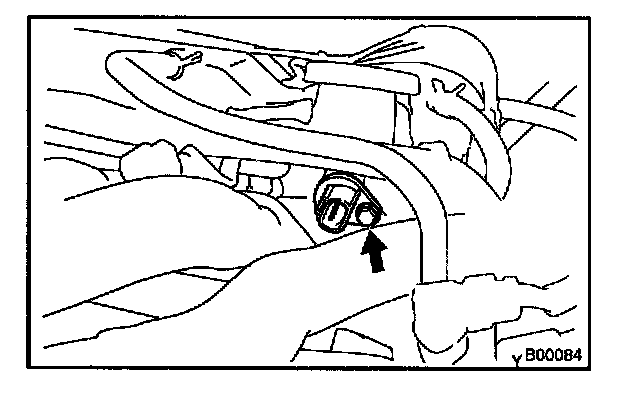

REMOVE CAMSHAFT POSITION SENSOR
a. Disconnect the sensor connector.
b. Remove the bolt and sensor.
Torque: 9 N.m (92 kgf.cm, 79 in.lbf)
INSTALLATION
Installation is in the reverse order of removal.
