Ground Circuits
Ground Circuits

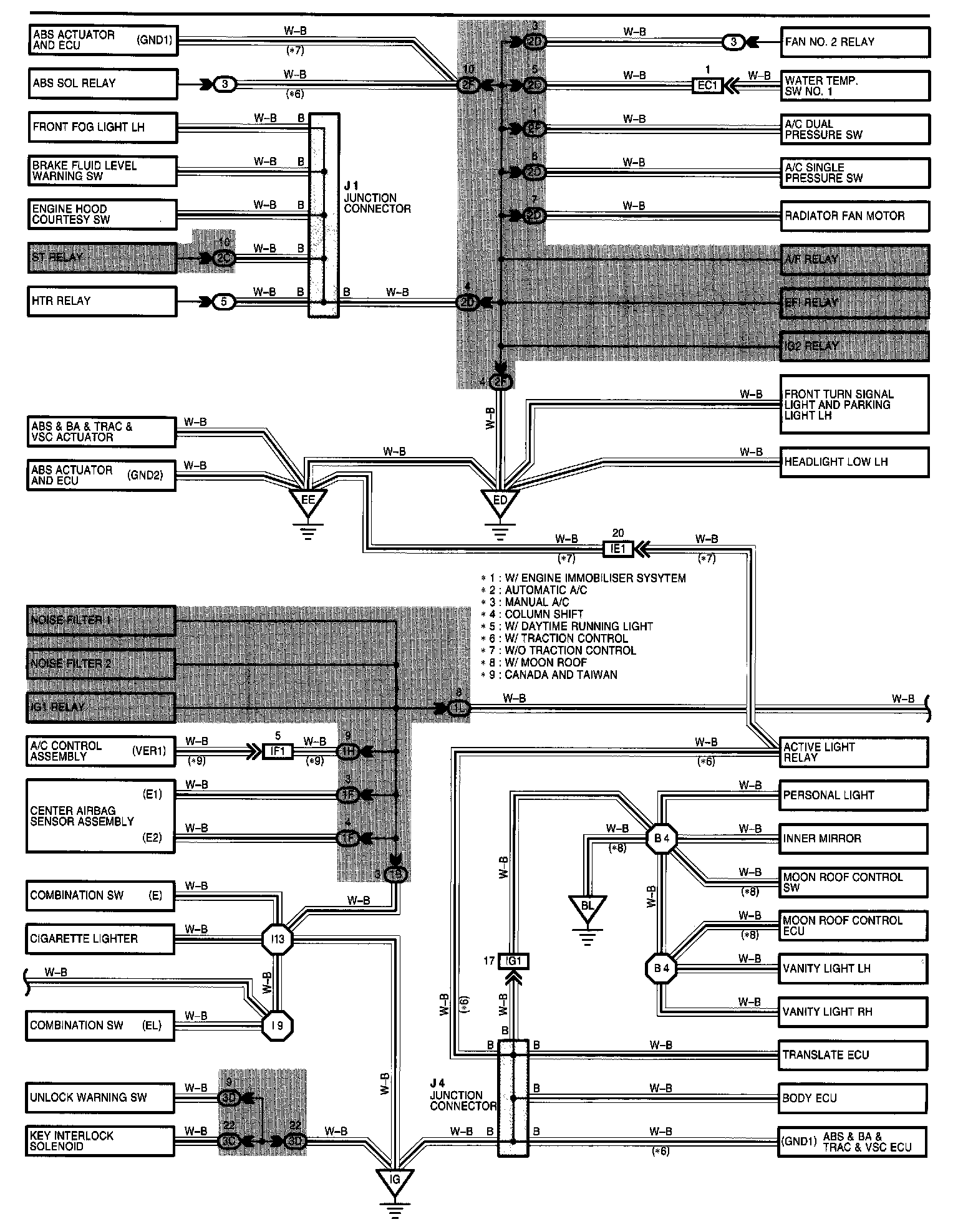

Grounds EA, EB, EC, IJ:

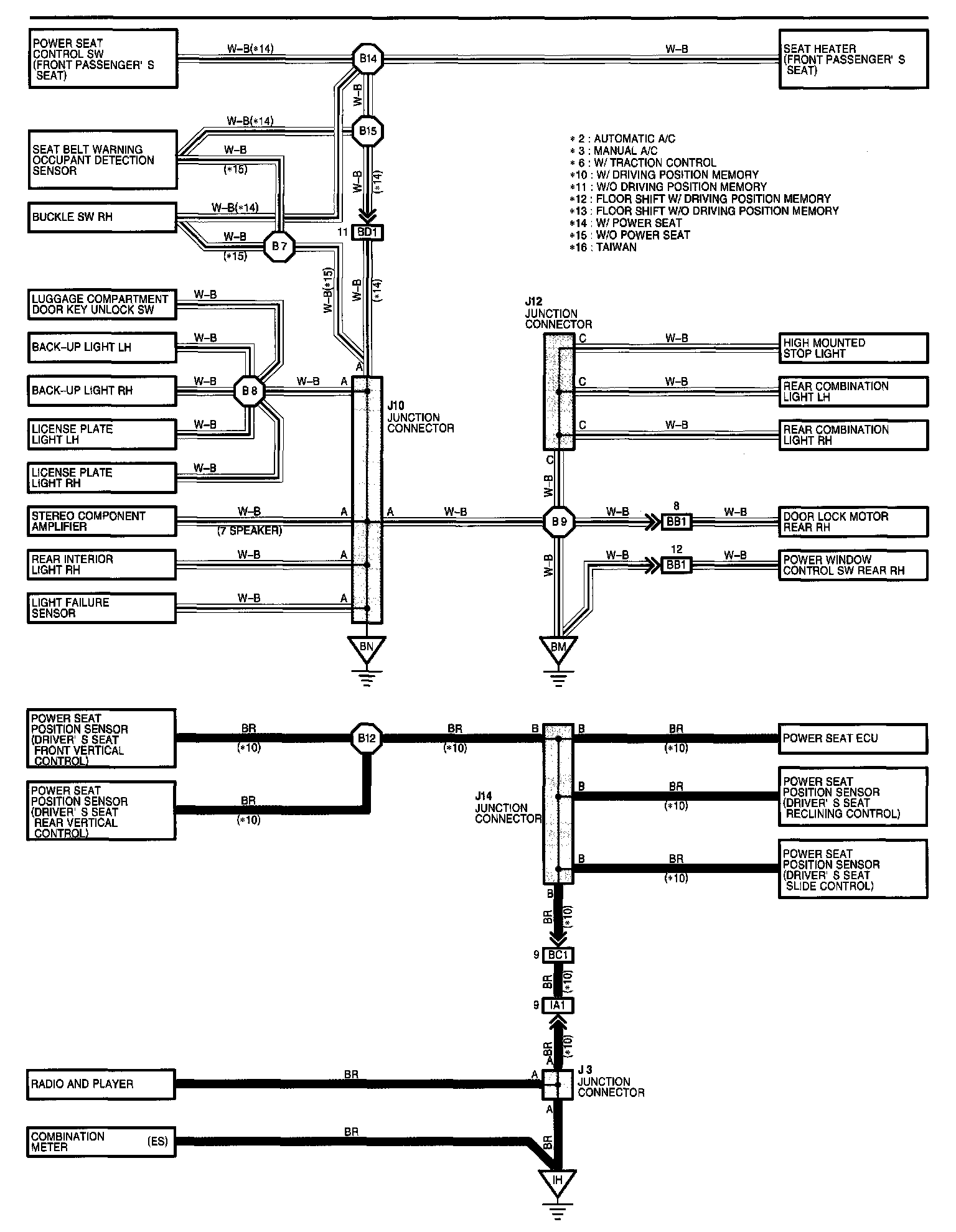

Grounds BL, ED, EE, IG:
Grounds BK, IF, II:
Grounds BM, BN, IH:
