Home >> Toyota >> 2002 >> Avalon XLS V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Body and Frame >> Seats >> Locations >> Component Locations

Component Locations

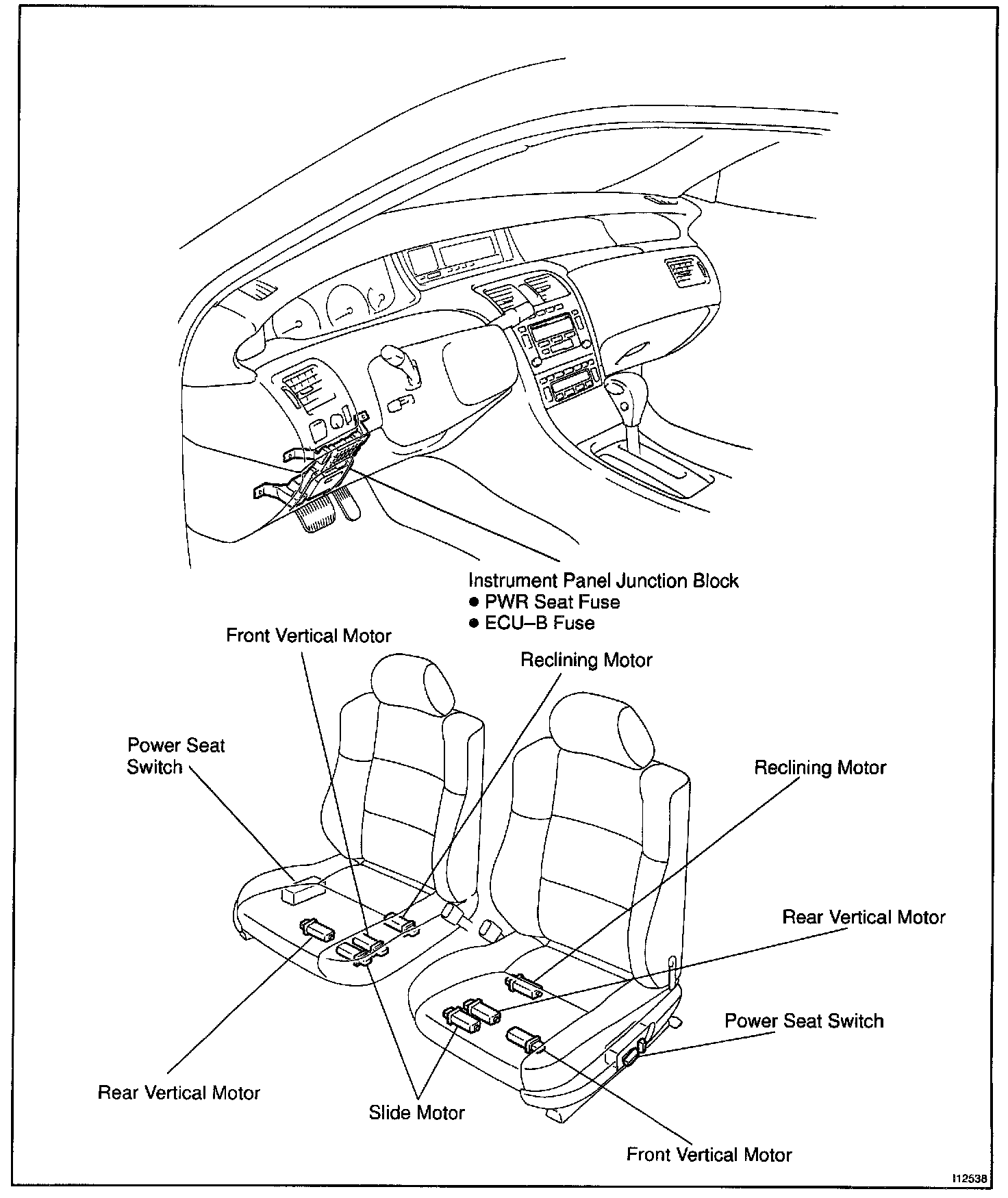

Power Seat Control System (w/o Driving Position Memory):



Power Seat Control System (w/ Driving Position Memory):
