Disassembly and Reassembly

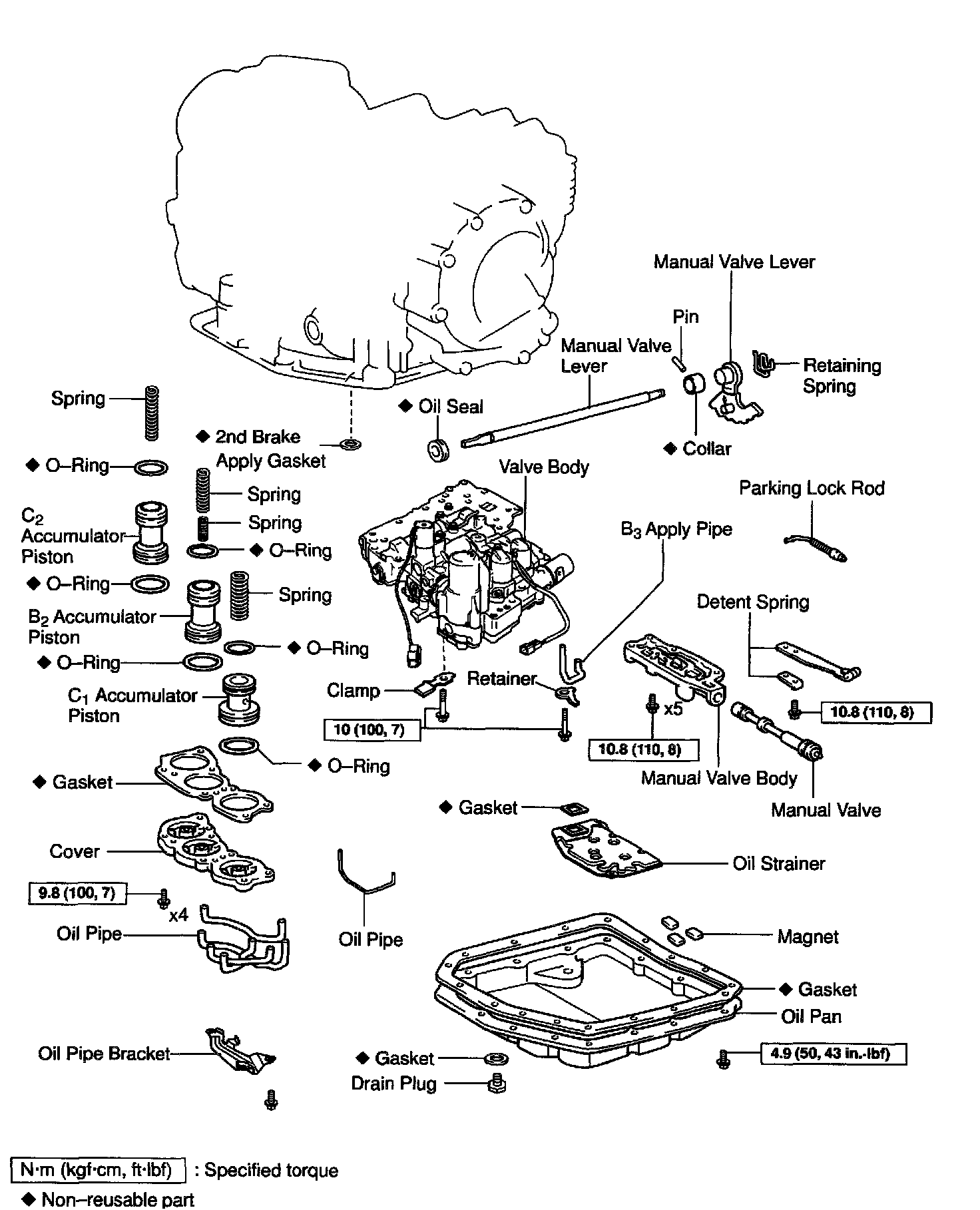

AUTOMATIC TRANSAXLE OVERHAUL W/ RELATED COMPONENTS





Part 1 of 4





Part 2 of 4





Part 3 of 4





Part 4 of 4
