Application Charts

Sample Seat Belt Extender Customer Information Label

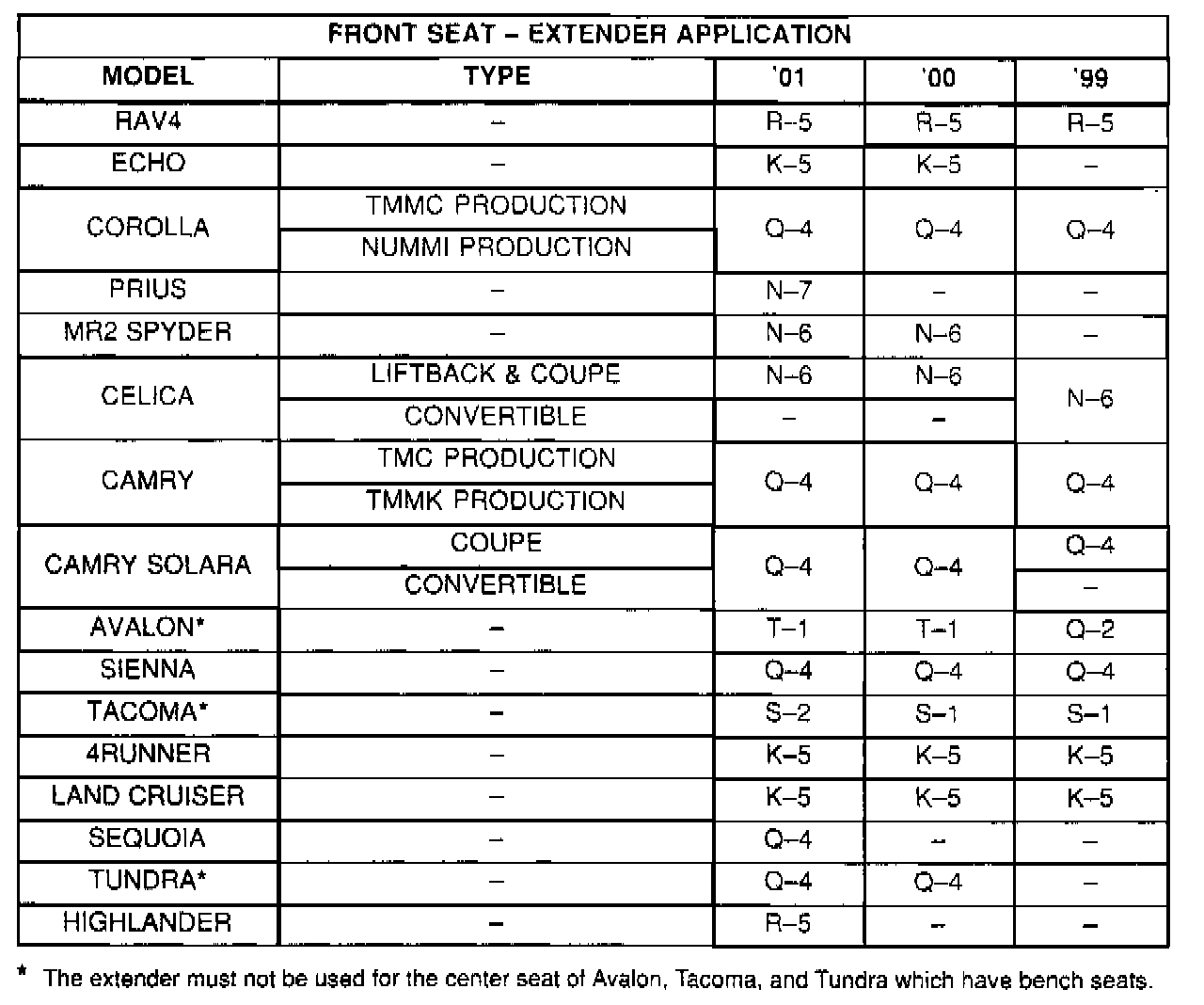

Front Seat Belt Extender Applications

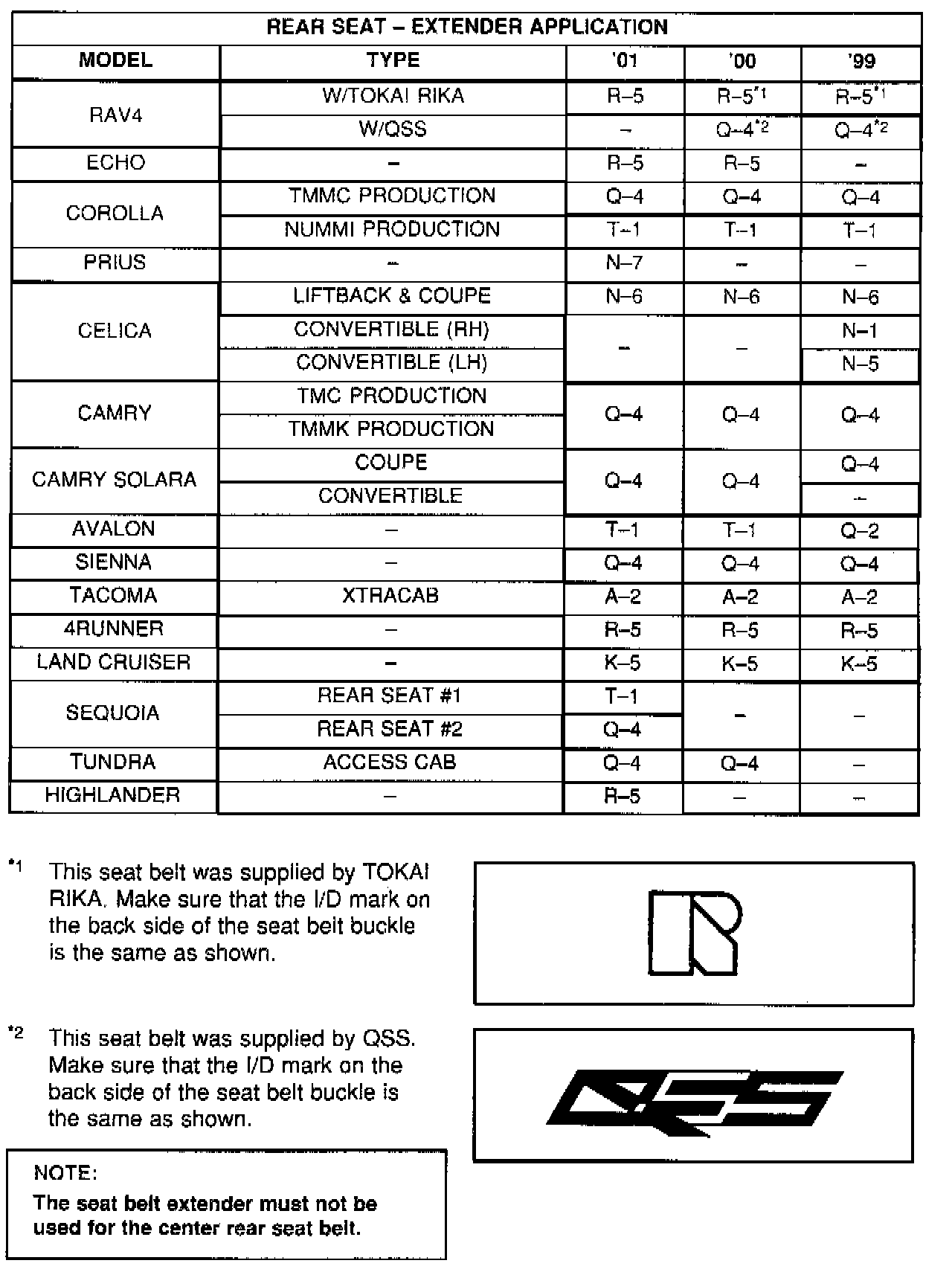

Rear Seat Belt Extender Applications
