Air Conditioning System

CIRCUIT DESCRIPTION

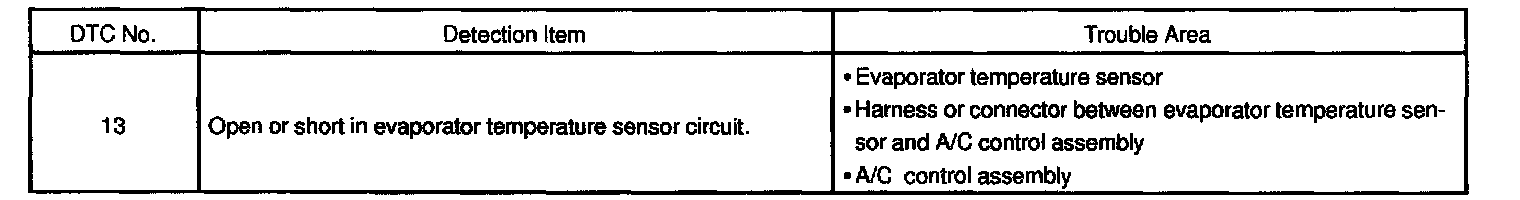

Detection Item:

This sensor detects the temperature inside the A/C unit and sends the appropriate signals to the A/C control assembly.

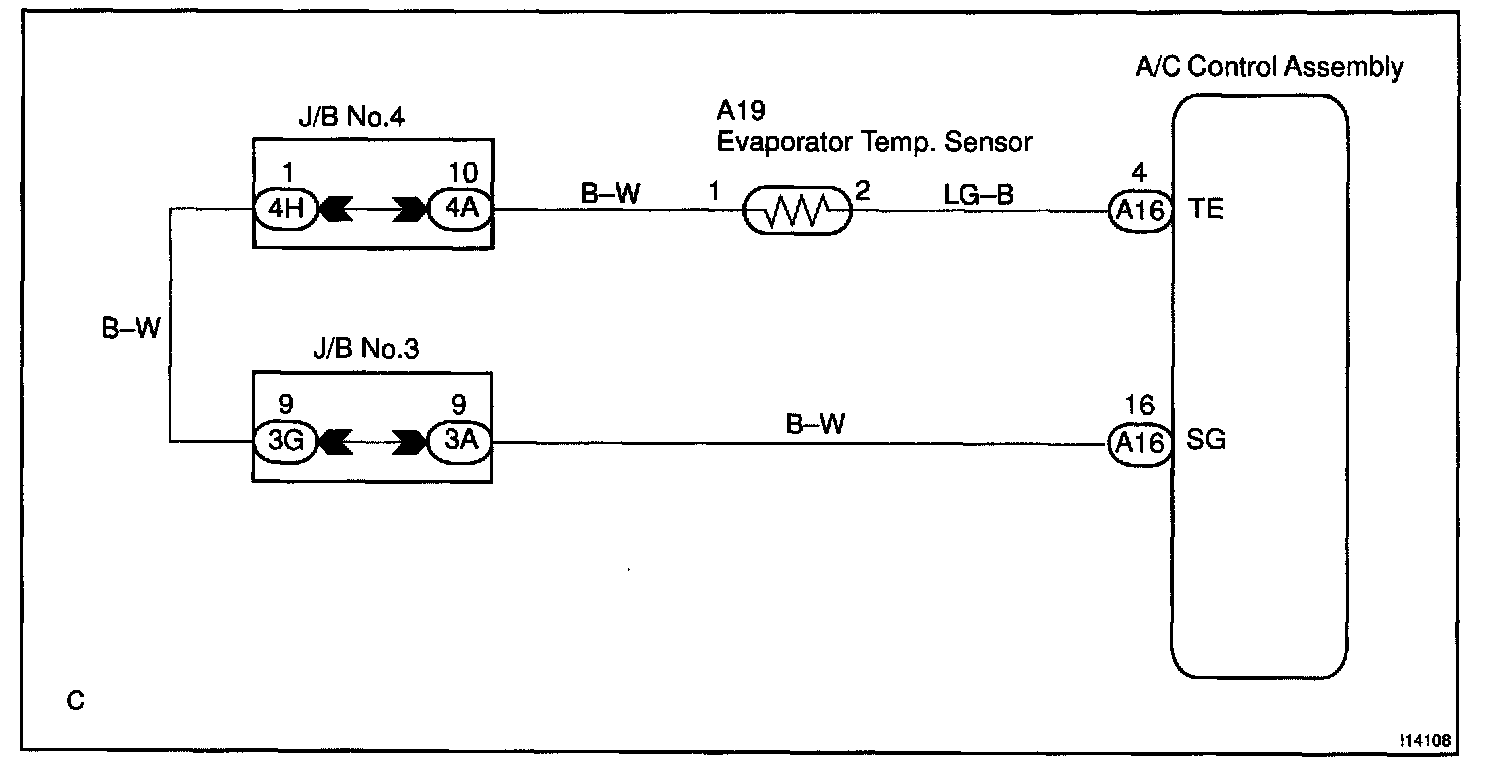

Wiring Diagram:

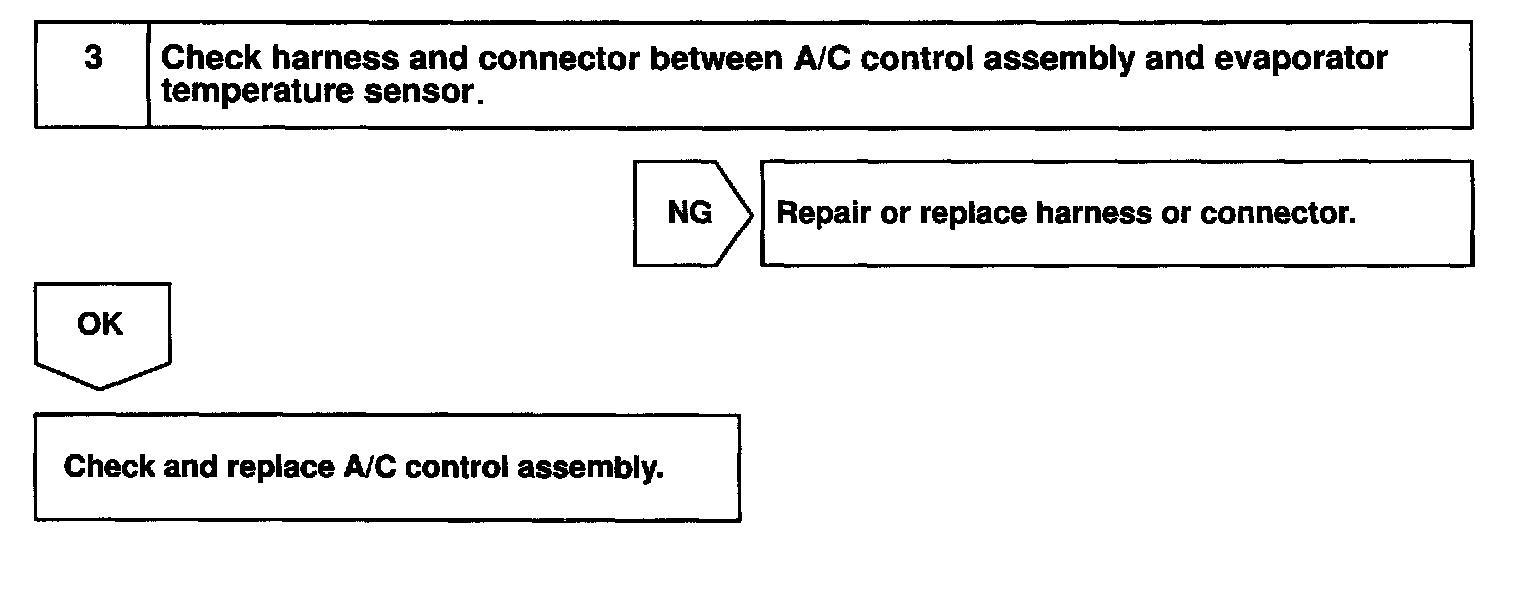

Steps 1 - 2:

Step 3:

INSPECTION PROCEDURE
