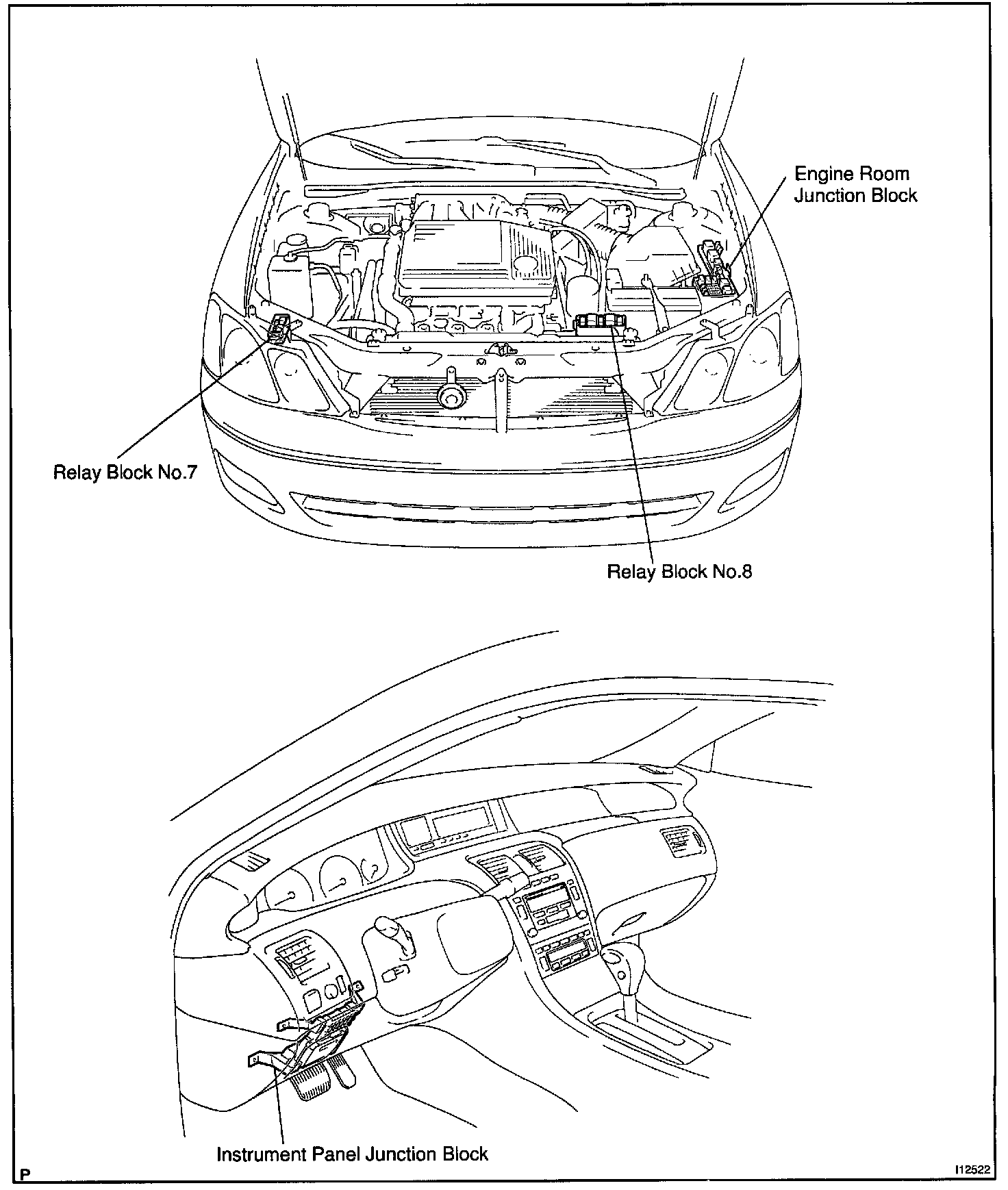

Component Locations

Power Source:



Engine Room Junction Block:



Driver Side Junction Block:



w/ Day Time Running Light:
