Parts Location




PARTS LOCATION

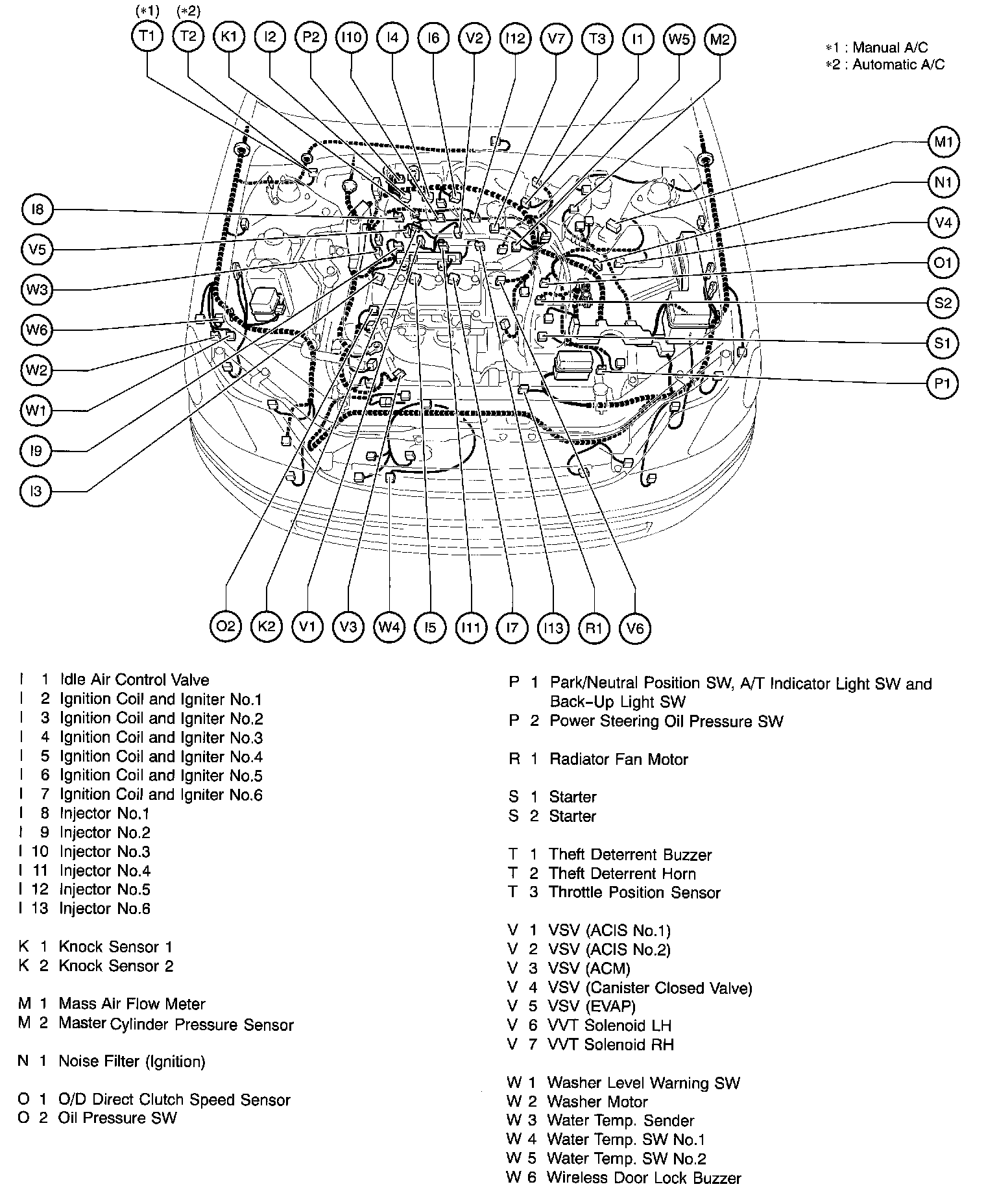

FIG 44

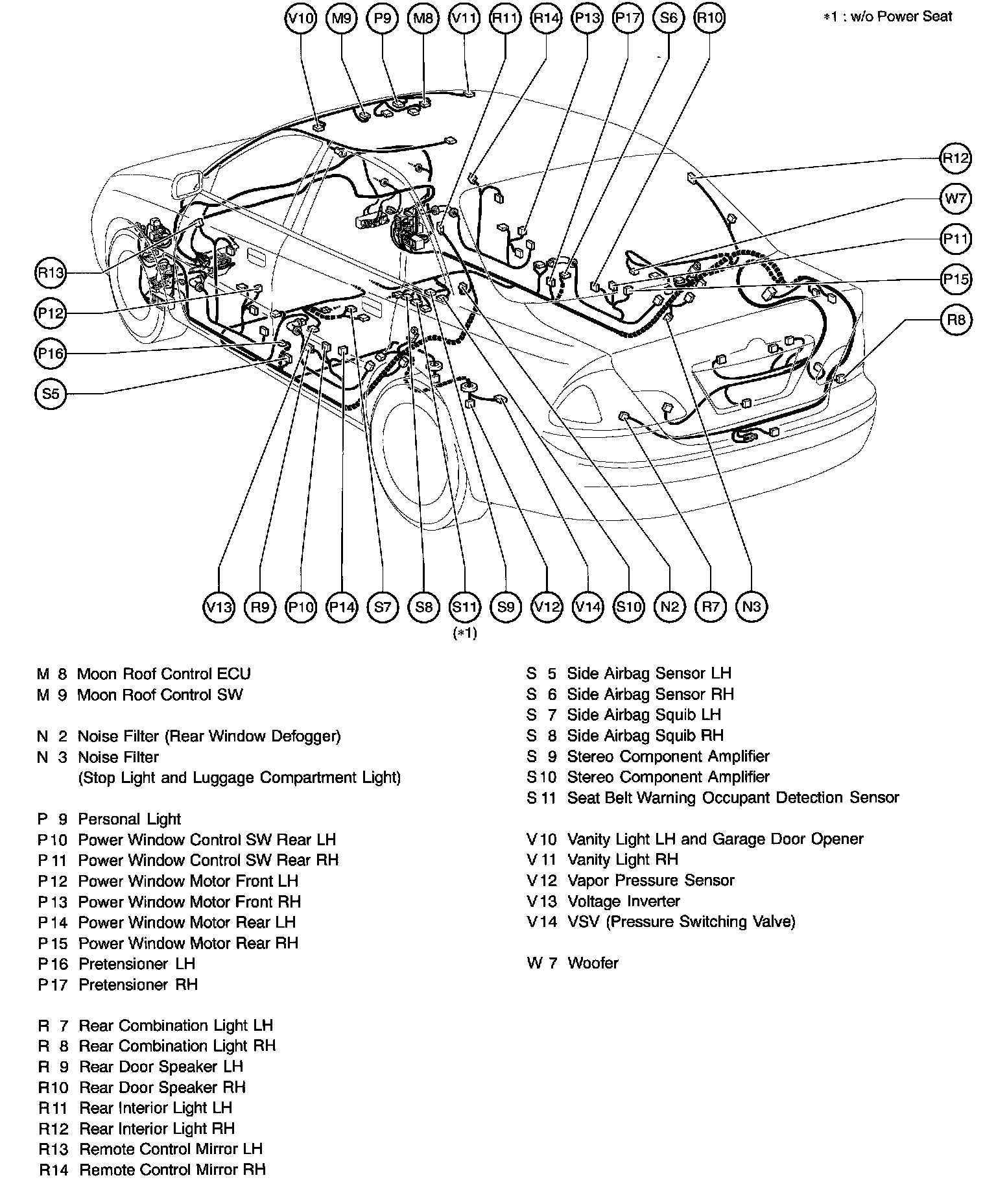

FIG 45

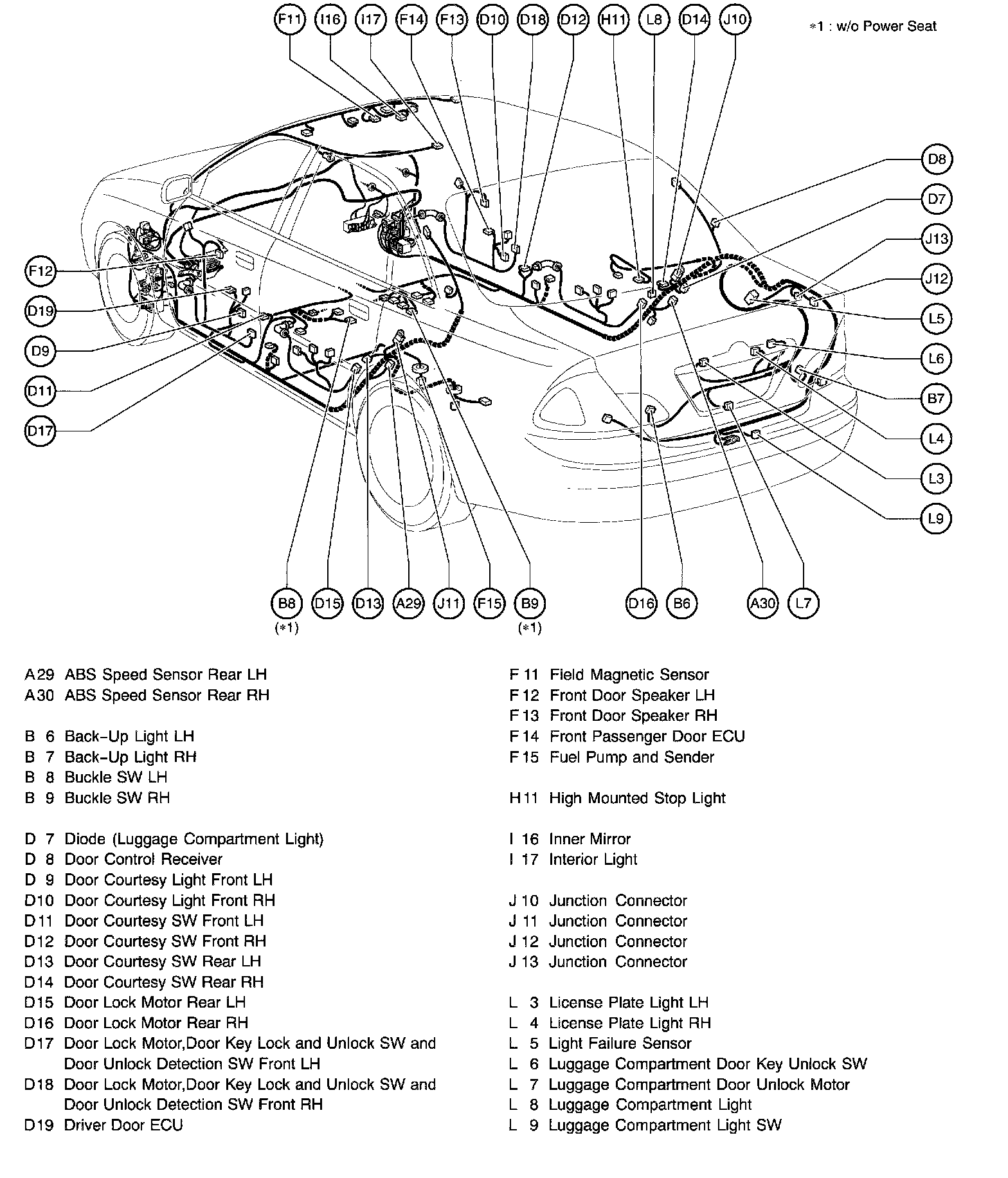

FIG 46

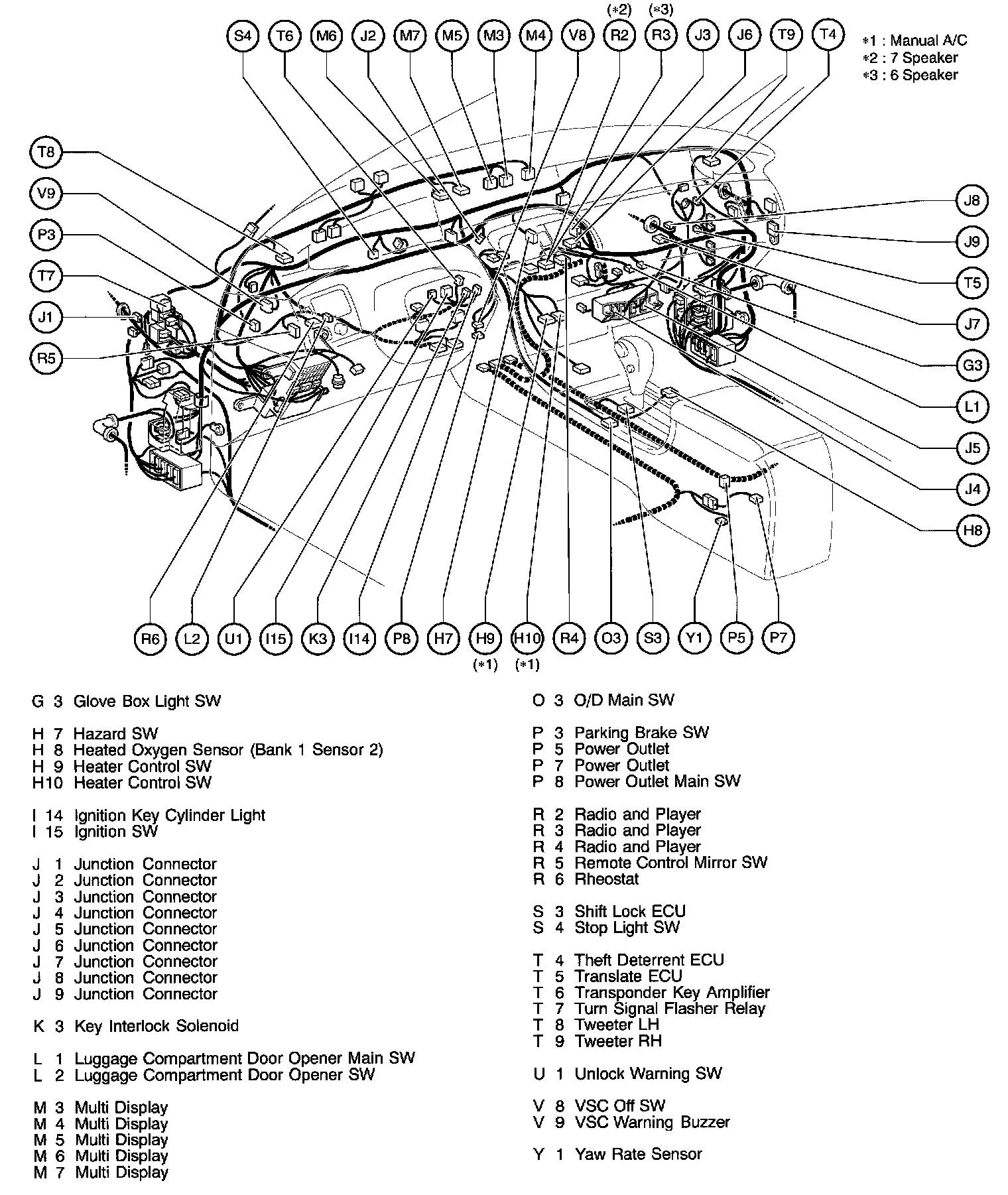

FIG 47




FIG 48




FIG 49




FIG 50




FIG 51
