Home >> Toyota >> 2000 >> Avalon XL V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Exhaust System >> Catalytic Converter >> Locations

Catalytic Converter: Locations

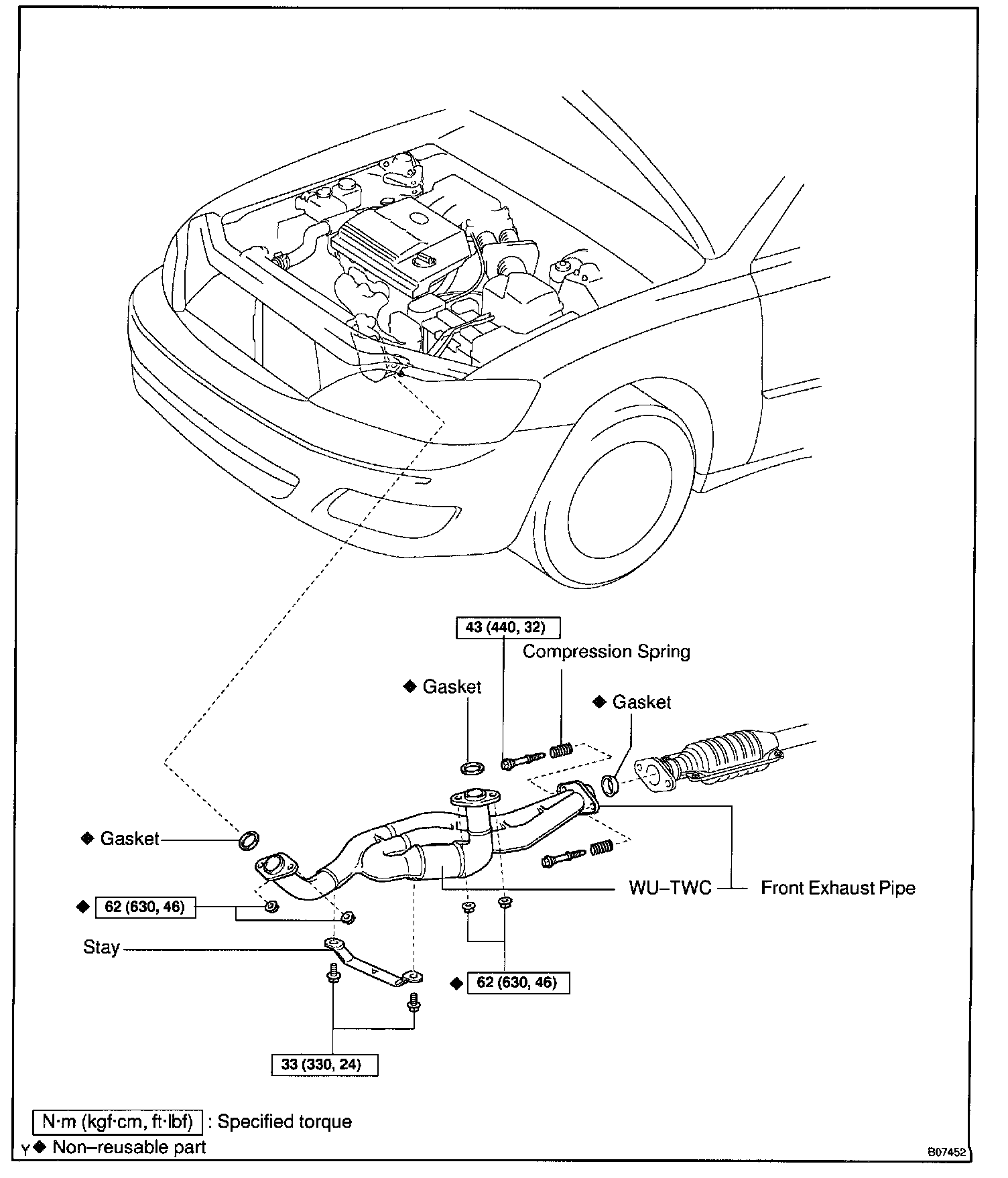

WC - TWC For Bank 1:

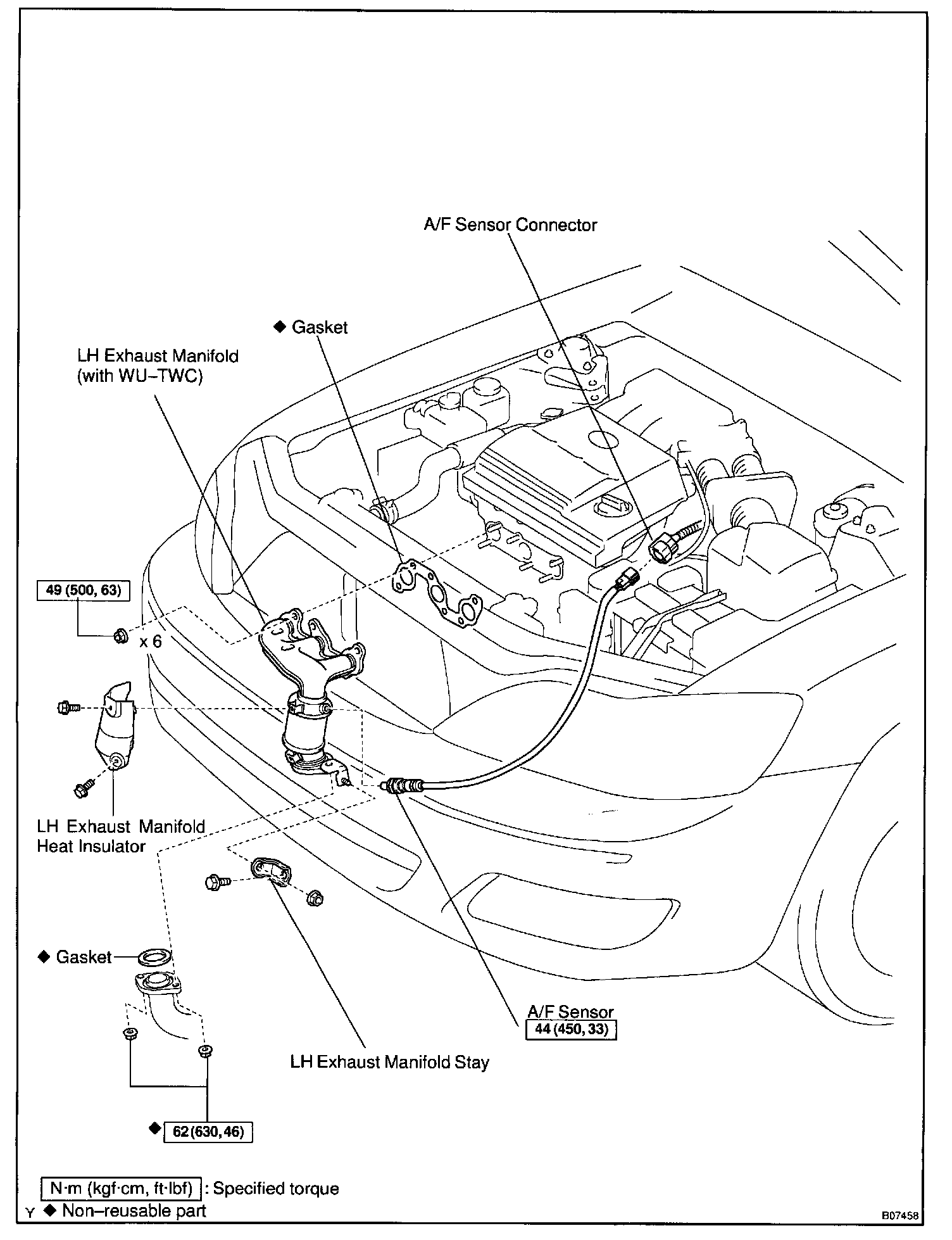

WC - TWC For Bank 2:
