Water Pump

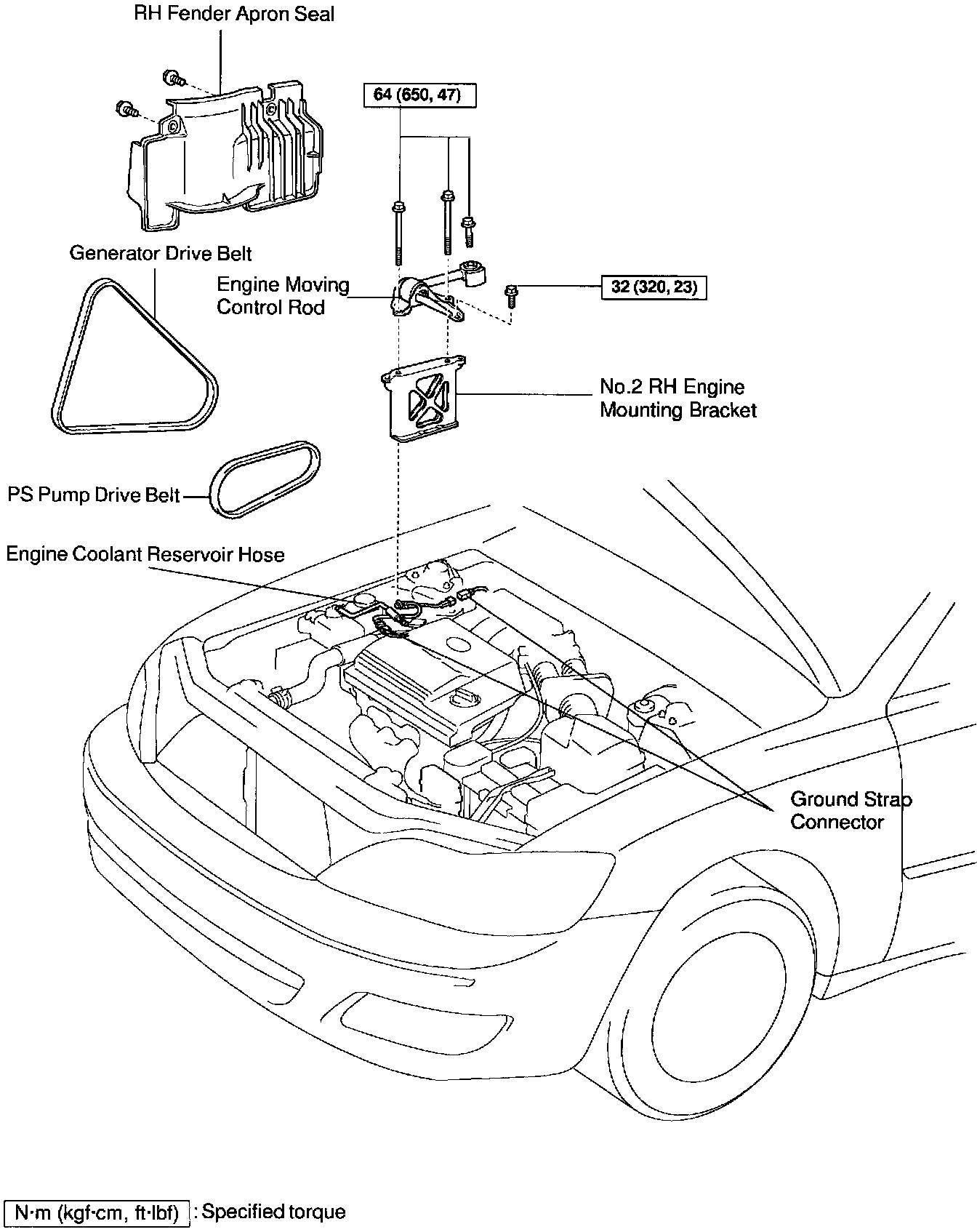

Front Engine Motor Mount And Drive Belts:




Timing Belt Components:




Water Pump:






WATER PUMP COMPONENTS
