Home >> Toyota >> 2000 >> Avalon XL V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Cylinder Block Assembly

Cylinder Block Assembly

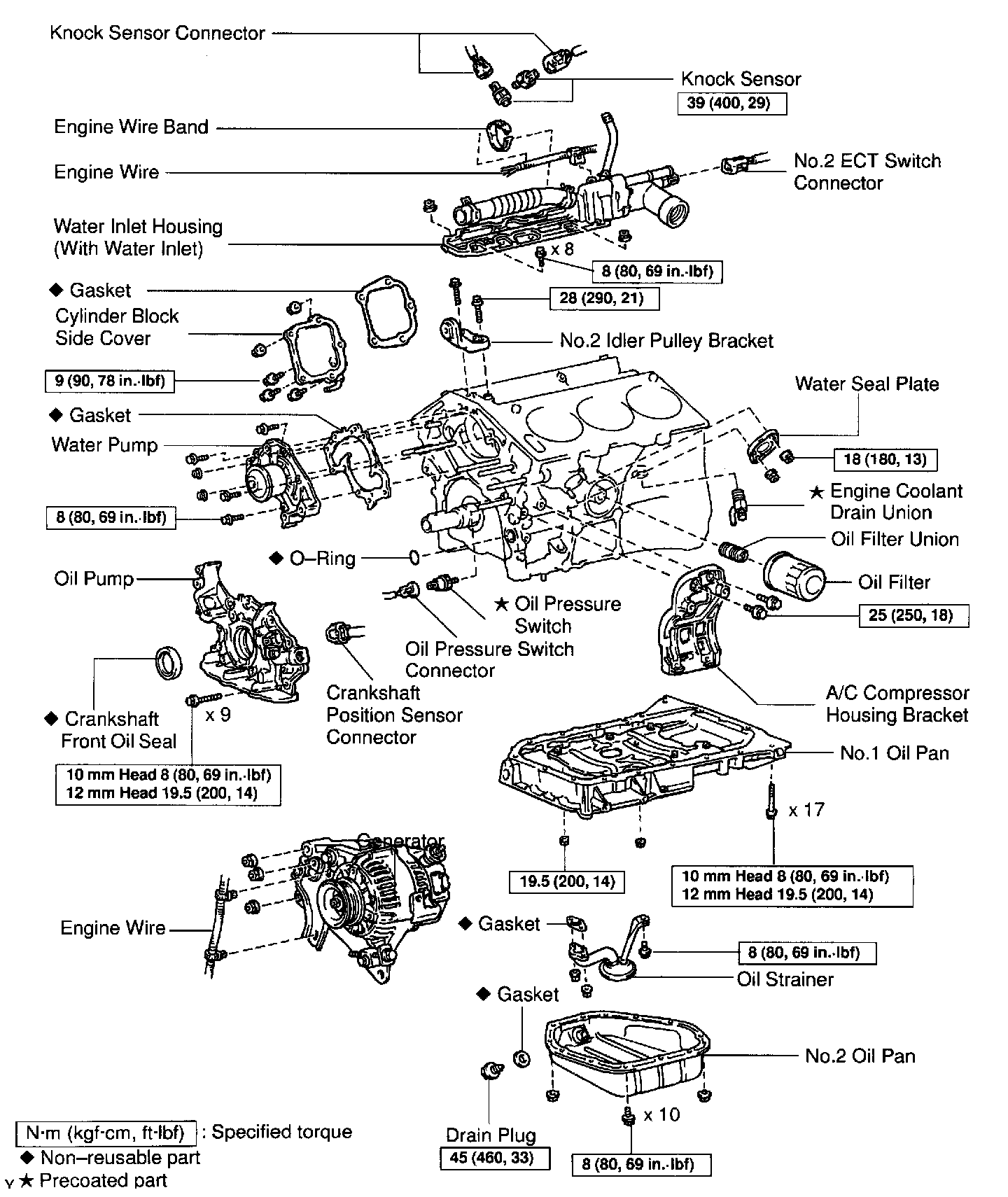

Cylinder Block Exterior Components:

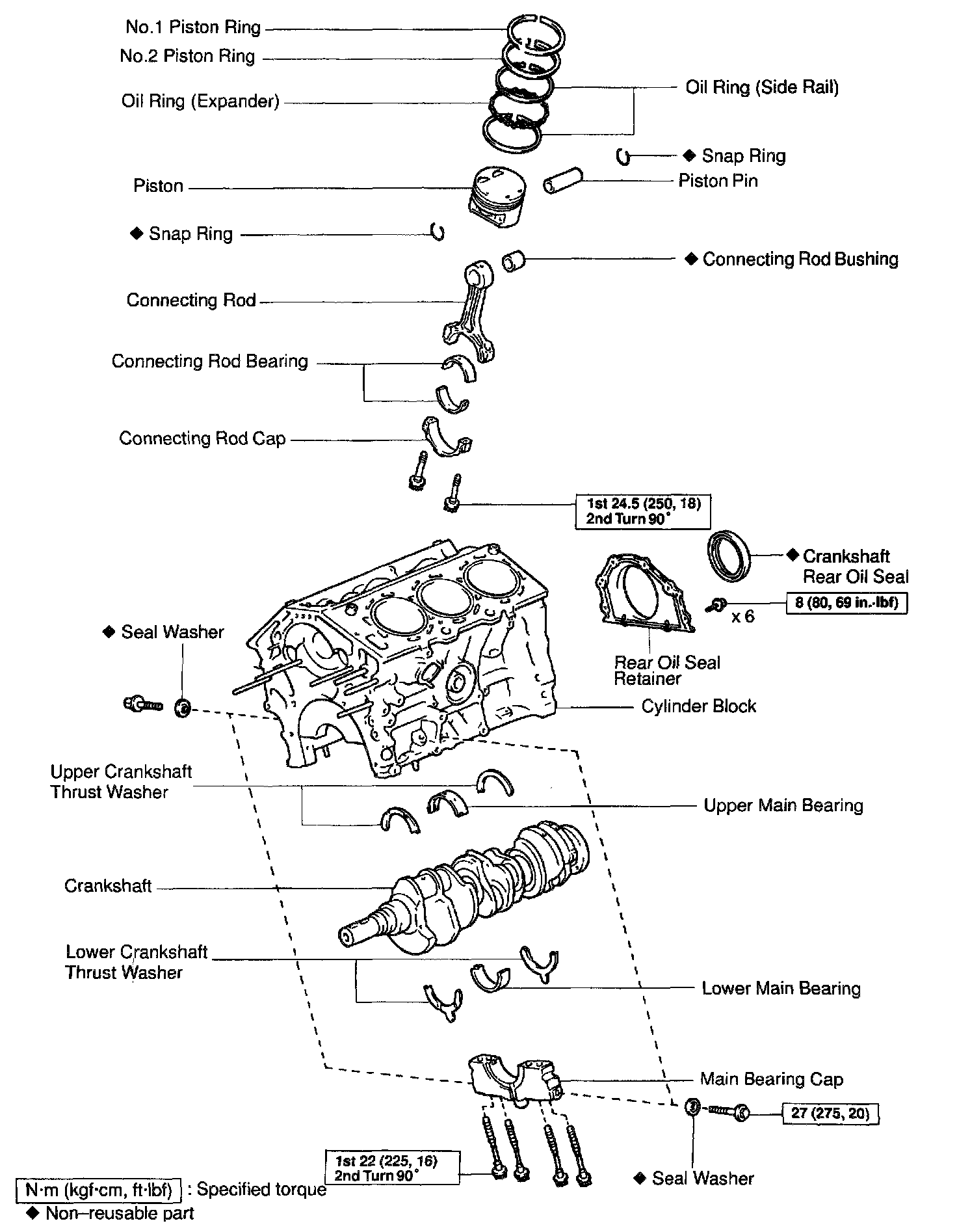

Crankshaft, Connecting Rod And Piston Assemblies:






CYLINDER BLOCK COMPONENTS
