ABS W/EBD & BA & TRAC & VSC System
ABS W/EBD & BA & TRAC & VSC System
Connectors:
Part 1 Of 3:
Part 2 Of 3:
Part 3 Of 3:

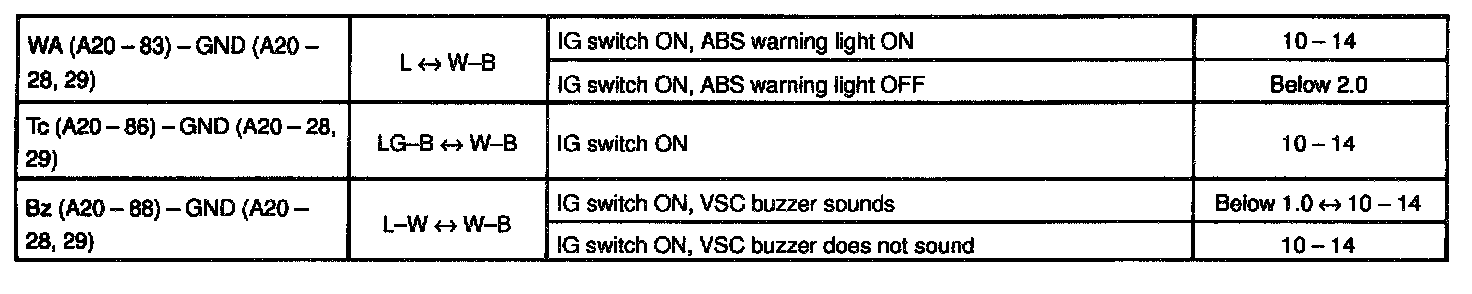

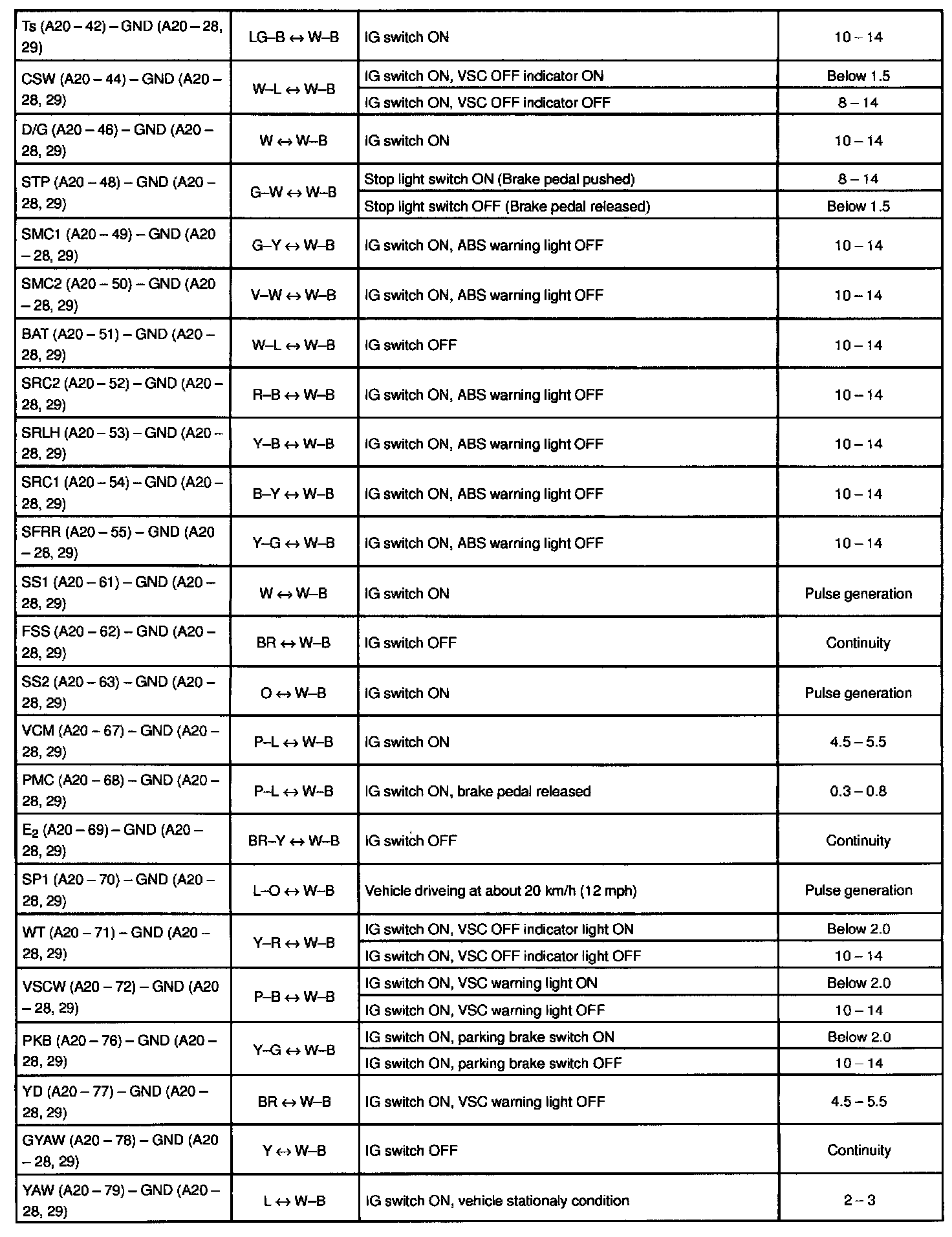

TERMINALS OF ECU
TRANSLATE ECU
