Inspection / Operation

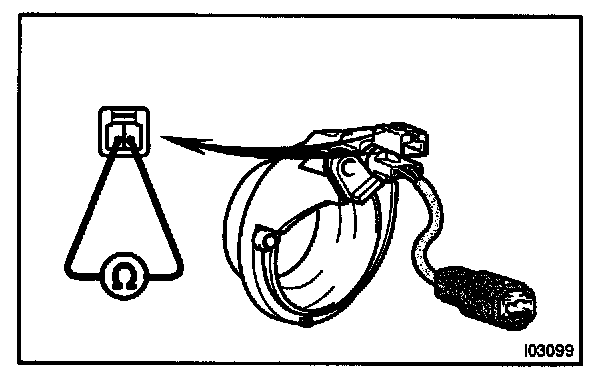

INSPECTION TRANSPONDER KEY COIL CONTINUITY
Check that continuity exists between terminal 1 and 2.
It continuity is not as specified, replace the coil.
