Switch Continuity Inspections

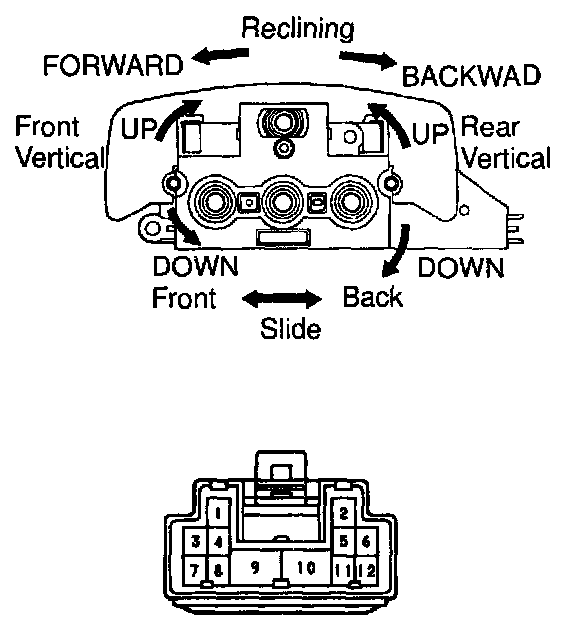

INSPECT POWER SEAT SWITCH CONTINUITY

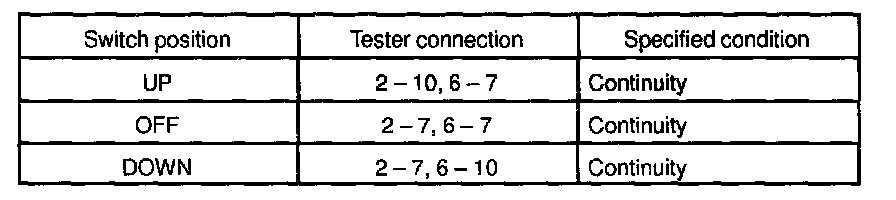

Slide switch

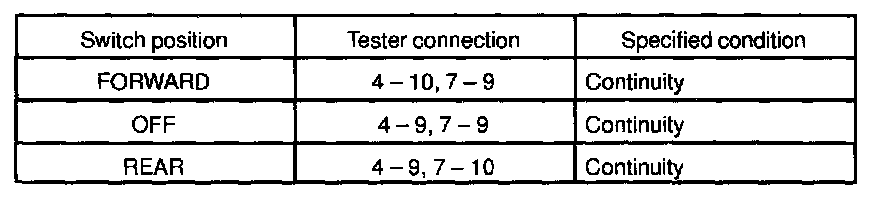

Front vertical switch

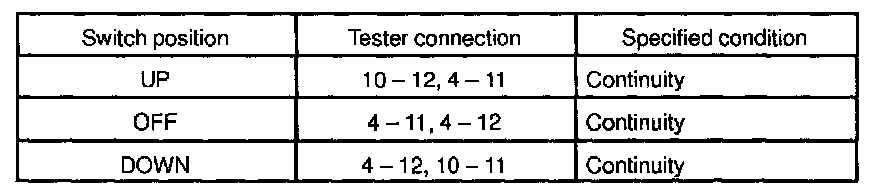

Rear vertical switch

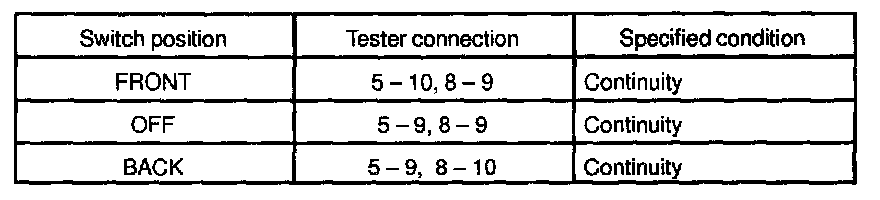

Reclining switch

If continuity is not as specified replace the switch.
