Steering Column

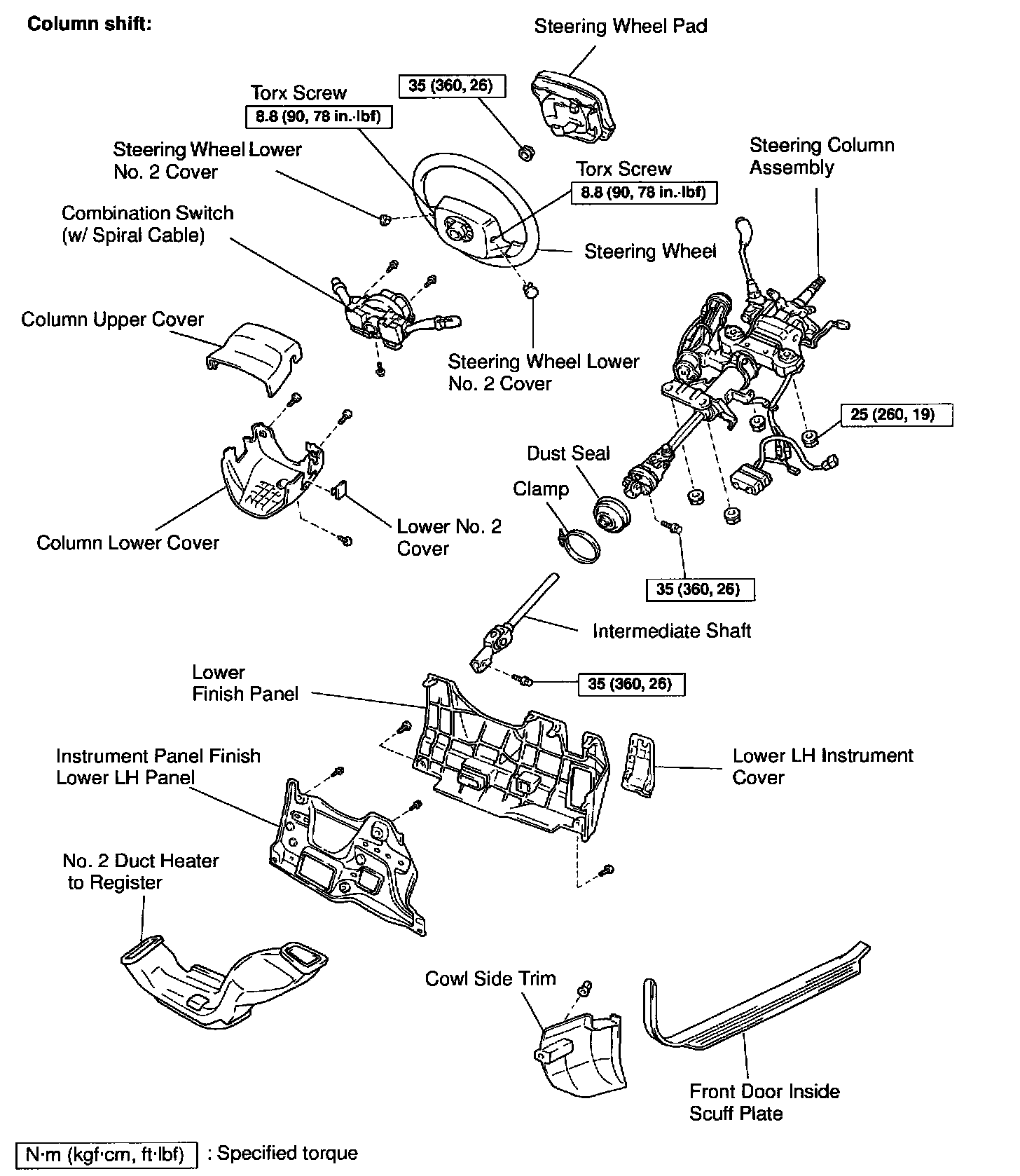

TILT STEERING COLUMN ASSEMBLY AND RELATED COMPONENTS w/COLUMN SHIFT





TILT STEERING COLUMN ASSEMBLY AND RELATED COMPONENTS w/FLOOR SHIFT

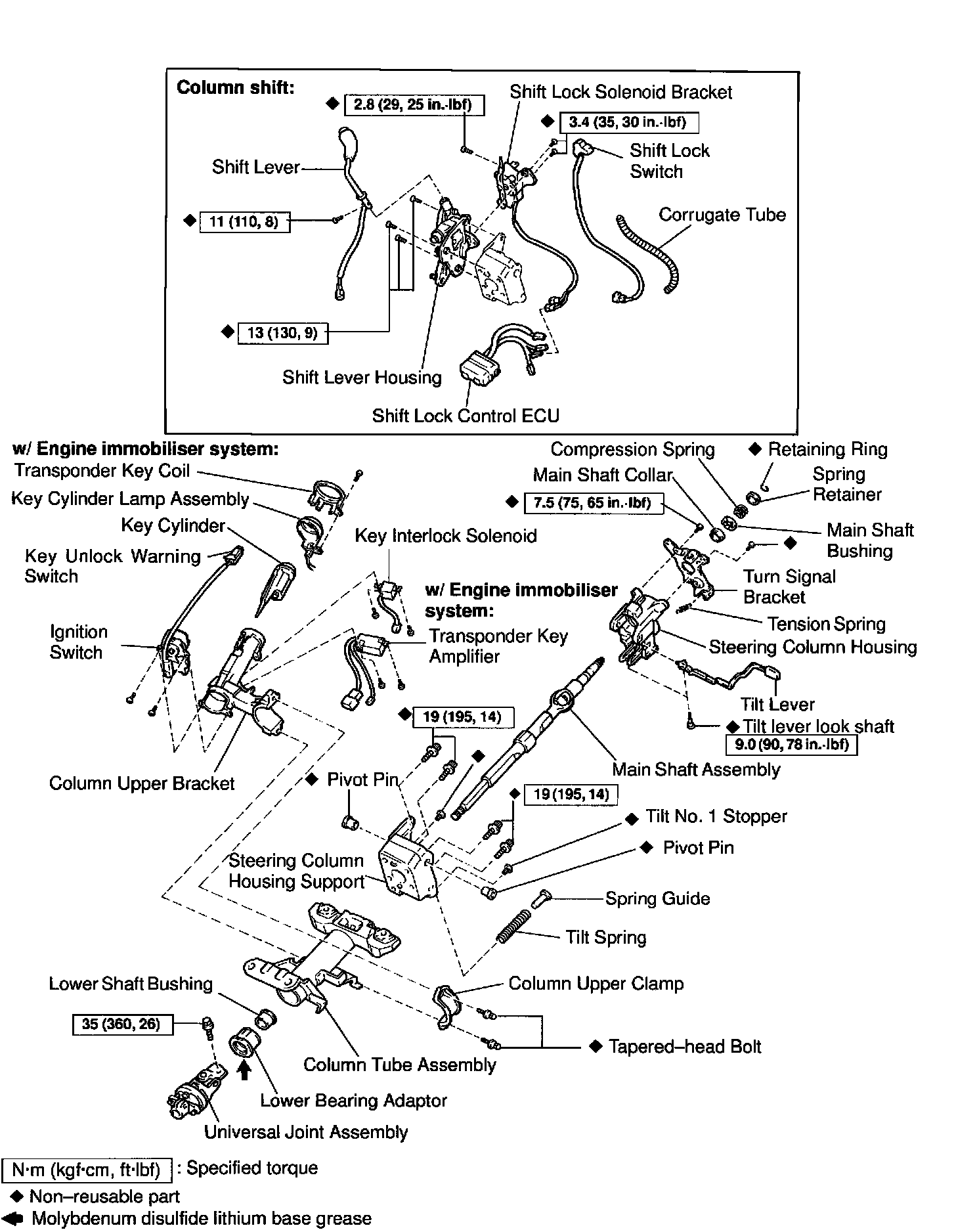

TILT STEERING COLUMN
