Air Door Actuator / Motor: Service and Repair
REMOVAL1. REMOVE AIR INLET SERVOMOTOR
a. Remove these parts:
1. Front door scuff plate RH
2. Cowl side trim RH
3. No.2 finish panel
4. Lower No. 2 finish panel
5. Glove compartment door
6. Glove compartment

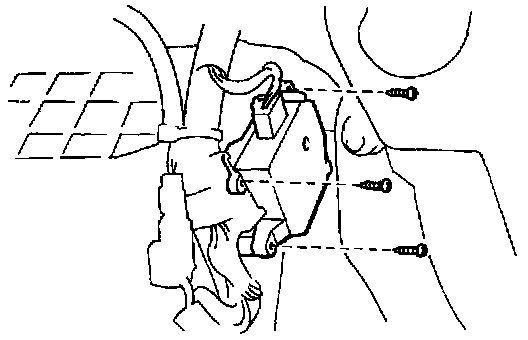

b. Remove the air inlet servomotor.
1. Disconnect the connector.
2. Remove the 3 screws and servomotor.
2. Auto A/C Only:
REMOVE AIR MIX SERVOMOTOR
a. Remove these parts:
1. Front door scuff plate LH
2. Cowl side trim LH
3. Lower finish panel
4. Instrument panel finish lower LH panel
b. Remove the air mix servomotor
1. Disconnect the connector.

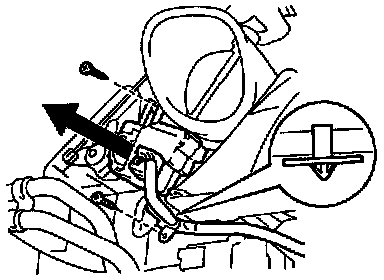

2. Remove the 3 screws and servomotor, then disconnect the water valve control cable.
3. REMOVE AIR OUTLET SERVOMOTOR
a. Remove these parts:
1. Front door scuff plate LH
2. Cowl side trim LH
3. Lower finish panel
4. Instrument panel finish lower LH panel
b. Remove the air outlet servomotor.

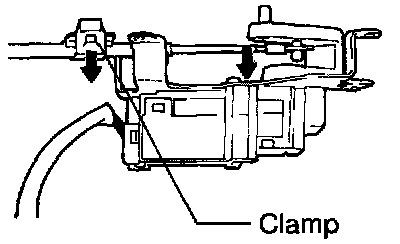

1. Disconnect the wire harness clamp.
2. Disconnect the connector.
3. Remove the 3 screws and servomotor.
INSTALLATION
Installation is in the reverse order of removal.
