DTC 43

DTC 43 Short In Side Squib (RH) Circuit

CIRCUIT DESCRIPTION
The side squib (RH) circuit consists of the airbag sensor assembly and side airbag assembly (RH). It causes the SRS to deploy when the SRS deployment conditions are satisfied.
DTC 43 is recorded when a short is detected in the side squib (RH) circuit.





DETECTING CONDITIONS





WIRING DIAGRAM

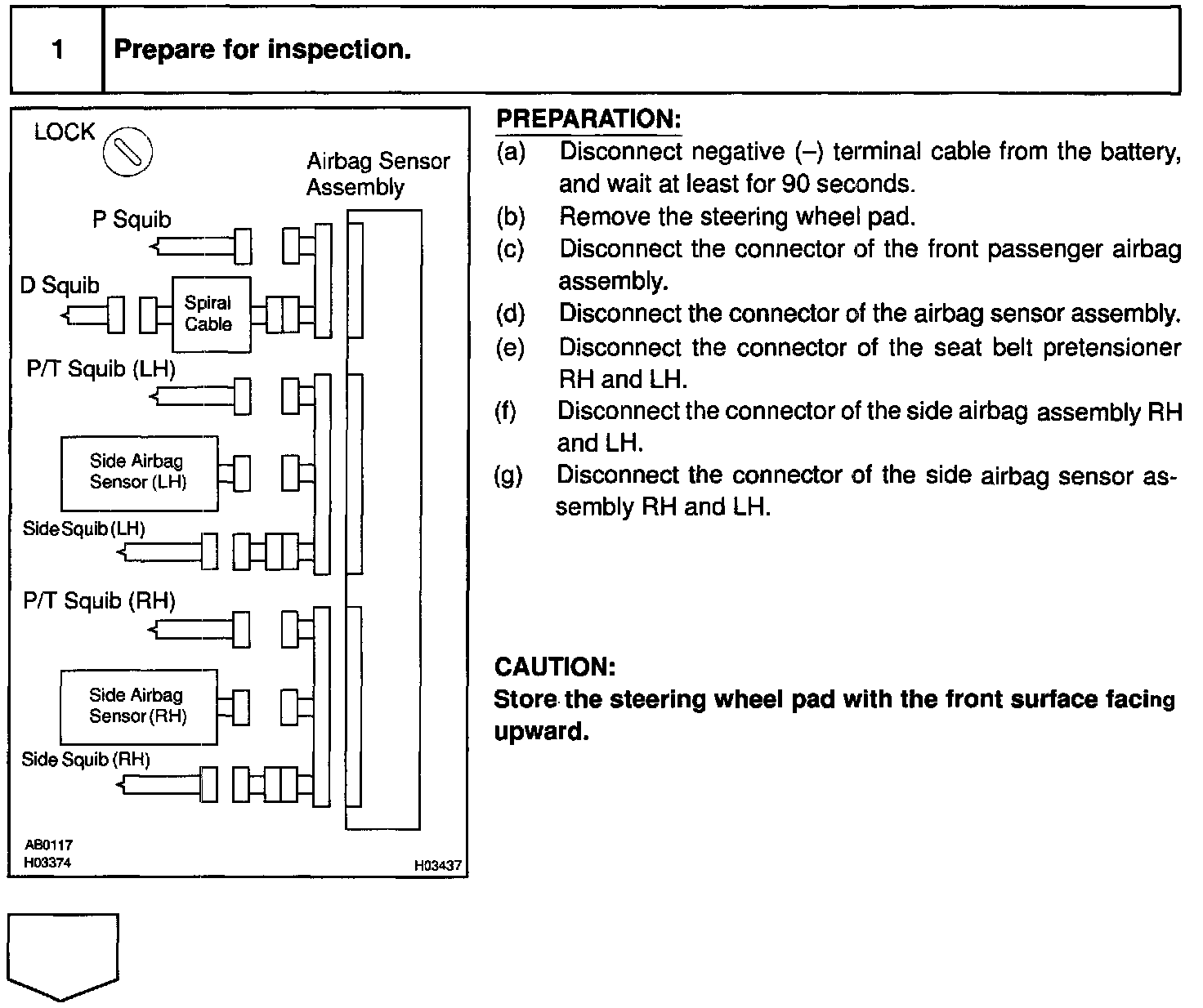

Step 1:

Step 2:

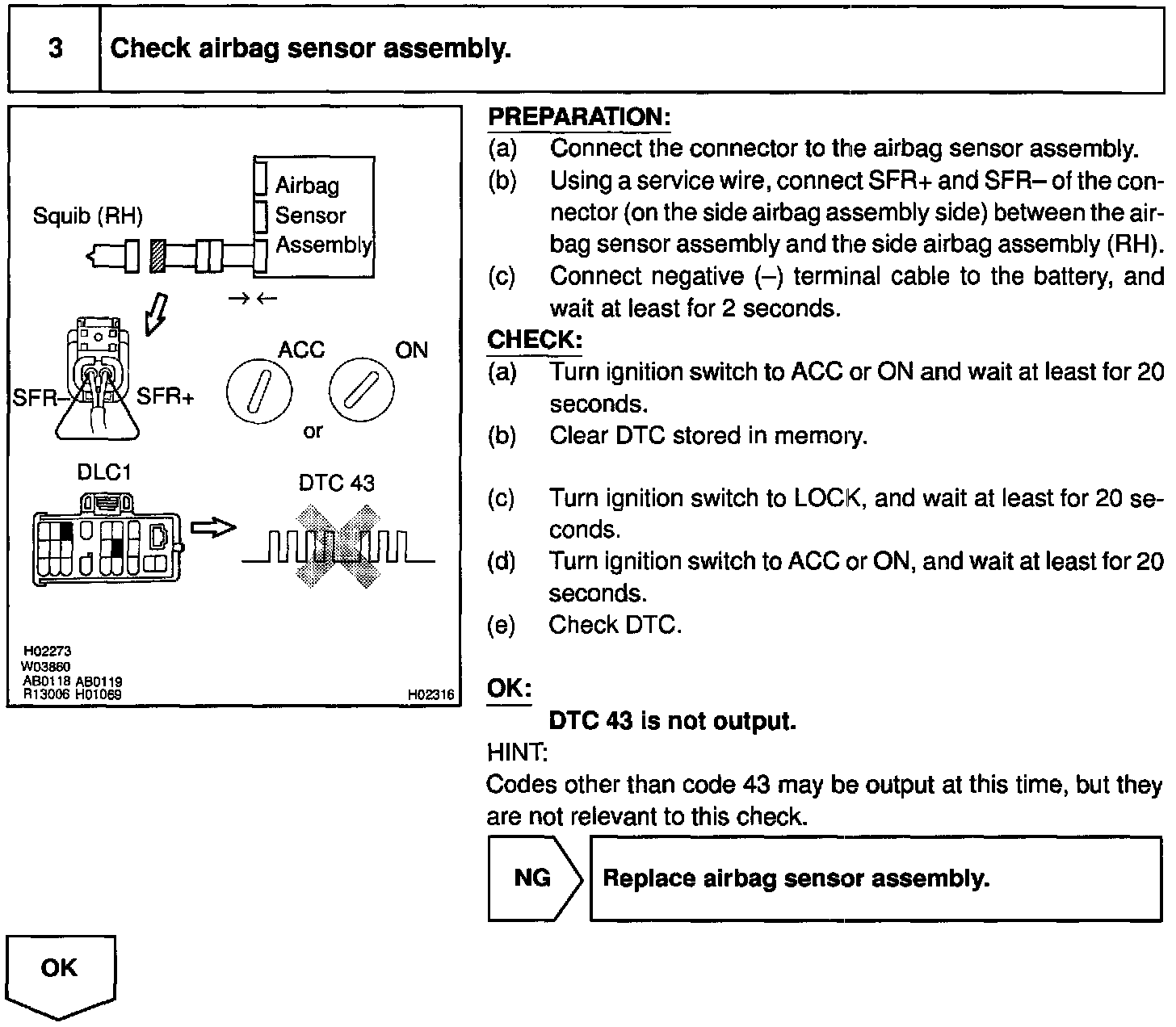

Step 3:

Step 4:

Step 5:

Step 6:

INSPECTION PROCEDURE
