DTC 13

DTC 13 Pump Motor Circuit

CIRCUIT DESCRIPTION
The ABS motor relay supplies power to the ABS pump motor. While the ABS is activated, the ECU switches the ABS motor relay ON and operates the ABS pump motor.

Fail safe function:
If trouble occurs in the ABS motor relay circuit, the ECU cuts off current to the ABS solenoid relay and prohibits ABS control.

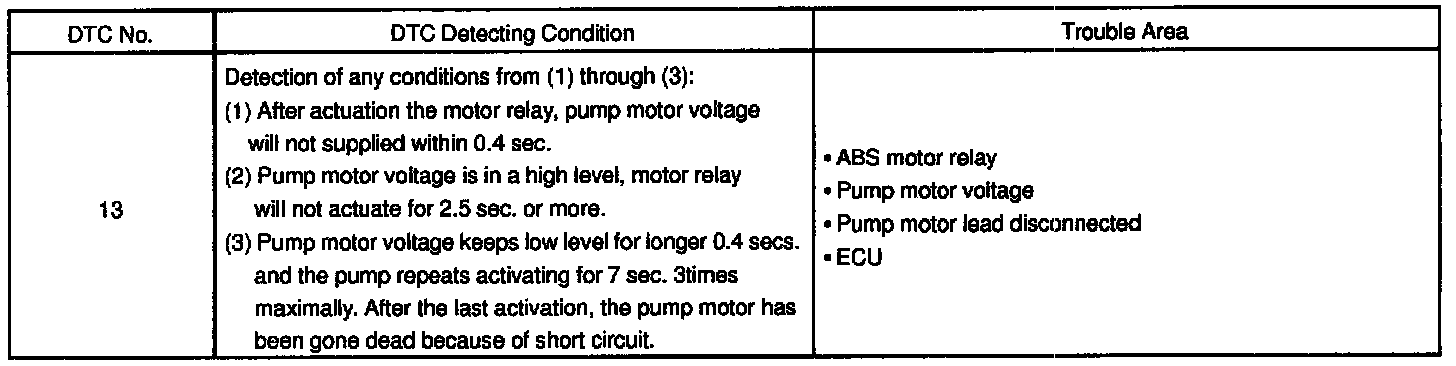

DETECTING CONDITIONS





WIRING DIAGRAM

Step 1:

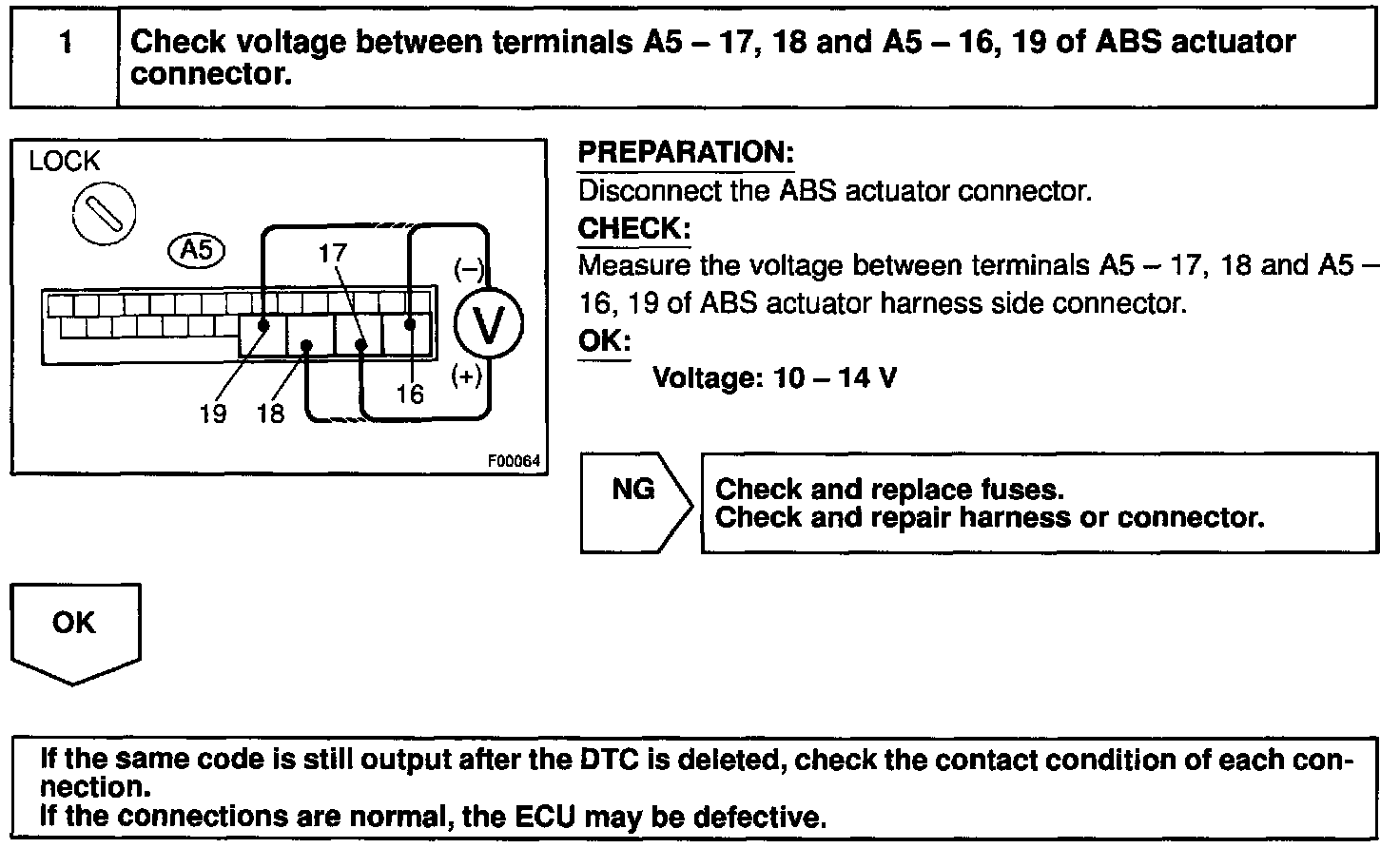

INSPECTION PROCEDURE
