DTC 51

DTC 51 ABS Pump Motor Lock

CIRCUIT DESCRIPTION

Fail safe function:
If trouble occurs in the ABS & TRAC pump motor, the ECU cuts off current to the ABS & TRAC solenoid relay and prohibits ABS control and TRAC control.

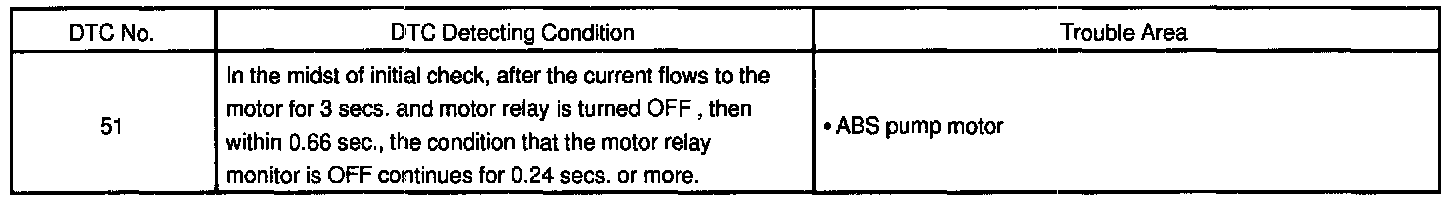

DETECTING CONDITIONS





WIRING DIAGRAM

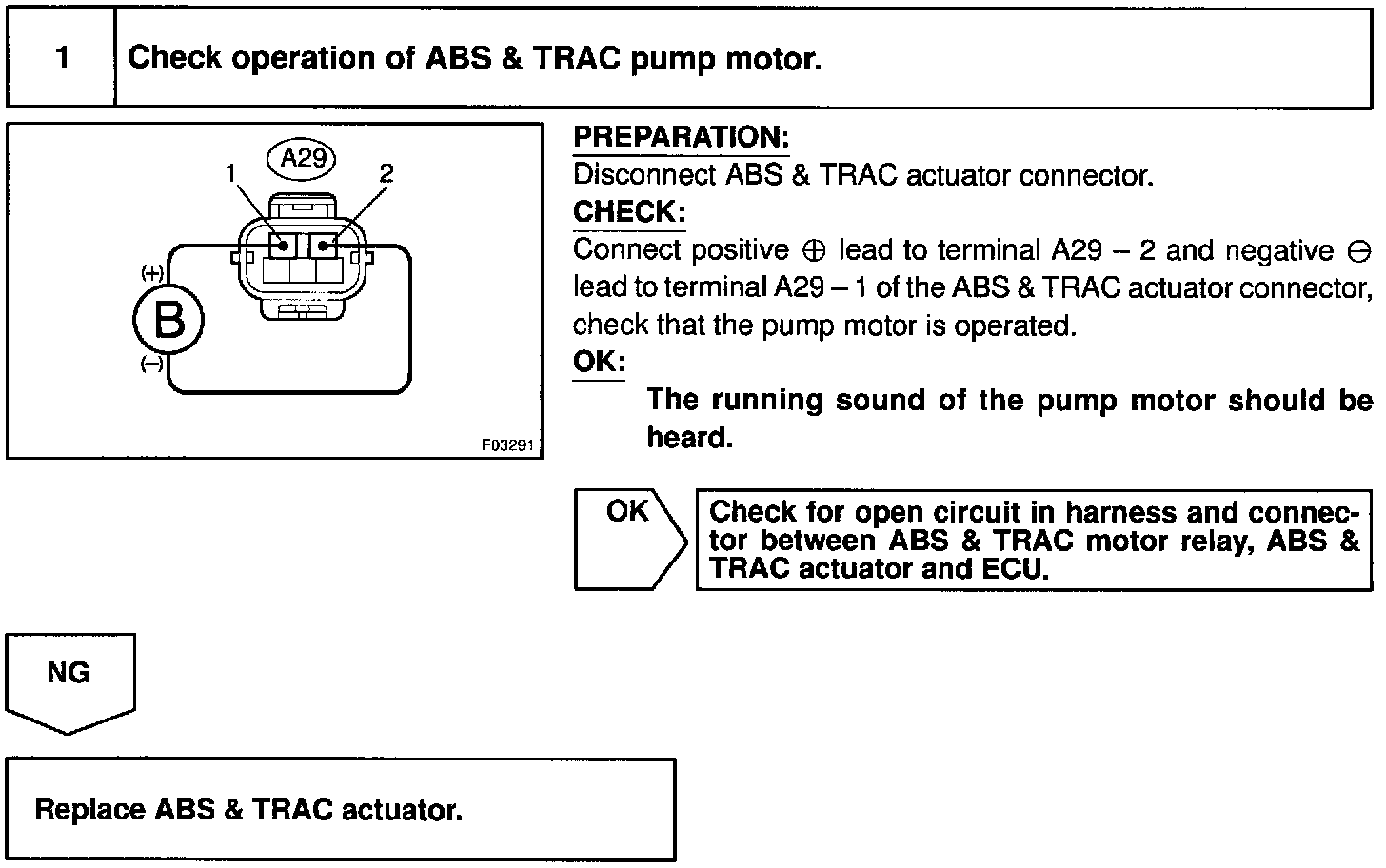

Step 1:

INSPECTION PROCEDURE
