Pinout Values and Diagnostic Parameters

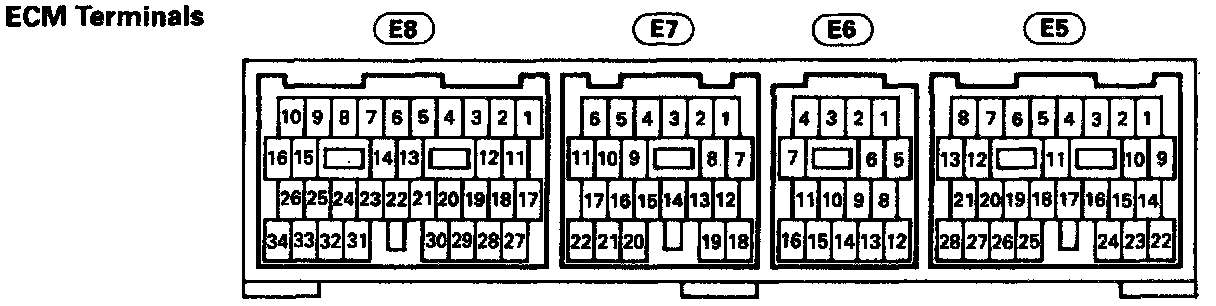

ECM Terminal Identification:

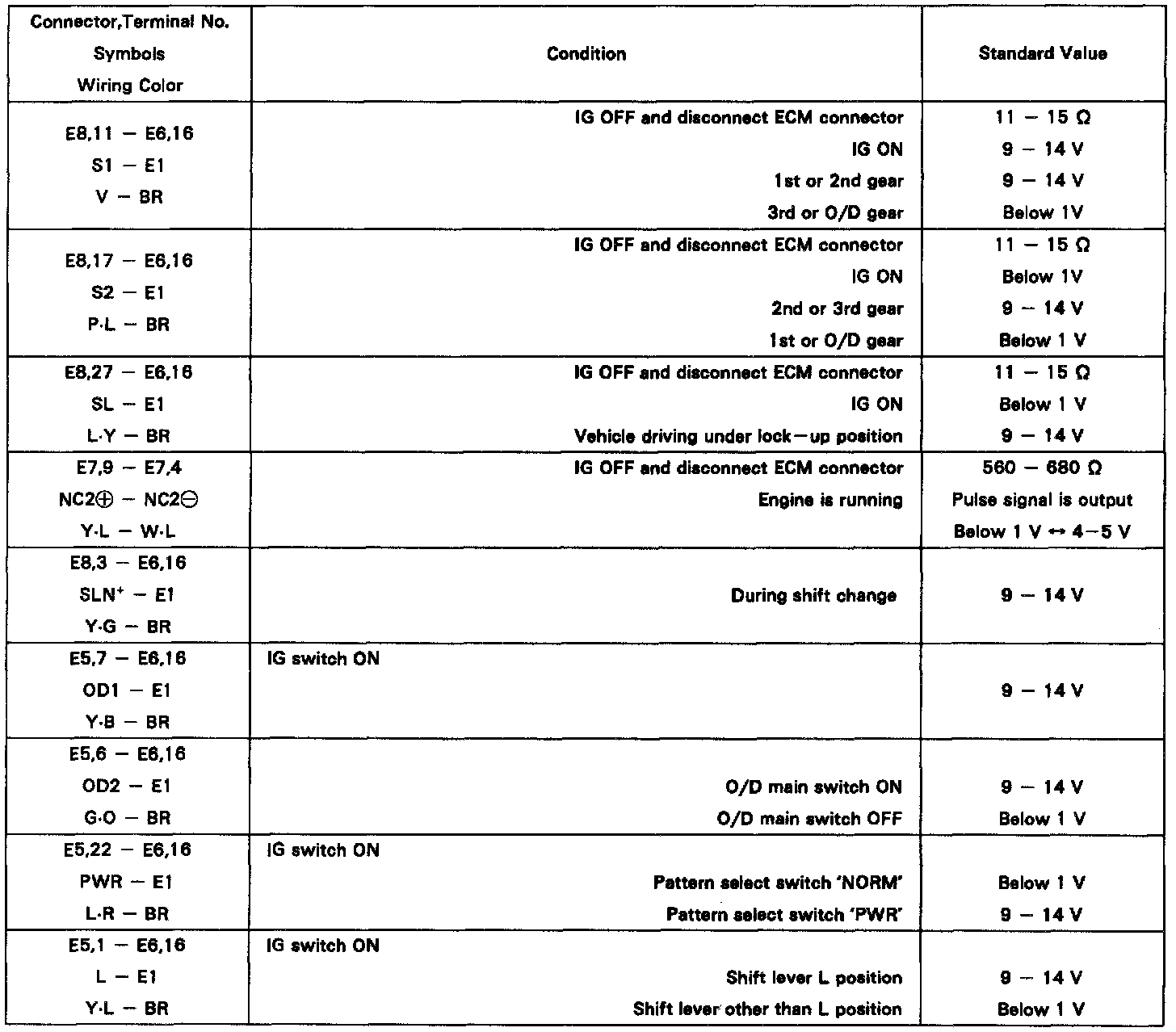

Terminal Values Chart A:

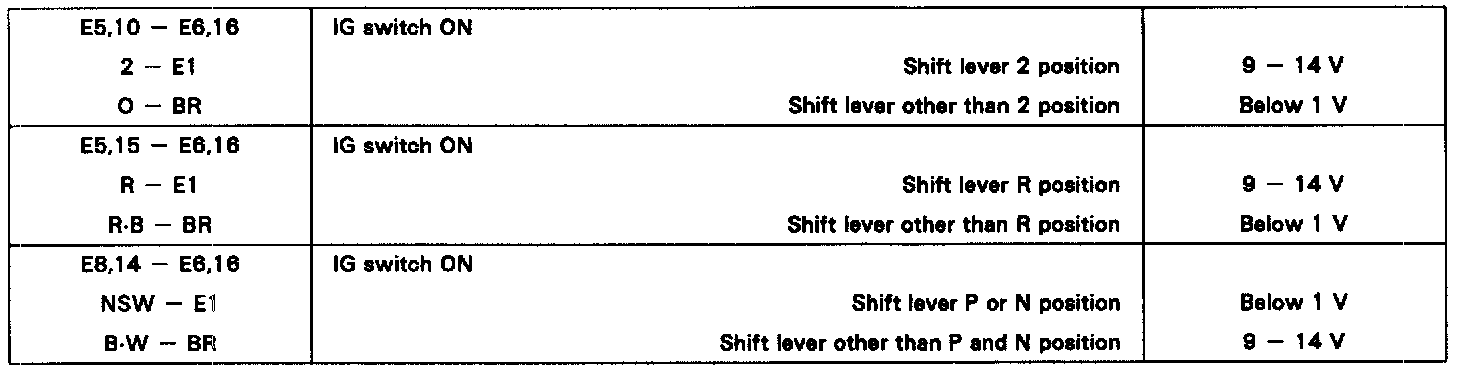

Terminal Values Chart B:
