Camry (Glass Printed Antenna)

Refer to the following to check for antenna cable continuity.

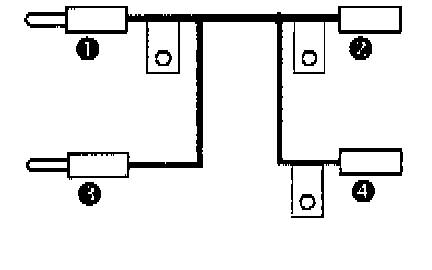

Terminal Connection Normal Condition
(1) - (2) Continuity

(3) - (4) Continuity





NOTE:

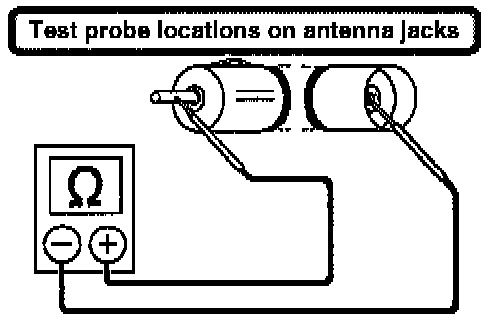

Measure continuity from center contact to center contact as shown in the illustration.

Refer to the following illustrations to check proper grounding of the antenna cable and choke coil.

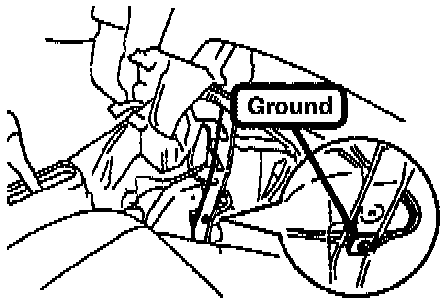

1. Check for a good antenna cable ground at the center brace in the center console area.

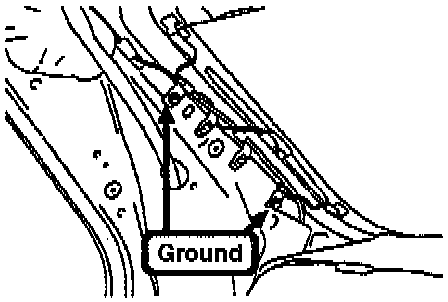

2. Check for a good antenna cable ground at the right C-Pillar area.

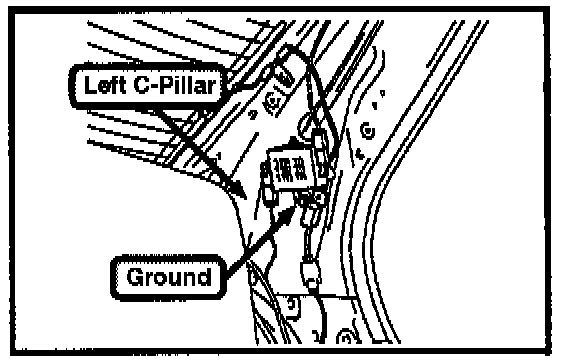

3. Check for a good choke coil ground at the left C-Pillar area.
