Disassembly

1. Remove coil spring

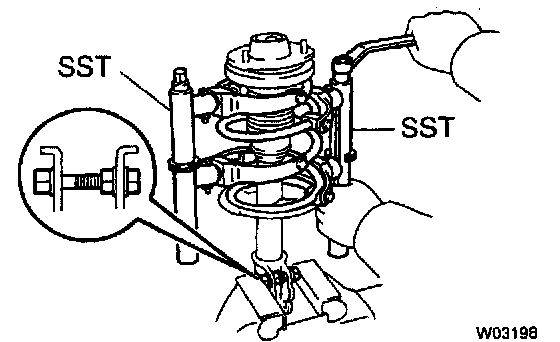

a. Install 2 nuts and a bolt to the bracket at the lower portion of the shock absorber and secure it in a vise.





b. Using Special Service Tool (SST) 09727 - 30021, compress the coil spring.

CAUTION:
- When holding the shock absorber with the coil spring removed, do not hold it by the spring lower seat. Also, do not knock the spring lower seat.
- Do not use an impact wrench. It will damage the SST.

NOTE:
- Use 2 of the same type of SST.





c. Using SST 09729 - 22031 to hold the suspension support, remove the nut.
d. Remove the following parts from the shock absorber:
- Suspension support
- Bearing
- Spring upper seat
- Upper insulator
- Coil spring
- Lower insulator and spring bumper





2. Inspect front shock absorber.

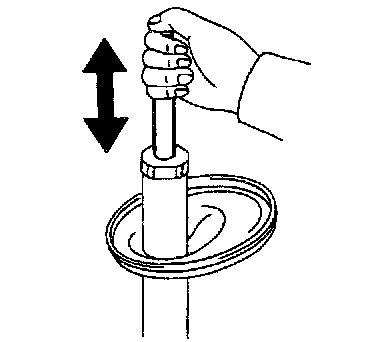

a. Compress and extend the shock absorber rod.
b. Check that there is no abnormal resistance or unusual operation sounds.





3. Dispose of front shock absorber, if needed.
a. Fully extend shock absorber rod.
b. Drill hole to remove gas from cylinder.

CAUTION:
- Drill a hole between the lines, as shown in image.
- The gas coming out is harmless, but be careful of chips which may fly up when drilling.
